Открытый узел

HEAVY DUTY HIGH CAPACITY BUCKET

HEAVY DUTY HIGH CAPACITY BUCKET

HEAVY DUTY HIGH CAPACITY BUCKET

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

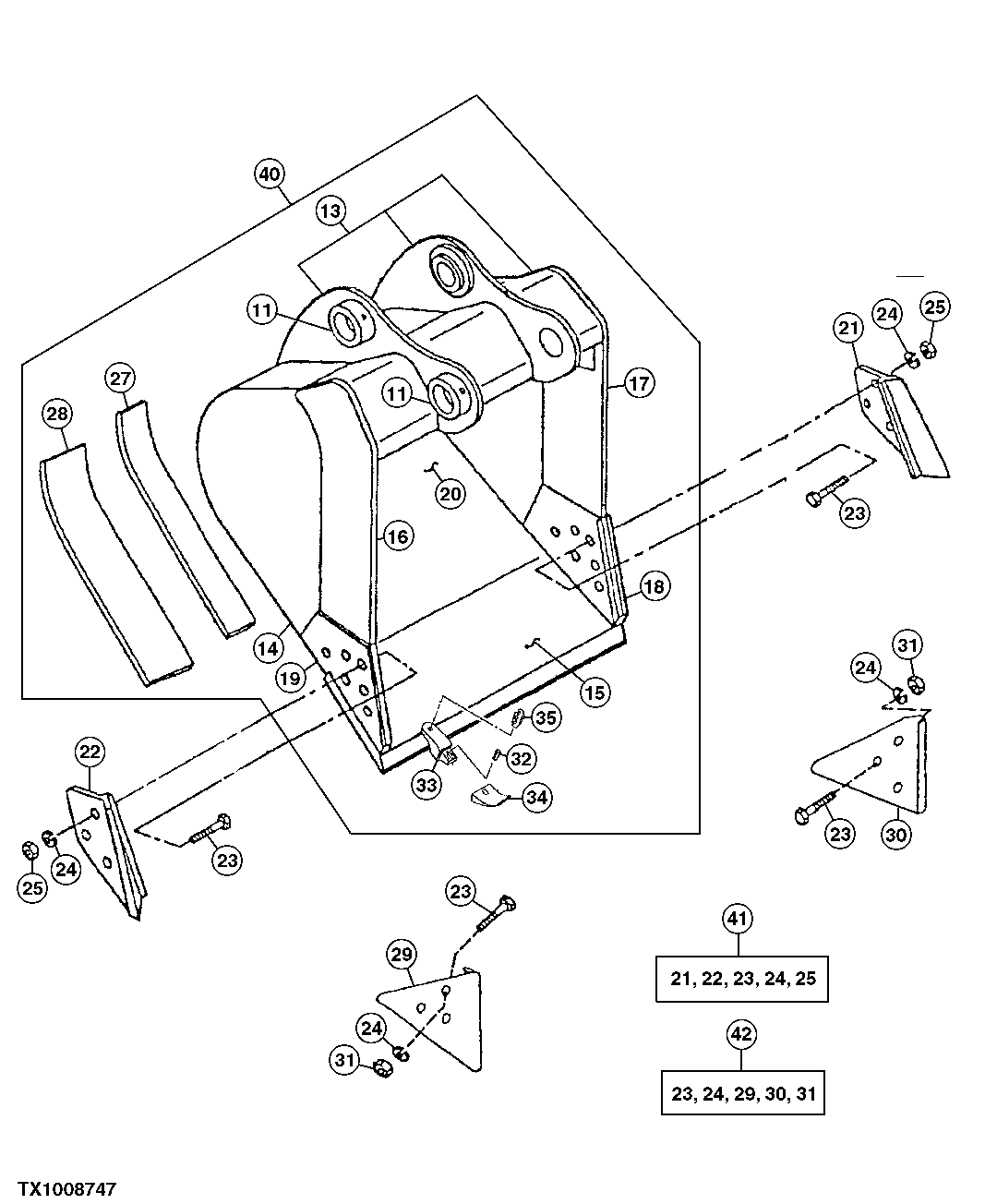

HEAVY DUTY HIGH CAPACITY BUCKET

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
11	TH104509	2	Bushing	Locking Collar
13	C607480	1	Pivot	(ORDER FROM CENTRAL FABRICATORS) Bucket Ear Blank Assembly
14	300167	2	Plate	(ORDER FROM CENTRAL FABRICATORS) (RH/LH)
15	-	1	Part 4	(CTL), (ORDER AT131090)
15	C252567	1	Cutting Edge	(ORDER FROM CENTRAL FABRICATORS) Use With 36 in. Bucket, (CTL)
16	300159	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) Upper, (RH)
17	300160	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) Upper, (LH)
18	300158	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) Insert, (LH)
19	300157	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) Insert, (RH)
20	600118	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (24 INCH)
20	600119	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (30 INCH)
20	600120	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (36 INCH)
20	600121	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (42 INCH)
20	600122	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (48 INCH)
21	-	1	Part 15	(LH), (SUB AT131085)
22	-	1	Part 16	(RH), (SUB AT131085)
23	09H1771	6	Bolt	7/8" X 3"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
27	300156	1	Bar	(ORDER FROM CENTRAL FABRICATORS) Inner Wear
28	306452	2	Bar	(ORDER FROM CENTRAL FABRICATORS) Outer Wear
29	-	1	Part 22	Wear, (SUB AT167876)
30	-	1	Part 23	Wear, (SUB AT167876)
31	14H1044	6	Nut	7/8"
32	TK290	1	Pin	-
33	T158X290	1	Bucket Tooth Adapter	-
34	TF290	1	Tooth	-
35	TK130	1	Shaft Key	-
40	-	1	Part 29	24 in., 0.73 yd³, 4 Teeth, ( AT332693 NLA) (SUB FOR AT163616 ) (SUB AT339138)
40	-	1	Part 30	30 in., 0.95 yd³, 4 Teeth, ( AT332695 NLA) (SUB FOR AT163617 ) (SUB AT339140)
40	-	1	Part 31	36 in., 1.16 yd³, 5 Teeth, ( AT332696 NLA) (SUB FOR AT163618 ) (SUB AT339142)
40	-	1	Part 32	42 in., 1.38 yd³, 5 Teeth, ( AT332697 NLA) (SUB FOR AT163620 ) (SUB AT339144)
40	-	1	Part 33	48 in., 1.6 yd³, 6 Teeth, ( AT332698 NLA) (SUB FOR AT199358 ) (SUB AT339146)
41	-	1	Part 34	Cutting Edge, ( AT131085 NLA
42	-	1	Part 35	( AT167876 NLA) , Wear
