GENERAL PURPOSE HIGH CAPACITY BUCKET (SEE FOOTNOTE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	-	1	Part 1	(1 INCH HEAD THICKNESS) ( AT131083 NLA)
5	R48685	1	Dowel Pin	-
6	TH104512	9	Washer	-
7	TH104513	1	Shim	-
8	TH104514	1	Spacer	-
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH104509	2	Bushing	-
13	C607480	1	Pivot	(ORDER FROM CENTRAL FABRICATORS) Bucket Ear Blank Assembly
14	300536	2	Plate	(ORDER FROM CENTRAL FABRICATORS) (RH/LH)
15	-	1	Part 11	(CTL), (MAKE FROM AT131090)
16	300534	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (RH), Upper
17	300535	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (LH), Upper
18	300482	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) Left Insert
19	300481	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) Right Insert
20	600321	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (48 INCH)
20	600320	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (42 INCH)
20	600318	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (30 INCH)
20	600319	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (36 INCH)
21	-	1	Part 20	(SUB AT131080)
22	-	1	Part 21	(SUB AT131080)
23	09H1770	6	Bolt	7/8" X 2-1/2"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
27	300524	1	Bar	(ORDER FROM CENTRAL FABRICATORS) Inner Wear
28	306974	2	Bar	(ORDER FROM CENTRAL FABRICATORS) Outer Wear
29	-	1	Part 27	Wear, (SUB AT167874)
30	-	1	Part 28	Wear, (SUB AT167874)
31	14H1044	6	Nut	7/8", 22.225 MM (7/8")
40	-	1	Part 30	(AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (WHOLE GOODS) (30 INCH/0.95 CUBIC YARD) ( AT163607 NLA), (SUB AT332684)
40	-	1	Part 31	(AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (WHOLE GOODS) (36 INCH/1.16 CUBIC YARD) ( AT163608 NLA), (SUB AT332685)
40	-	1	Part 32	(AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (WHOLE GOODS) (42 INCH/1.38 CUBIC YARD) ( AT163609 NLA), (SUB AT332686)
40	-	1	Part 33	(AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (WHOLE GOODS) (48 INCH/1.60 CUBIC YARD) ( AT163610 NLA), (SUB AT332687)
90	-	1	Part 34	Side Cutter Kit, ( AT131080 NLA)
91	-	1	Part 35	Edge Protector, ( AT167874 NLA)

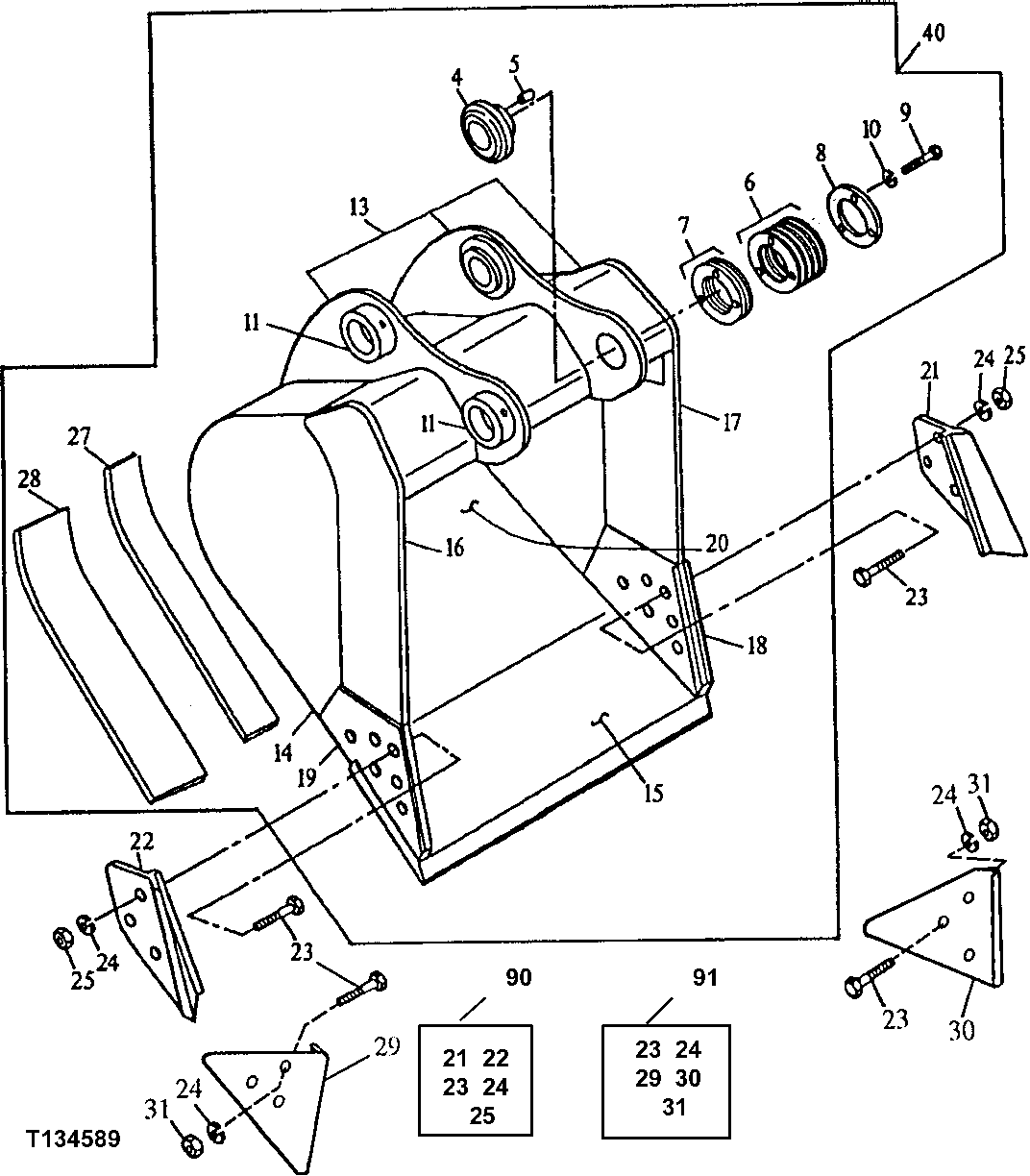

GENERAL PURPOSE HIGH CAPACITY BUCKET (SEE FOOTNOTE)
