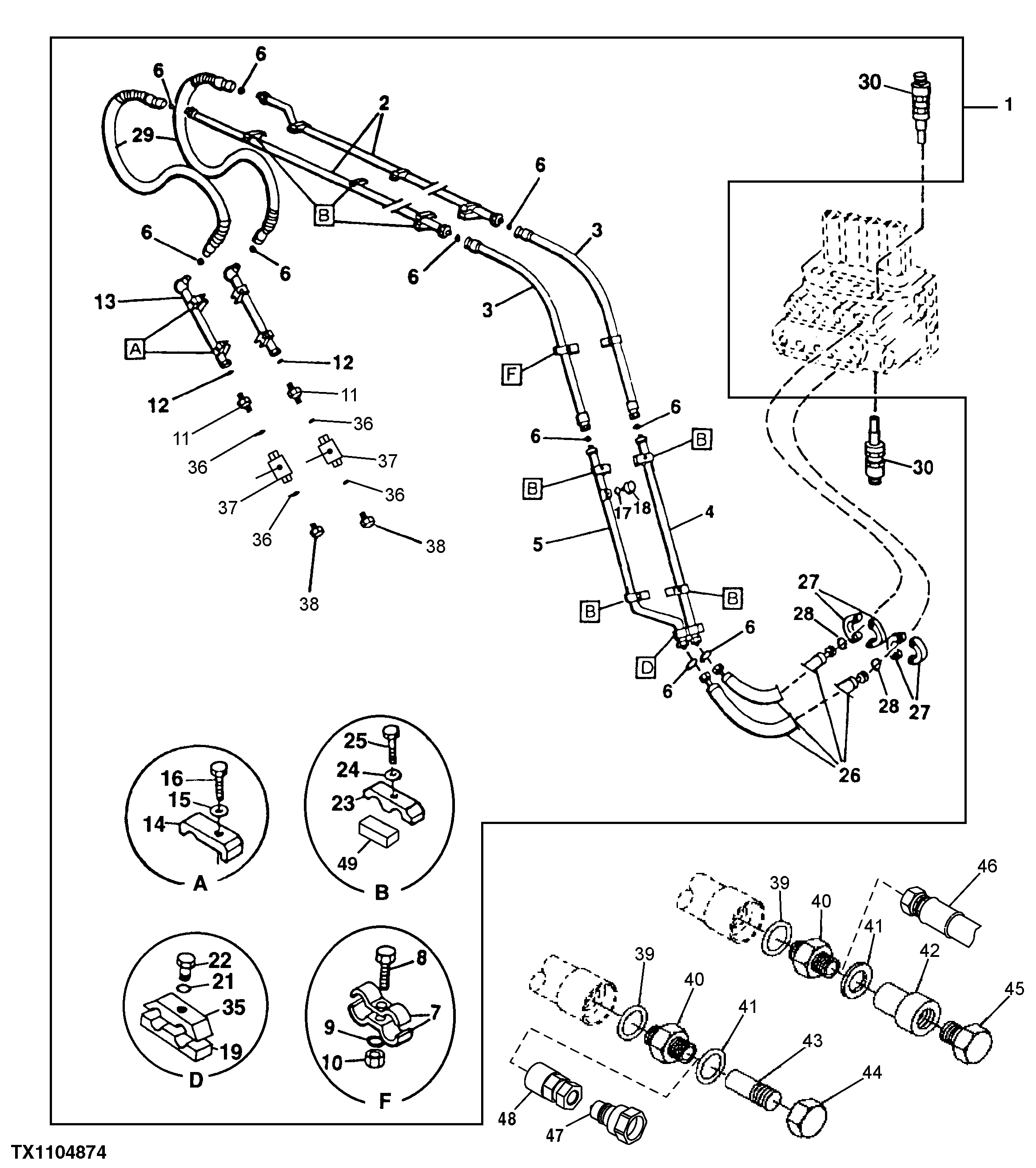

AUXILIARY HYDRAULIC HOSES AND FITTINGS (FIELD KIT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Auxiliary Hydraulic Line Kit, (WHOLE GOODS) (AT196890 NLA)
2	AT159786	2	Oil Line	-
3	AT159782	2	Hydraulic Hose	36.5252" X 1905 mm (75") X 36.5252"
4	AT179566	1	Oil Line	-
5	AT179567	1	Oil Line	-
6	T76938	10	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
7	4202103	4	Clamp	(SUB FOR TH108302)
8	19M7361	2	Cap Screw	M12 X 50
9	12H301	2	Lock Washer	1/2"
10	14M7275	2	Nut	M12
11	38H1196	2	Adapter Fitting	-
12	T78612	2	O-Ring	-
13	AT159934	2	Oil Line	-
14	4190127	4	Clamp	(SUB FOR TH108313)
15	12H301	4	Lock Washer	1/2"
16	19M7753	4	Cap Screw	M12 X 70
17	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
18	38H1419	1	Fitting	-
19	4249704	1	Clamp	(SUB FOR AT122946)
21	12H301	1	Lock Washer	1/2"
22	19M7758	1	Cap Screw	M12 X 130
23	4153488	10	Clamp	(SUB FOR TH103780)
24	12H301	10	Lock Washer	1/2"
25	19M7753	10	Cap Screw	M12 X 70
26	AT179568	2	Hydraulic Hose	1" X 1422 mm (56") X 36.5252"
27	H61354	4	Flange Fitting	(SUB FOR R29424, THIS APPLICATION)
28	T78313	2	O-Ring	32.918 X 3.531 mm (1.296" X 0.139"), (SUB FOR T59014, THIS APPLICATION)
29	AT179239	2	Hydraulic Hose	36.5252" X 1524 mm (60") X 36.5252", (USE WITH 2.96M STANDARD ARM)
30	4282718	2	Pressure Relief Valve	(SUB FOR AT155693)
35	4189860	1	Clamp	(SUB FOR TH108314)
36	R29936	4	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
37	AT196851	2	Hand Operated Valve	(BALL VALVE)
38	R36636	2	Drain Plug	-
39	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
40	38H1216	2	Adapter Fitting	(ALSO ORDER <service-part qty="1">T76938</service-part>)(1" ORFS), (ALSO ORDER T76938)
40	38H1194	2	Adapter Fitting	(ALSO ORDER <service-part qty="1">T77858</service-part>)(3/4" ORFS), (ALSO ORDER T77858)
40	AT46961	2	Union Fitting	(1" SAE, MALE)
40	T27603	2	Fitting	(3/4" 37 DEGREE)
40	T26767	2	Fitting	(1" 37 DEGREE)
40	AT83306	2	Adapter Fitting	(3/4" SAE, MALE)
41	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
42	AT186111	1	Quick Coupler	(1" FEMALE)(SCREW TOGETHER COUPLER)
42	-	1	Part 43	(AT189410 NLA)
43	AT186112	1	Quick Coupler	(1" MALE)(SCREW TOGETHER COUPLER)
43	-	1	Part 45	(AT189409 NLA)
44	AT186113	1	Cap	-
45	AT186114	1	Plug	-
46	X1JS78-20-16	2	Hose Fitting	HOSE END - STRAIGHT - 1 1/4 X 1 IN
46	X1J978-20-16	2	Elbow Fitting	HOSE END - 90 DEG 1 1/4 X 1 IN
47	AT117365	2	Hydr. Quick Coupler Plug	MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
47	AT120498	2	Coupling	MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
48	AT117364	2	Hydr. Quick Coupler Socket	FEMALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
48	AT120499	2	Coupling	FEMALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
49	9738322	10	Support	Welded on Boom

AUXILIARY HYDRAULIC HOSES AND FITTINGS (FIELD KIT)
