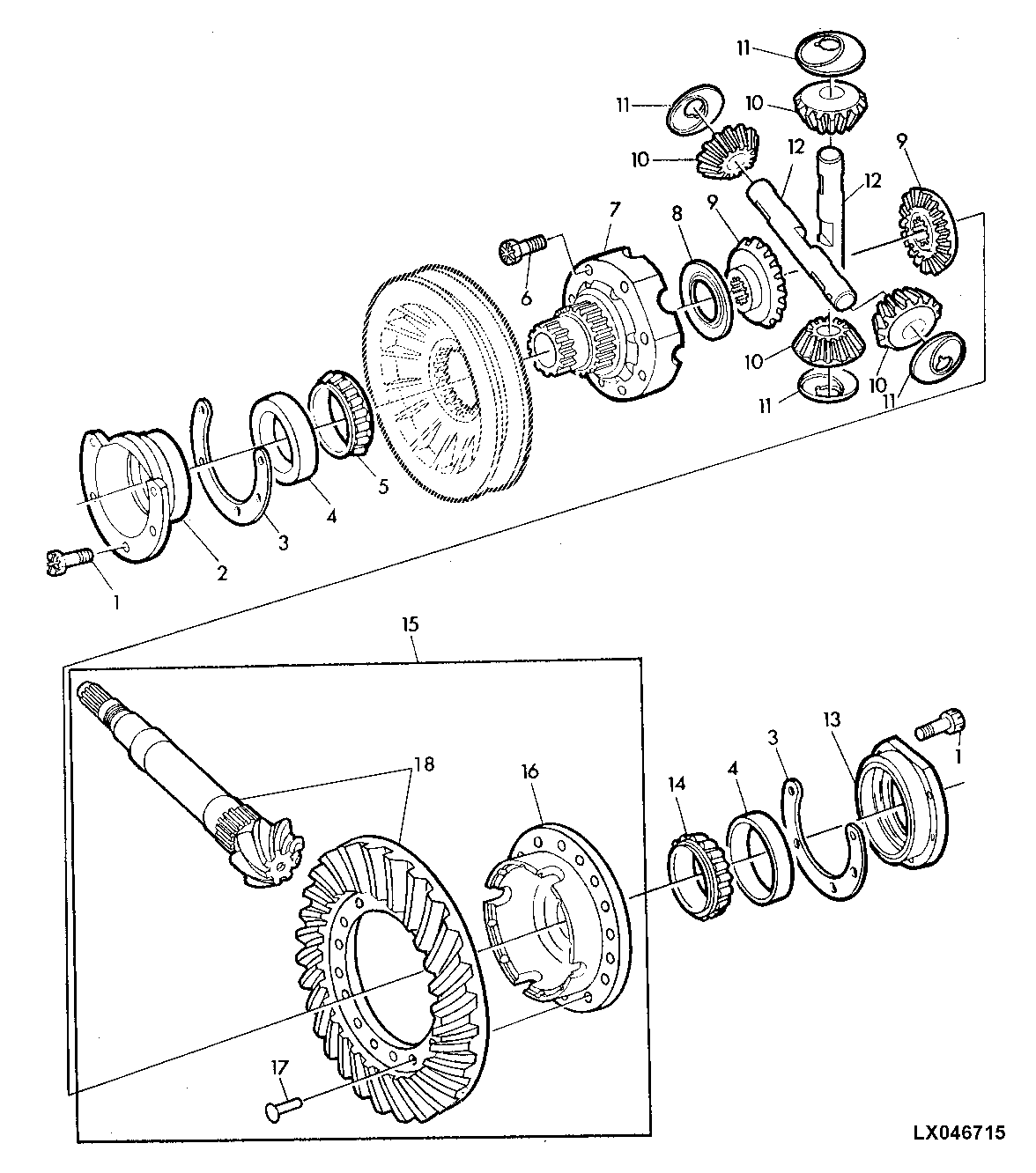

DIFFERENTIAL WITH THRUST WASHERS

DIFFERENTIAL WITH THRUST WASHERS

DIFFERENTIAL WITH THRUST WASHERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

DIFFERENTIAL WITH THRUST WASHERS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22874	10	BOLT	3/8"
2	R62849	1	Bearing Housing W/O Bearing	LH
3	L40721	1	Shim	TK= 0.05MM (.002")
3	L29005	1	Shim	TK= 0.08MM (.003"), (SUB FOR T21434 APPL)
3	L29006	1	Shim	TK= 0.13MM (.005"), (SUB FOR T21435 APPL)
3	L29007	1	Shim	TK= 0.25MM (.010"), (SUB FOR T21436 APPL)
3	T29862	1	SHIM	TK= 0.50MM (.020")
4	JD8206	2	Bearing Cup	LH, RH
5	JD8151	1	Bearing Cone	LH
6	T21430	8	CAP SCREW	3/8"
7	L32568	1	HOUSING	LH
8	L32570	1	WASHER	-
9	T29394	2	BEVEL GEAR	Z= 18
10	L29227	4	GEAR	Z= 11
11	L31793	4	THRUST WASHER	-
12	L29226	2	SHAFT	-
13	T21432	1	BEARING HOUSING W/O BEARING	RH
14	JD8946	1	Bearing Cone	RH
15	AL66590	1	Kit	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 10/47, (ORDER AL67781, T59690, (16) L40557)
15	AL40821	1	Housing	(WITH FRONT WHEEL DRIVE) (NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 8/50, (ORDER AL70948, T59690, (16) L40557, L58285, L61090)
15	AL66592	1	Kit	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 10/41, (ORDER AL70950, T59690, (16) L40557)
15	AL66582	1	Kit	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 8/50, (ORDER AL70948, T59690, (16) L40557)
15	AL41648	1	Housing	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 10/47, (ORDER AL67781, T59690, (16) L40557, L58285, L61090)
15	AL41648	1	Housing	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 10/47, (ORDER AL67781, T59690, (16) L40557, L58285, L62655)
15	AL65223	1	Housing	(WITH FRONT WHEEL DRIVE) (NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 10/41, (ORDER AL70950, T59690, (16) L40557, L58285, L61090)
15	AL65223	1	Housing	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 10/41, (ORDER AL70950, T59690, (16) L40557, L58285, L62655)
15	AL40821	1	Housing	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 8/50, (ORDER AL70948, T59690, (16) L40557, L58285, L62655)
16	T59690	1	Housing	-
17	L40557	16	RIVET	7/16" X 1-11/16"
18	AL70948	1	Tune-Up Kit	Z= 8/50
18	AL70948	1	Tune-Up Kit	(WITH FRONT WHEEL DRIVE) Z= 8/50
18	AL70950	1	Tune-Up Kit	Z= 10/41
18	AL70950	1	Tune-Up Kit	(WITH FRONT WHEEL DRIVE) Z= 10/41
18	AL67781	1	Housing	Z= 10/47
18	AL67781	1	Housing	Z= 10/47
18	AL70948	1	Tune-Up Kit	Z= 8/50
18	AL70950	1	Tune-Up Kit	Z= 10/41
18	AL67781	1	Housing	Z= 10/47
