BATTERY BOX AND STEP (WITH MC1 CAB/MODULE 2 OR 3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	1	Nut	M10
2	24M7028	1	Washer	10.500 X 20 X 2 mm
3	AL59616	1	Bracket	RH
3	AL59615	1	Bracket	LH
3	AL59646	1	Bracket	(WITH SIDE FRAMES) RH
3	AL59645	1	Bracket	(WITH SIDE FRAMES) LH
4	AL64490	1	Battery Box	RH (ORDER AL70258)
4	AL64489	1	Battery Box	LH (ORDER AL70258)
5	19M7402	8	Cap Screw	M10 X 25
6	AL64494	1	Step	RH (ORDER AL70260)
6	AL64493	1	Step	LH (ORDER AL70259)
6	AL64492	1	Step	(WITH THREE STEPS) RH (ORDER AL70265)
6	AL64491	1	Step	(WITH THREE STEPS) LH (ORDER AL70264)
7	AL62241	1	Pin Fastener	-
8	99M7029	1	Spring Locking Pin	-
9	AL64486	1	Step	RH
9	AL64487	1	Step	(WITH THREE STEPS) LH
9	AL64488	1	Step	(WITH THREE STEPS) RH
9	AL64485	1	Step	LH
10	L61183	2	Strap	-
11	19H1835	2	Cap Screw	3/4" X 1-1/2"
12	19H1833	4	Cap Screw	5/8" X 1-1/4"
13	AL66493	2	Latch	(SUB FOR AL61931)
14	19H3244	1	Cap Screw	5/8" X 2-1/4"
15	AL70258	2	Battery Box	-
16	AL70259	1	Step	LH
16	AL70260	1	Step	RH
16	AL70264	1	Step	(WITH THREE STEPS) LH
16	AL70265	1	Step	(WITH THREE STEPS) RH
17	L65167	1	Weatherstrip	-

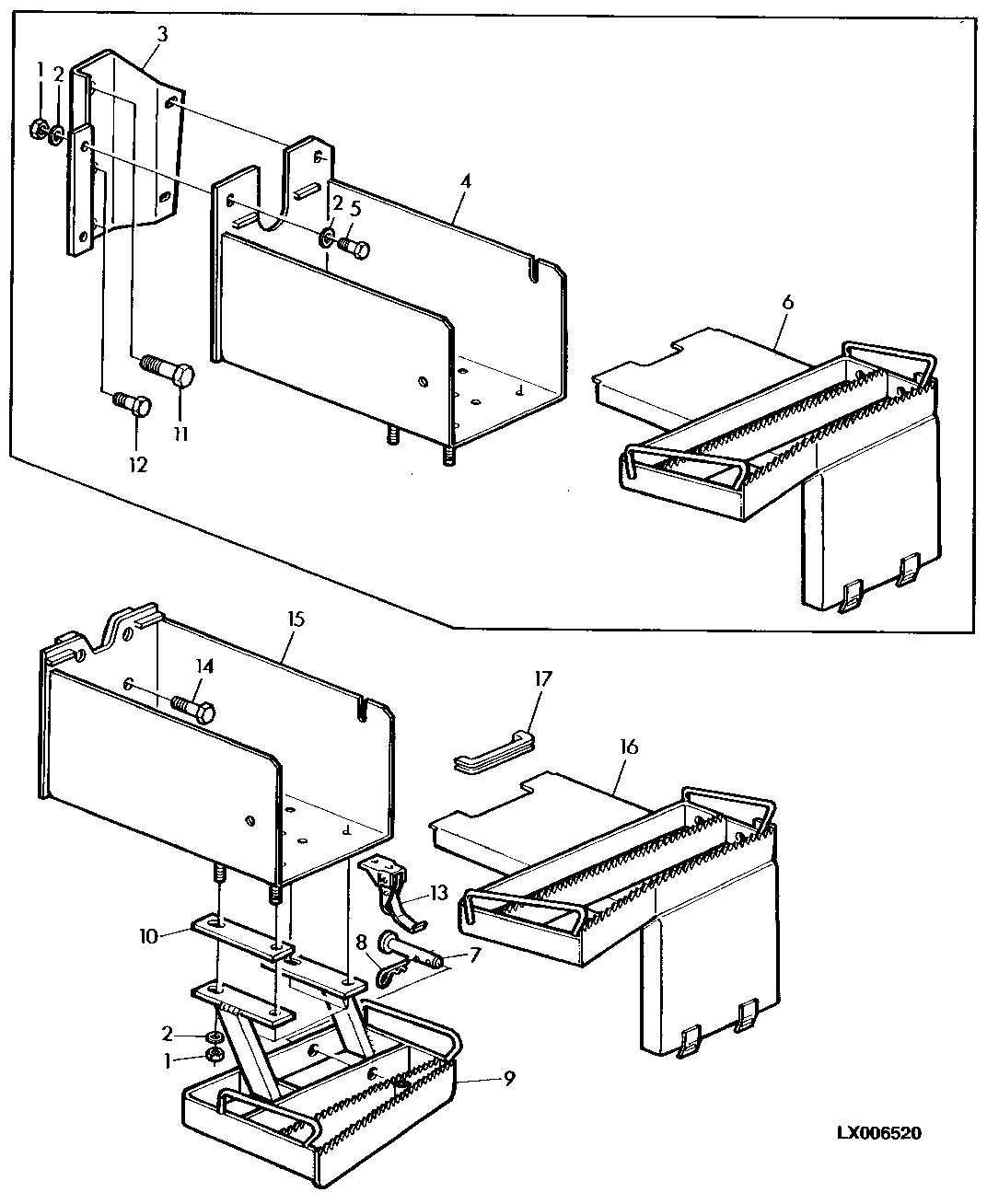

BATTERY BOX AND STEP (WITH MC1 CAB/MODULE 2 OR 3)
