Components, Wiring Harness, CommandCenter™ / Virtual Terminal Controller (002082 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F697422	1	Wiring Harness	-
2	57M8735	1	Elec. Connector Housing	-
2	57M8134	1	Elec. Connector Terminal	-
2	57M8538	3	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
3	57M7619	1	Elec.Connect Locking Device	-
3	57M8164	3	Elec. Connector Terminal	-
3	AZ50832	1	Electrical Connector Assy	-
4	57M8165	2	Elec. Connector Terminal	-
4	57M10523	1	Elec. Connector Housing	-
4	57M7620	1	Electrical Connector Assy	-
5	57M8637	1	Elec. Connector Housing	-
5	R78069	1	Elec. Connector Cavity Plug	-
5	57M8537	1	Elec. Connector Terminal	-
5	57M8221	1	Elec.Connect Locking Device	-
6	57M8637	1	Elec. Connector Housing	-
6	57M8221	1	Elec.Connect Locking Device	-
6	57M8537	1	Elec. Connector Terminal	-
7	F677605	2	Resistor	End Resistor / Terminator
8	57M7262	1	Elec. Connector Housing	-
8	57M7281	1	Elec.Connect Locking Device	-
8	57M7259	3	Elec. Connector Seal	-
8	57M7493	7	Elec. Connector Seal	-
8	R104846	7	Elec. Connector Terminal	-
9	57M10604	2	Elec. Connector Housing	-
9	57M10333	1	Elec. Connector Cavity Plug	-
9	57M10334	1	Elec. Connector Cavity Plug	-
9	57M10612	1	Elec. Connector Housing	-
10	57M10330	4	Elec. Connector Terminal	-
10	57M10334	1	Elec. Connector Cavity Plug	-
10	57M10333	1	Elec. Connector Cavity Plug	-
10	57M10331	7	Elec. Connector Terminal	-
10	57M10613	1	Elec. Connector Housing	-
10	57M10615	1	Elec. Connector Housing	-
11	57M10606	1	Elec. Connector Housing	-
11	57M10333	1	Elec. Connector Cavity Plug	-
11	57M10334	1	Elec. Connector Cavity Plug	-
11	57M10612	1	Elec. Connector Housing	-
12	Z36392	3	Tie Band	-

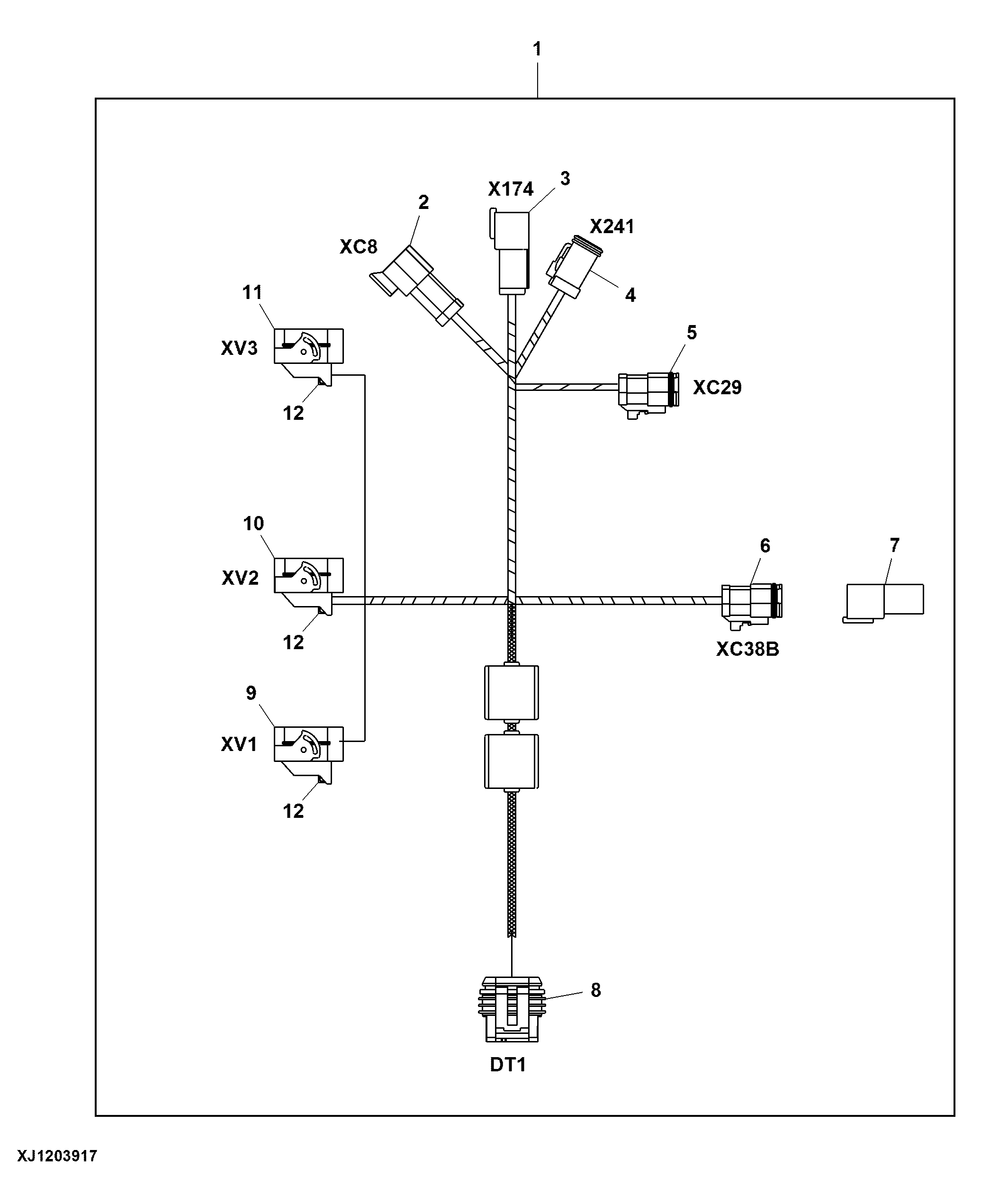

Components, Wiring Harness, CommandCenter™ / Virtual Terminal Controller (002082 - )
