Headboard Hydraulic Lines, Fixed W/ Extension

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9569	2	Screw	M8 X 25
2	F005055	1	NIPPLE	-
3	F024402	1	Elbow Fitting	-
4	F603340	1	Plate	-
5	F603771	1	Guard	-
6	14M7625	2	Lock Nut	M6
7	19M9486	4	Screw	M5 X 110
8	19M9489	2	Screw	M6 X 70
9	19M9703	2	Screw	M10 X 20
10	F005551	2	Lock Washer	-
11	F061125	1	Spool Valve	COMPONENTS ON SEPARATE PAGE
12	F005045	2	Elbow Fitting	-
13	F005057	2	Fitting	-
14	F005060	2	Fitting	-
15	F018111	1	PLUG	-
16	F018112	2	Plug	-
17	F061122	1	Spool Valve	COMPONENTS ON SEPARATE PAGE
18	F696742	1	Bracket	SUB FOR F649445
19	F024323	1	Hydraulic Hose	LGTH = 2300 mm, From A2
20	F053045	1	Hydraulic Hose	LGTH = 2000 mm, From B2
21	F072587	1	Hydraulic Hose	LGTH = 600 mm, From P
22	F072588	1	Hydraulic Hose	LGTH = 650 mm, From T To T1
23	F071142	1	Hose Guard	-
24	F620481	1	Wiring Harness	INCLUDES 57M8017, 57M7619, (2) F035038 AND (4) R78066
25	57M8017	1	Elec. Connector Housing	-
25	57M7619	1	Elec.Connect Locking Device	-
25	F035038	2	CABLE	-
25	R78066	4	Elec. Connector Terminal	-

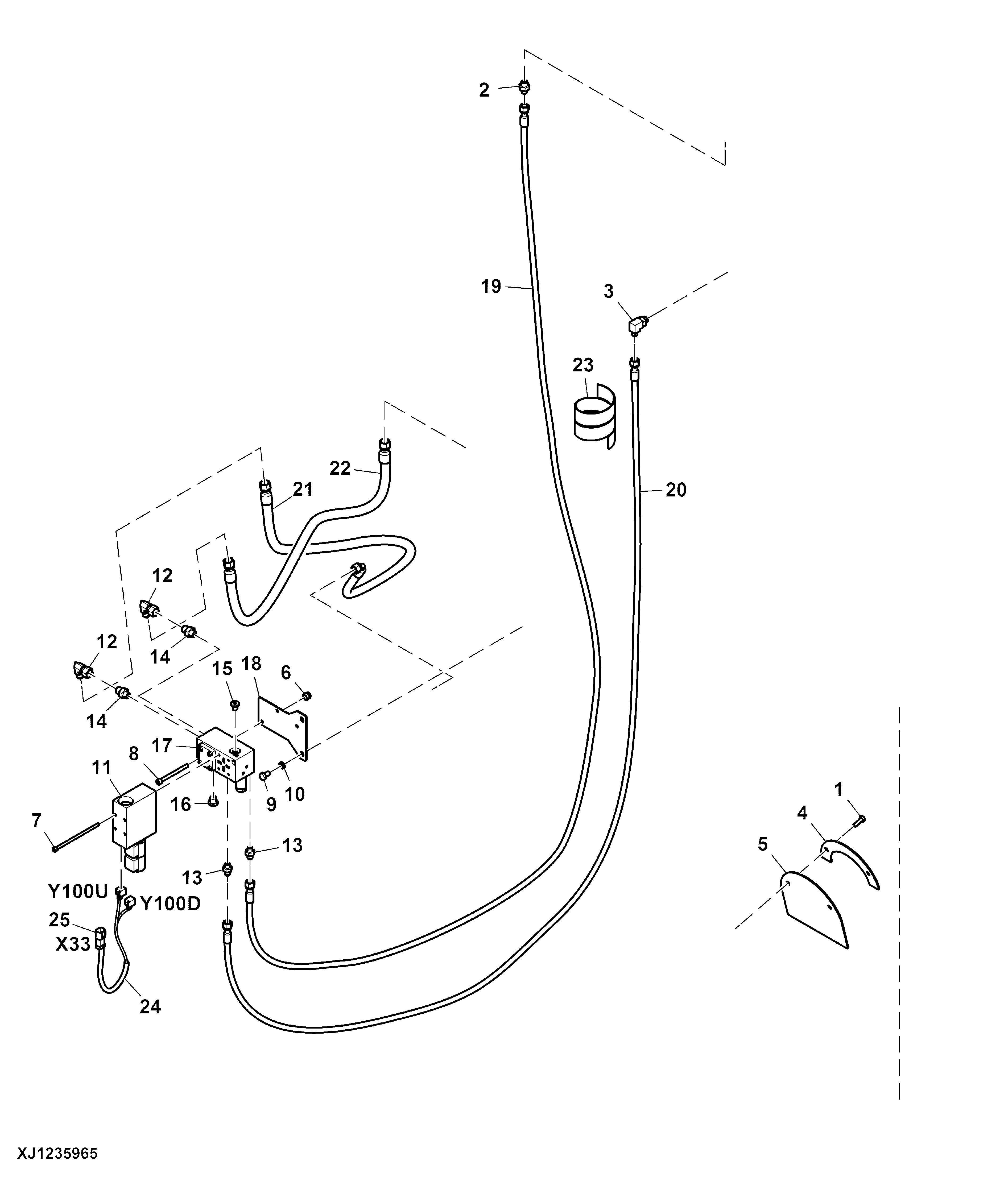

Headboard Hydraulic Lines, Fixed W/ Extension
