Открытый узел

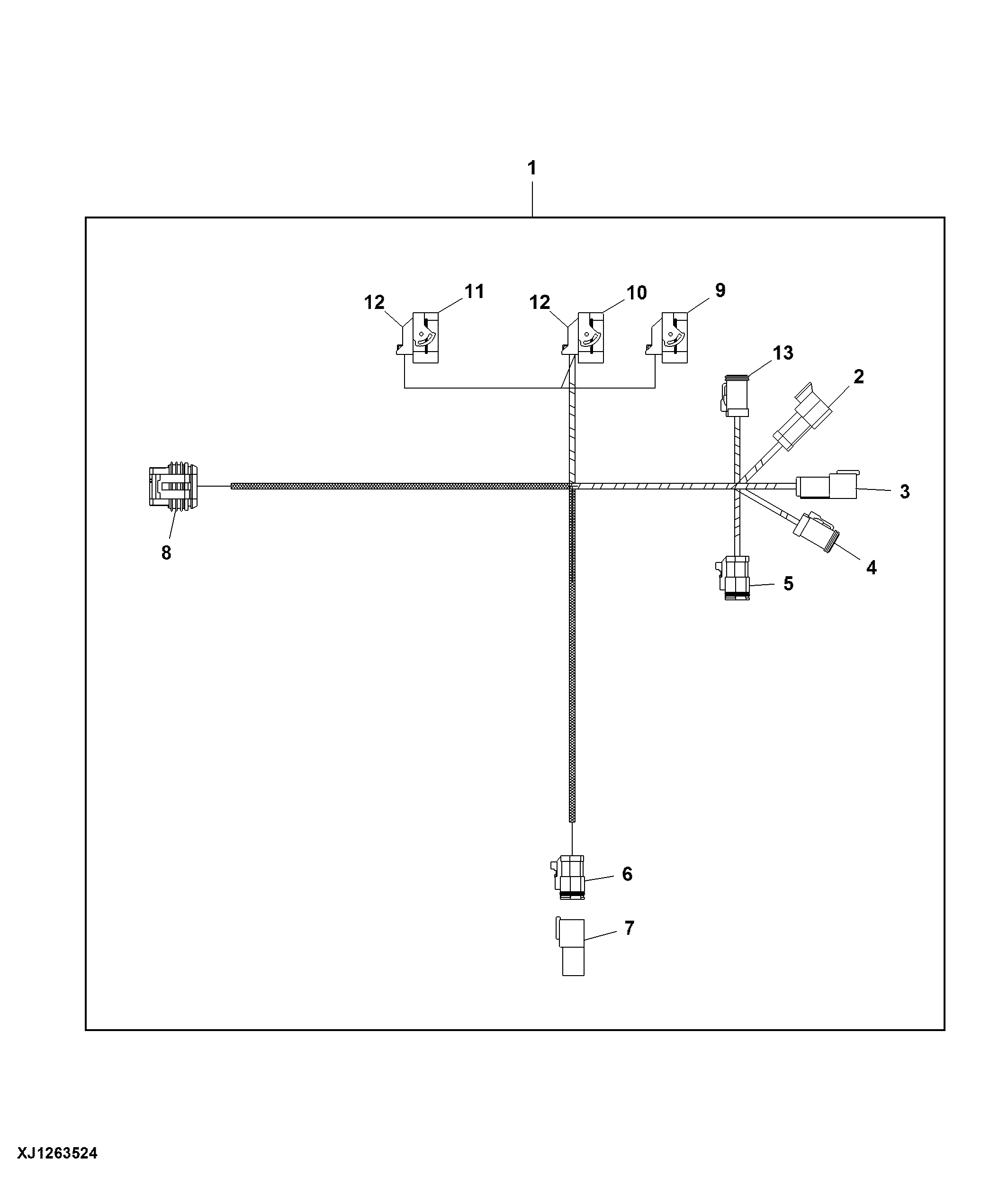

Components, Wiring Harness, CommandCenter™, Virtual Terminal Controller ( - 001761)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F697422	1	Wiring Harness	DTI Display
2	57M8735	1	Elec. Connector Housing	XC8, CAN
2	57M8538	3	Elec. Connector Terminal	-
2	57M8134	1	Elec. Connector Terminal	-
3	AZ50832	1	Electrical Connector Assy	X174, Power
3	57M7619	1	Elec.Connect Locking Device	-
3	57M8164	3	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
4	57M10523	2	Elec. Connector Housing	X241, Camera
4	57M8165	2	Elec. Connector Terminal	-
4	57M7620	1	Electrical Connector Assy	-
5	57M8221	1	Elec.Connect Locking Device	-
5	R78069	1	Elec. Connector Cavity Plug	-
5	57M8537	1	Elec. Connector Terminal	-
5	57M8637	1	Elec. Connector Housing	XC29, CAN 2
6	57M8637	1	Elec. Connector Housing	XC38B, CAN Terminator
6	57M8221	1	Elec.Connect Locking Device	-
6	57M8537	1	Elec. Connector Terminal	-
7	F677605	1	Resistor	End Resistor / Terminator
8	57M7281	1	Elec.Connect Locking Device	-
8	57M7259	3	Elec. Connector Seal	-
8	57M7493	7	Elec. Connector Seal	-
8	57M7262	1	Elec. Connector Housing	DT1, Command Center
8	R104846	7	Elec. Connector Terminal	-
9	57M10612	1	Elec. Connector Housing	XV1, VTC
9	57M10333	1	Elec. Connector Cavity Plug	-
9	57M10334	1	Elec. Connector Cavity Plug	-
9	57M10604	1	Elec. Connector Housing	-
10	57M10333	1	Elec. Connector Cavity Plug	-
10	57M10334	1	Elec. Connector Cavity Plug	-
10	57M10331	6	Elec. Connector Terminal	-
10	57M10330	6	Elec. Connector Terminal	-
10	57M10613	1	Elec. Connector Housing	-
10	57M10615	1	Elec. Connector Housing	XV2, VTC
11	57M10606	1	Elec. Connector Housing	XV3, VTC
11	57M10333	1	Elec. Connector Cavity Plug	-
11	57M10334	1	Elec. Connector Cavity Plug	-
11	57M10604	1	Elec. Connector Housing	-
11	57M10330	1	Elec. Connector Terminal	-
12	Z36392	2	Tie Band	-
13	AZ54533	1	Elec. Connector Housing	X161, Video Mirror
13	57M7618	1	Electrical Connector Assy	-
13	R78069	1	Elec. Connector Cavity Plug	-
13	57M8165	1	Elec. Connector Terminal	-

Components, Wiring Harness, CommandCenter™, Virtual Terminal Controller ( - 001761)

Нет текстового описания
