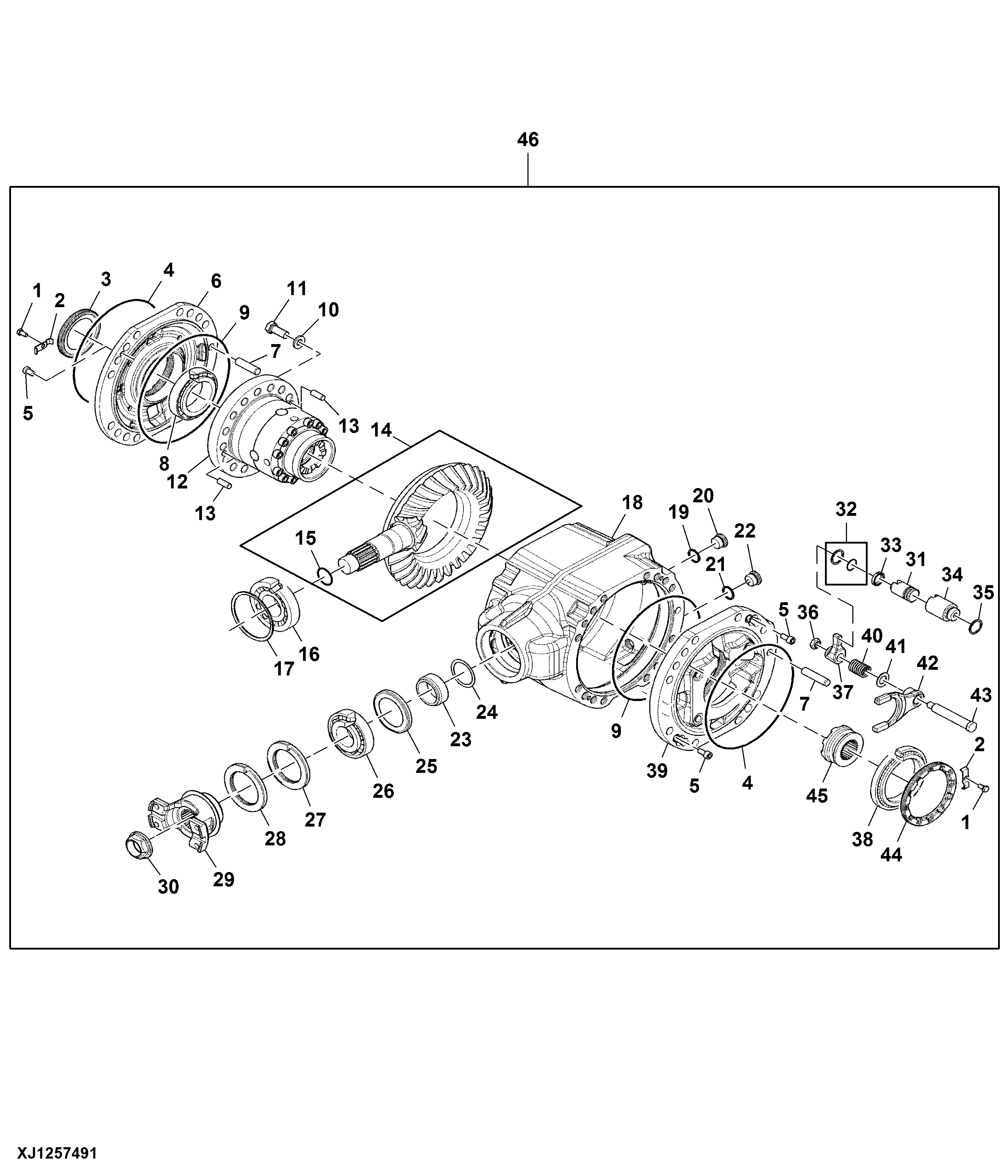

Differential Front Axle, LOK 161

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F004638	2	Screw	-
2	F004891	2	Lock Washer	-
3	F046778	1	Nut	-
4	F003308	2	O-Ring	-
5	19M9703	4	Screw	M10 X 20, SUB FOR F003415
6	F046756	1	Flange	-
7	34M7054	2	Spring Pin	10 X 50 mm, SUB FOR F046766
8	F075657	1	Tapered Roller Bearing	SUB FOR F025161
9	F040418	2	O-Ring	-
10	F054176	16	Screw	SUB FOR F026684
11	F009375	16	Washer	-
12	F683027	1	Differential	Differential Housing COMPONENTS ON SEPARATE PAGE
13	F025340	4	Pin	-
14	F077023	1	Ring Gear And Pinion	Z = 35 / 6
15	F011429	1	O-Ring	-
16	F689911	1	Bearing	SUB FOR F026691
17	-	1	Part 24	TK = 2.4 mm
17	-	1	Part 33	TK = 2.95 mm
17	-	1	Part 32	TK = 2.9 mm
17	-	1	Part 31	TK = 2.85 mm
17	-	1	Part 30	TK = 2.8 mm
17	-	1	Part 29	TK = 2.7 mm
17	-	1	Part 28	TK = 2.65 mm
17	-	1	Part 27	TK = 2.6 mm
17	-	1	Part 26	TK = 2.55 mm
17	-	1	Part 25	TK = 2.45 mm
17	-	1	Part 23	TK = 2.35 mm
17	-	1	Part 22	TK = 2.3 mm
17	F047330	1	Shim	TK = 3 mm
17	F047331	1	Shim	TK = 2.75 mm
17	F047332	1	Shim	TK = 2.5 mm
17	F058334	1	Shim	TK = 2.25 mm
17	F057879	1	Shim Kit	-
18	F046779	1	Housing	-
19	F009465	1	Sealing Ring	-
20	F009438	1	Plug	-
21	F009463	1	Seal	-
22	F009498	1	Plug	-
23	F046772	1	Spacer	-
24	F023675	1	Shim	TK = 1.12 mm
24	F023674	1	Shim	TK = 1.16 mm
24	F023676	1	Shim	TK = 1.08 mm
24	F023677	1	Shim	TK = 1.04 mm
24	F023678	1	Shim	TK = 1 mm
24	F023679	1	Shim	TK = 0.96 mm
24	F023667	1	Shim	TK = 1.44 mm
24	F023672	1	Shim	TK = 1.24 mm
24	F023673	1	Shim	TK = 1.2 mm
24	F045262	1	Shim Kit	-
24	F023668	1	Shim	TK = 1.4 mm
24	F023669	1	Shim	TK = 1.36 mm
24	F023670	1	Shim	TK = 1.32 mm
24	F023671	1	Shim	TK = 1.28 mm
25	F046773	1	Spacer	-
25	F035843	1	Spacer	-
25	F035844	1	Spacer	-
26	F689912	1	Bearing	SUB FOR F046762
27	F046763	1	Seal	-
28	F046764	1	Seal	-
29	F075235	1	Flange	-
30	F021149	1	Nut	-
31	F050812	1	Piston	-
32	F050813	1	Seal	-
33	F009469	1	Seal	-
34	F046771	1	Cylinder	-
35	F046765	1	O-Ring	-
36	F023666	1	Nut	-
37	F064584	1	Locking Collar	-
38	F004688	1	Tapered Roller Bearing	-
39	F046757	1	Flange	-
40	F009394	1	Spring	-
41	F009378	1	Shim	TK = 1.5 mm
41	F056215	1	Shim	TK = 3 mm
41	F009383	1	Shim	TK = 2.5 mm
41	F009380	1	Shim	TK = 2 mm
41	F045259	1	Shim Kit	TK = 4 mm
42	F046758	1	Fork	Shifting Fork
43	F064585	1	Pin Fastener	Shifting Rod
44	F004814	1	Nut	-
45	F046760	1	Bushing	-
46	F683464	1	Differential	Complete
