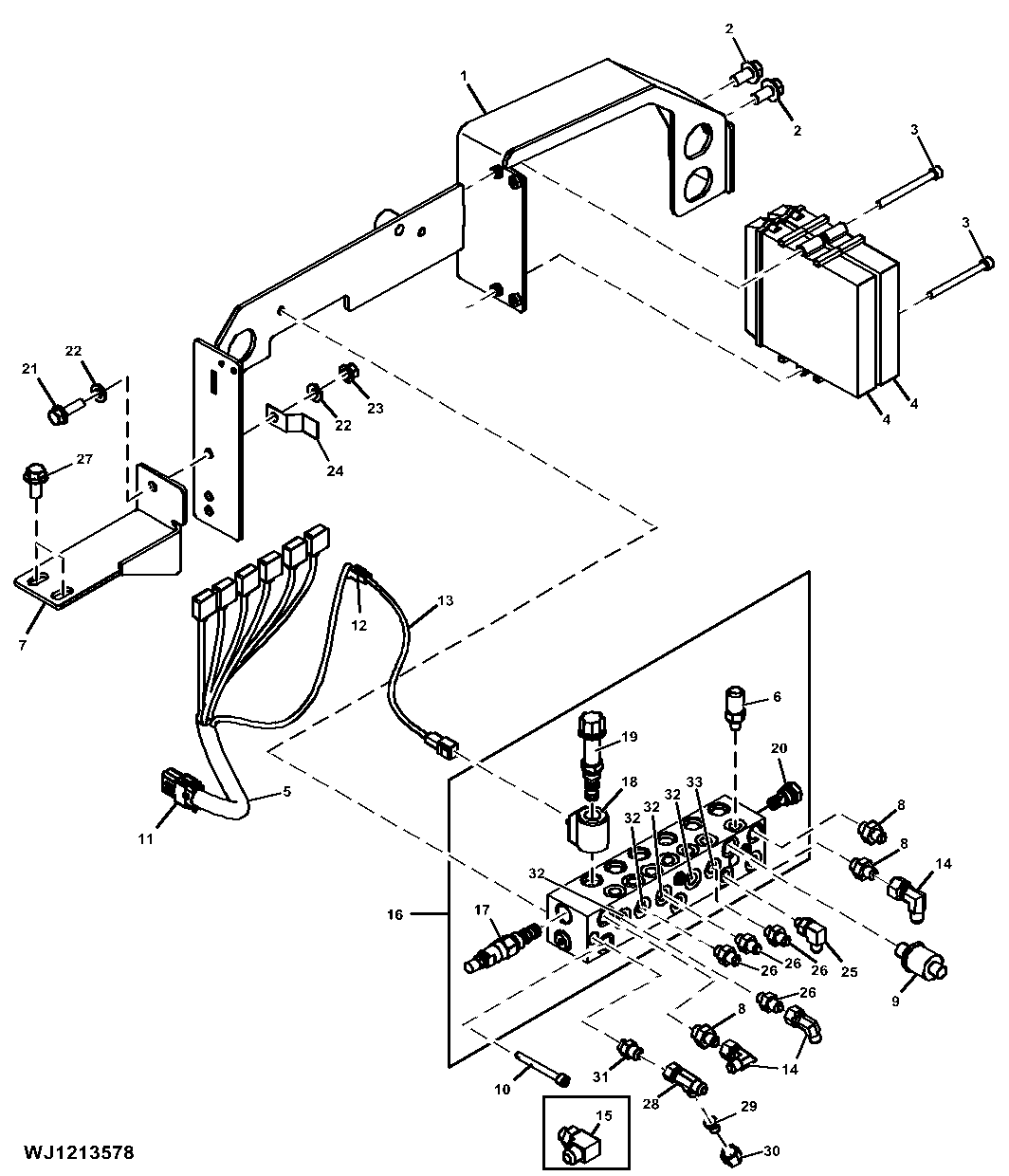

Valve, Auxiliary Functions ( - 001675)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F648681	1	Bracket	-
2	19M9570	2	Screw	M12 X 25
3	19M9495	2	Screw	M8 X 90
4	F065193	2	Electronic Control Unit	-
4	F672517	2	Electronic Control Unit	-
5	F636641	1	Wiring Harness	-
6	F023426	7	Fitting	-
7	F651661	1	Bracket	-
8	F005055	3	NIPPLE	-
9	F072911	1	Sensor	100 bar, NLA; ORDER F672035
9	F672035	1	Sensor	-
10	19M9494	2	Screw	M8 X 70
11	57M7633	1	Electrical Connector Assy	-
11	F052693	3	Plug	-
11	F052697	1	Elec. Connector Terminal	-
11	F045798	9	Pin	-
12	F052686	1	Electrical Connector Assy	-
12	F052691	2	Lug	-
12	F052688	1	Lock	-
13	F632746	1	Wiring Harness	-
14	F022417	3	Elbow Fitting	-
15	F010072	1	ELBOW NIPPLE	-
16	F067345	1	Manifold	-
17	F072225	1	Hydraulic Pressure Valve	INCLUDES F698480
17	F698480	1	Seal Kit	Not Illustrated, SUB FOR F062341
18	F060200	6	Solenoid Valve Coil	-
19	F062554	6	Solenoid Valve	W/O Coil, INCLUDES F698480
19	F698480	1	Seal Kit	Not Illustrated, SUB FOR F062341
20	F071409	1	Check Valve	INCLUDES F698480
20	F698480	1	Seal Kit	Not Illustrated, SUB FOR F063320
21	19M10261	2	Screw	M10 X 25, SUB FOR 19M9878
22	F064436	4	Washer	-
23	14M7602	2	Flange Nut	M10
24	57M8736	2	Elec. Connector Accessory	-
25	F024599	1	Elbow Fitting	-
26	F005057	4	Fitting	-
27	19M9449	2	Screw	M12 X 16
28	F005073	1	Tee Fitting	-
29	F025424	1	Fitting	-
30	F010079	1	COUPLING NUT	-
31	F005060	1	Fitting	-
32	F013458	4	Orifice	-
33	F062370	1	Orifice	-

Valve, Auxiliary Functions ( - 001675)
