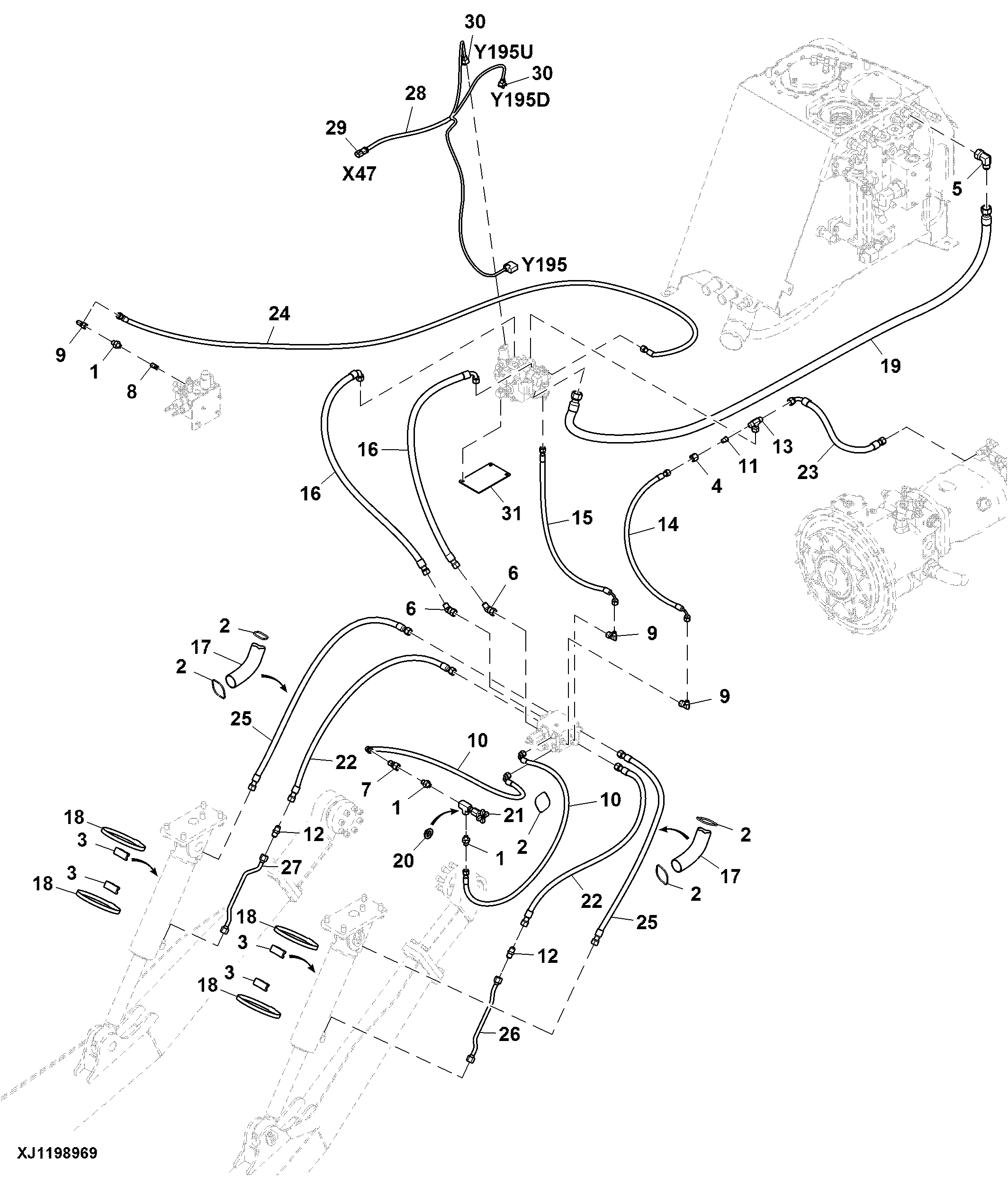

Hydraulic Hoses, Bulldozer Blade

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F005057	3	Fitting	-
2	F005335	5	Tie Band	-
3	F007730	4	Hose Support	-
4	F010079	1	COUPLING NUT	-
5	F011482	1	Fitting	-
6	F012521	2	Elbow Fitting	-
7	F013594	1	Elbow Fitting	-
8	F015494	1	Check Valve	-
9	F022417	3	Elbow Fitting	-
10	F024309	2	Hydraulic Hose	LGTH = 1200 mm, Counter Balance Valve C5 to Valve; Counter Balance Valve C6 to Valve
11	F025424	1	Fitting	-
12	F026843	2	Fitting	-
13	F031738	1	Tee Fitting	-
14	F032044	1	Hydraulic Hose	LGTH =1010 mm, Counter Balance Valve P to Proportional Valve P2
15	F048009	1	HOSE-ASSY	LGTH = 850 mm, Counter Balance Valve T to Proportional Valve TP
16	F048981	2	Hydraulic Hose	LGTH = 900 mm, Proportional Valve A to Counter Balance Valve V1; Proportional Valve B to Counter Balance Valve V2
17	F051025	2	Hose Guard	LGTH = 550 mm
18	F052869	4	Hose Clamp	-
19	F055898	1	Hydraulic Hose	LGTH = 2600 mm, Proportional Valve T3 to Tank
20	F062777	1	Mounting Parts	-
21	F062778	1	Hydraulic Restrictor	-
22	F074754	4	Hydraulic Hose	LGTH = 1400 mm, Hydraulic Cylinder Arm Left to Counter Balance Valve C4; Hydraulic Cylinder Arm Right to Counter Balance Valve C3
22	F062996	2	Hydraulic Hose	LGTH = 1450 mm, Hydraulic Cylinder Arm Left to Counter Balance Valve C4; Hydraulic Cylinder Arm Right to Counter Balance Valve C3, SUB FOR F675588
23	F072553	1	Hydraulic Hose	LGTH = 500 mm, Proportional Valve P2 to Pump P
24	F072571	1	Hydraulic Hose	LGTH = 2200 mm, Proportional Valve P1 to LS-Valve LS3
25	F074754	2	Hydraulic Hose	LGTH = 1400 mm, Hydraulic Cylinder Piston Left to Counter Balance Valve C1; Hydraulic Cylinder Piston Right to Counter Balance Valve C3
26	F633228	1	Pipe	-
27	F633229	1	Pipe	-
28	F642124	1	Wiring Harness	-
29	AZ54536	1	Elec. Connector Housing	To Decking Plate Floatation Solenoid
29	57M7619	1	Elec.Connect Locking Device	SUB FOR F053707
29	R78066	6	Elec. Connector Terminal	SUB FOR F045798
30	F031719	2	Guard	To Decking Plate Up and Down Solenoids
30	57M7399	4	Elec. Connector Seal	SUB FOR F056900
30	F056901	2	Elec. Connector Terminal	-
30	57M9532	4	Elec. Connector Terminal	SUB FOR F056902
31	F649091	1	Rubber Track Belt	-
