Blade Pipings (Upperstructure) (010333 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4350437	1	Hyd Actuated Control Valve	(SUB FOR AT171945)(BLADE)
1	19M8337	3	Screw	M10 X 30
2	12M7066	3	Lock Washer	10 mm
3	14M7274	3	Nut	M10
17	4200469	1	Adapter Fitting	(SUB FOR TH108400)
18	4200466	5	Adapter Fitting	(SUB FOR TH108320)
19	AR86055	1	Hydraulic Hose	9/16" X 622 mm (24-1/2") X 9/16"
20	AE24616	1	Elbow Fitting	-
21	AT200740	1	Hydraulic Hose	-
22	-	4	Part 12	(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222 (TH100996 NOT AVAILABLE FOR SERVICE))
23	AT200766	1	Hydraulic Hose	-
25	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
26	4279302	1	Adapter Fitting	(SUB FOR AT200475)
29	-	2	Part 18	(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222 (TH100996 NOT AVAILABLE FOR SERVICE))
30	AT200765	1	Hydraulic Hose	-
44	H77698	3	Tie Band	-
46	9738835	1	Bracket	(SUB FOR AT171946)
47	-	1	Part 22	( TH102027 NO LONGER AVAILABLE)
48	24M7028	1	Washer	10.500 X 20 X 2 mm
50	19M7402	1	Cap Screw	M10 X 25
51	R50454	1	Clamp	(SUB FOR TH109445 OR 4192034)
52	T24432	1	Clamp	-
60	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
17A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
18A	CH11570	1	O-Ring	-
25A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
26A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
60A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)

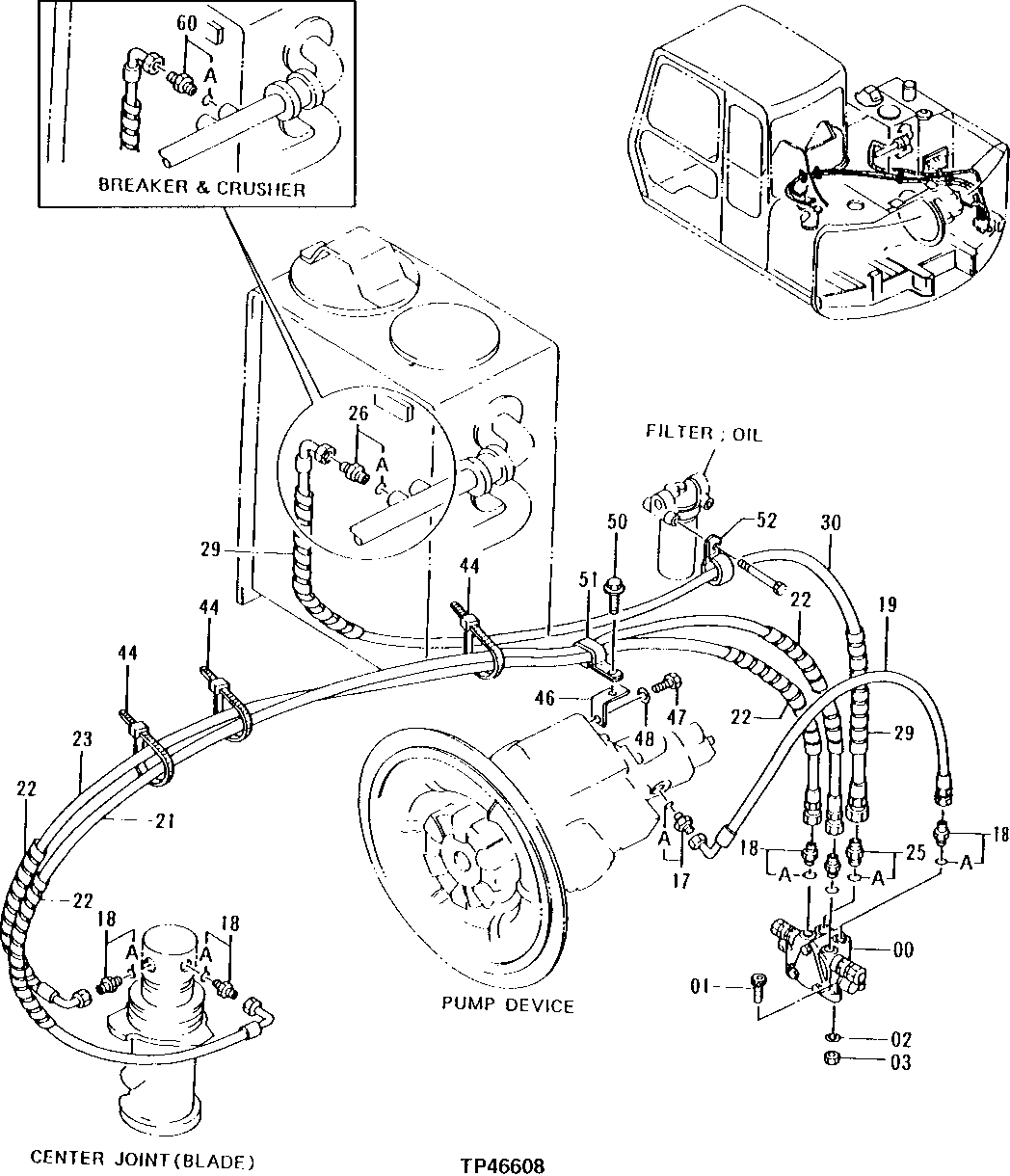

Blade Pipings (Upperstructure) (010333 - )
