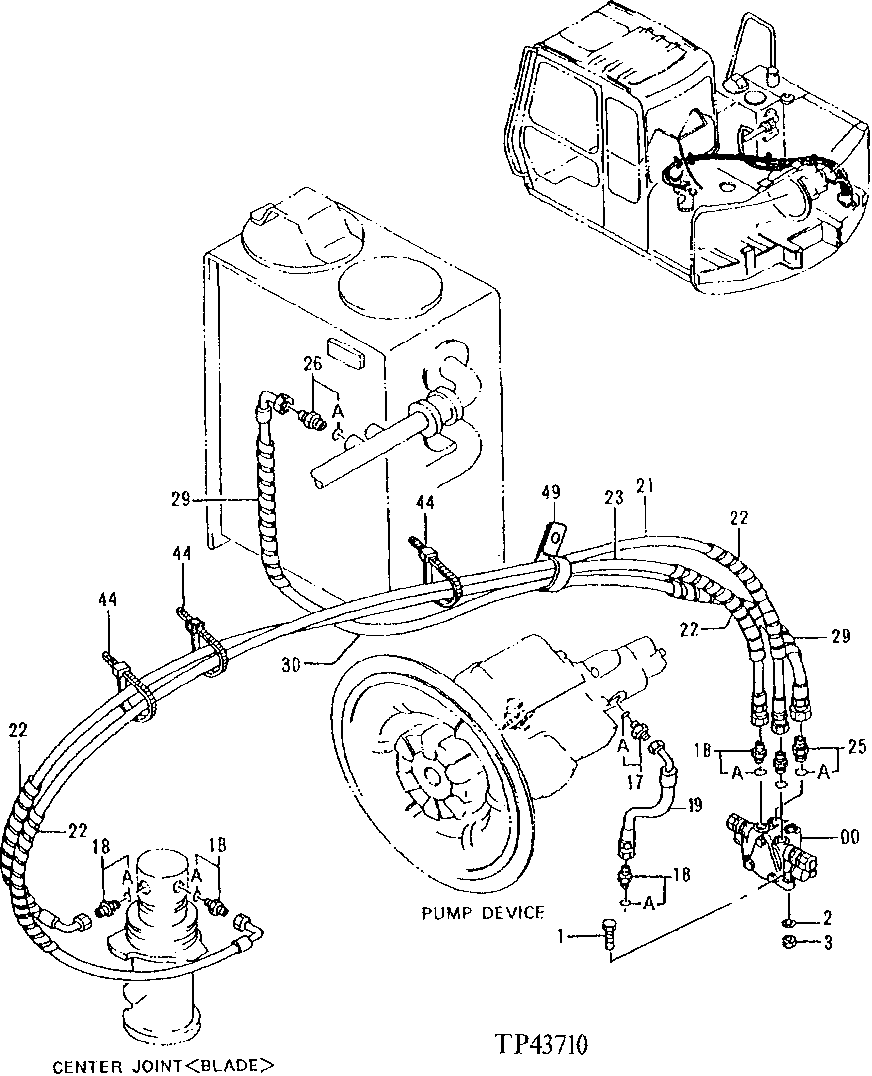

Blade Pipings (Upperstructure) ( - 010332)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4286412	1	Hyd Actuated Control Valve	(SUB FOR AT200493)(BLADE)
1	19M8337	3	Screw	M10 X 30
2	12M7066	3	Lock Washer	10 mm
3	14M7274	3	Nut	M10
17	4200469	1	Adapter Fitting	(SUB FOR TH108400)
18	4200466	5	Adapter Fitting	(SUB FOR TH108320)
19	AT163723	1	Hydraulic Hose	9/16" X 400 mm (15-3/4") X 9/16"
21	AT200740	1	Hydraulic Hose	-
22	-	4	Part 11	(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222 (TH100996 NOT AVAILABLE FOR SERVICE))
23	AT200766	1	Hydraulic Hose	-
25	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
26	4279302	1	Adapter Fitting	(SUB FOR AT200475)
29	-	2	Part 17	(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222 (TH100996 NOT AVAILABLE FOR SERVICE))
30	AT200765	1	Hydraulic Hose	-
44	H77698	3	Tie Band	-
49	XCL-29	1	Hose Clamp	(SUB FOR TH110522 OR 4193848)
17A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
18A	CH11570	1	O-Ring	-
25A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
26A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
