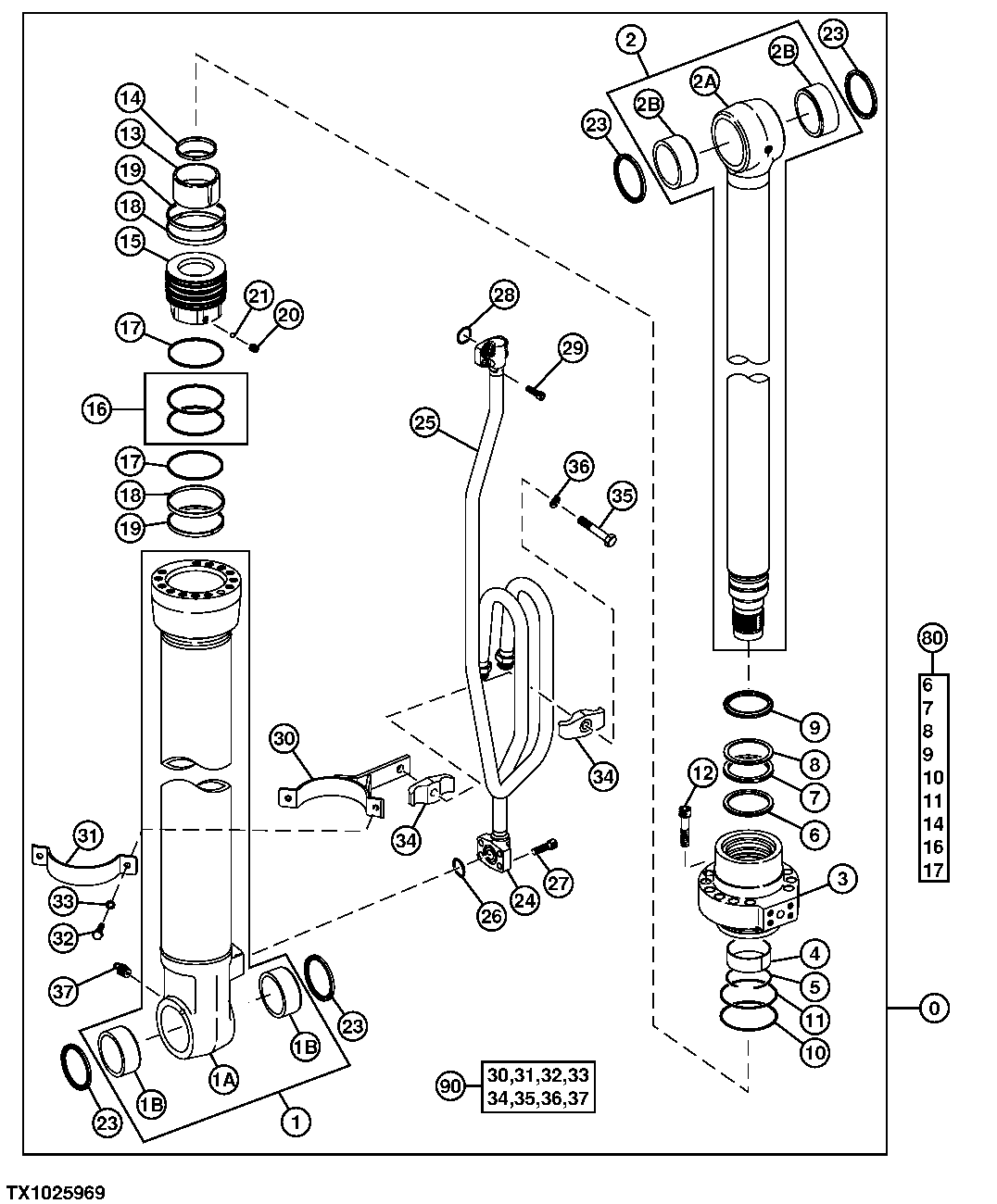

Left Boom Cylinder Components (Mono Boom)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9257864G	1	Hydraulic Cylinder	(4646630 NLA)
1	1138401	1	Tube	-
2	1134302	1	Hydraulic Cylinder Rod	-
3	H180210	1	Hydr. Cylinder Rod Guide	(SUB FOR 0788905)
4	AT264272	1	Bushing	(SUB FOR 0309004 OR T108019 OR 4272960)
5	TH104944	1	Snap Ring	(SUB FOR 0208304)
6	H227911	1	Seal	(SUB FOR 0788906 OR 0788911)
7	4S00660	1	Packing	(SUB FOR 0788912 OR 0208305)
8	AT309614	1	Back-Up Ring	(SUB FOR 0208306 OR TH104953 OR 4S00174)
9	H155911	1	Seal	(SUB FOR 0667204)
10	AT264342	1	O-Ring	(SUB FOR A811115 OR TH100125)
11	AT264359	1	Back-Up Ring	(SUB FOR 0261310 OR TH104929 OR 4S00175)
12	19M8931	12	Screw	M16 X 75, (SUB FOR 0409705)
13	0880803	1	Bearing	(SUB FOR 0409706)
14	H155919	1	Seal	(SUB FOR 0667205)
15	H227626	1	Piston	(SUB FOR 0998903)
16	AT264355	1	Seal	(SUB FOR 0258205 OR TH104922 OR 4S00176)
17	H155916	2	Back-Up Ring	(SUB FOR 0409709)
18	H227906	2	Ring	(SUB FOR 0998904 OR 0788908)
19	AT264356	2	Wear Ring	(SUB FOR 0261308 OR TH104923)
20	22M6684	1	Set Screw	M12 X 12, (SUB FOR 0309011)
21	T13624	1	Ball	(SUB FOR 0111707)
23	TH102446	4	Seal	(SUB FOR 4067902)
24	4680367G	1	Oil Line	(SUB FOR 1138402)
25	4666143G	1	Oil Line	(SUB FOR 1138403)
26	AT264348	1	O-Ring	(SUB FOR 984614)
27	19M8448	4	Screw	M12 X 35, (SUB FOR M341236)
28	AT264360	1	O-Ring	(SUB FOR 4506430)
29	19M8337	4	Screw	M10 X 30, (SUB FOR M341030)
30	1138207	1	Band	-
31	H163434	1	Band	(SUB FOR 0686409)
32	19M7550	2	Cap Screw	M10 X 35, (SUB FOR J901035)
33	12M7066	2	Lock Washer	10 mm, (SUB FOR A590910)
34	0236915	2	Half Clamp	-
35	19M4789	1	Cap Screw	M14 X 80, (SUB FOR 0254312)
36	12H317	1	Lock Washer	9/16", (SUB FOR A590914)
37	TH100074	1	Lubrication Fitting	(SUB FOR J75481)
80	AH225136	1	Seal Kit	(SUB FOR 4661485)
90	1138206	1	Band Kit	-
1A	-	1	Part 3	(NLA)
1B	4352398	2	Bushing	(SUB FOR FFSB102565)
2A	-	1	Part 6	(NLA)
2B	4355875	2	Bushing	(SUB FOR AT213976)
