Left Boom Cylinder Components (2P Boom)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9257865G	1	Hydraulic Cylinder	(4646651 NLA)
1	1138801	1	Tube	-
2	1138802	1	Hydraulic Cylinder Rod	-
3	H180210	1	Hydr. Cylinder Rod Guide	(SUB FOR 0788904)
4	T108019	1	Bushing	(SUB FOR 0309004)
5	TH104944	1	Snap Ring	(SUB FOR 0208304)
6	H227911	1	Seal	(SUB FOR 0788906)
7	TH104952	1	Seal	(SUB FOR 0788912)
8	AT309614	1	Back-Up Ring	(SUB FOR 0208306)
9	H155911	1	Seal	(SUB FOR 0667204)
10	TH100125	1	O-Ring	(SUB FOR A811115)
11	TH104929	1	Back-Up Ring	(SUB FOR 0261310)
12	19M8931	12	Screw	M16 X 75, (SUB FOR 0409705)
13	0880803	1	Bearing	-
14	H155919	1	Seal	(SUB FOR 0667205)
15	H227626	1	Piston	(SUB FOR 0998903)
16	TH104922	1	Seal	(SUB FOR 0258205)
17	H155916	2	Back-Up Ring	(SUB FOR 0409709)
18	0788908	2	Ring	(SUB FOR 0998904)
19	TH104923	2	Wear Ring	(SUB FOR 0261308)
20	22M6684	1	Set Screw	M12 X 12, (SUB FOR 0309011)
21	T13624	1	Ball	(SUB FOR 0111707)
23	TH102446	2	Seal	(SUB FOR 4067902)
25	TH102445	2	Seal	(SUB FOR 4067901)
26	4680370G	1	Oil Line	(SUB FOR 0916802)
27	4680371G	1	Oil Line	(SUB FOR 1139001)
28	AT264348	1	O-Ring	(SUB FOR 984614)
29	19M8448	4	Screw	M12 X 35, (SUB FOR M341236)
30	AT264360	1	O-Ring	(SUB FOR 4506430)
31	19M8337	4	Screw	M10 X 30, (SUB FOR M341030)
32	1138805	1	Band	-
33	H163434	1	Band	(SUB FOR 0686409)
34	19M7550	2	Cap Screw	M10 X 35, (SUB FOR J901035)
35	12M7066	2	Lock Washer	10 mm, (SUB FOR A590910)
36	0236915G	2	Half Clamp	(SUB FOR TH102783 OR 0236915)
37	19M4789	1	Cap Screw	M14 X 80, (SUB FOR 0254312)
38	12H317	1	Lock Washer	9/16", (SUB FOR A590914)
39	TH100074	1	Lubrication Fitting	(SUB FOR J75481)
80	AH225136	1	Seal Kit	(SUB FOR 4661485)
90	1138806	1	Band Kit	-
1A	-	1	Part 3	(NLA)
1B	4352398	2	Bushing	-
2A	-	1	Part 6	(NLA)
2B	4355875	2	Bushing	-

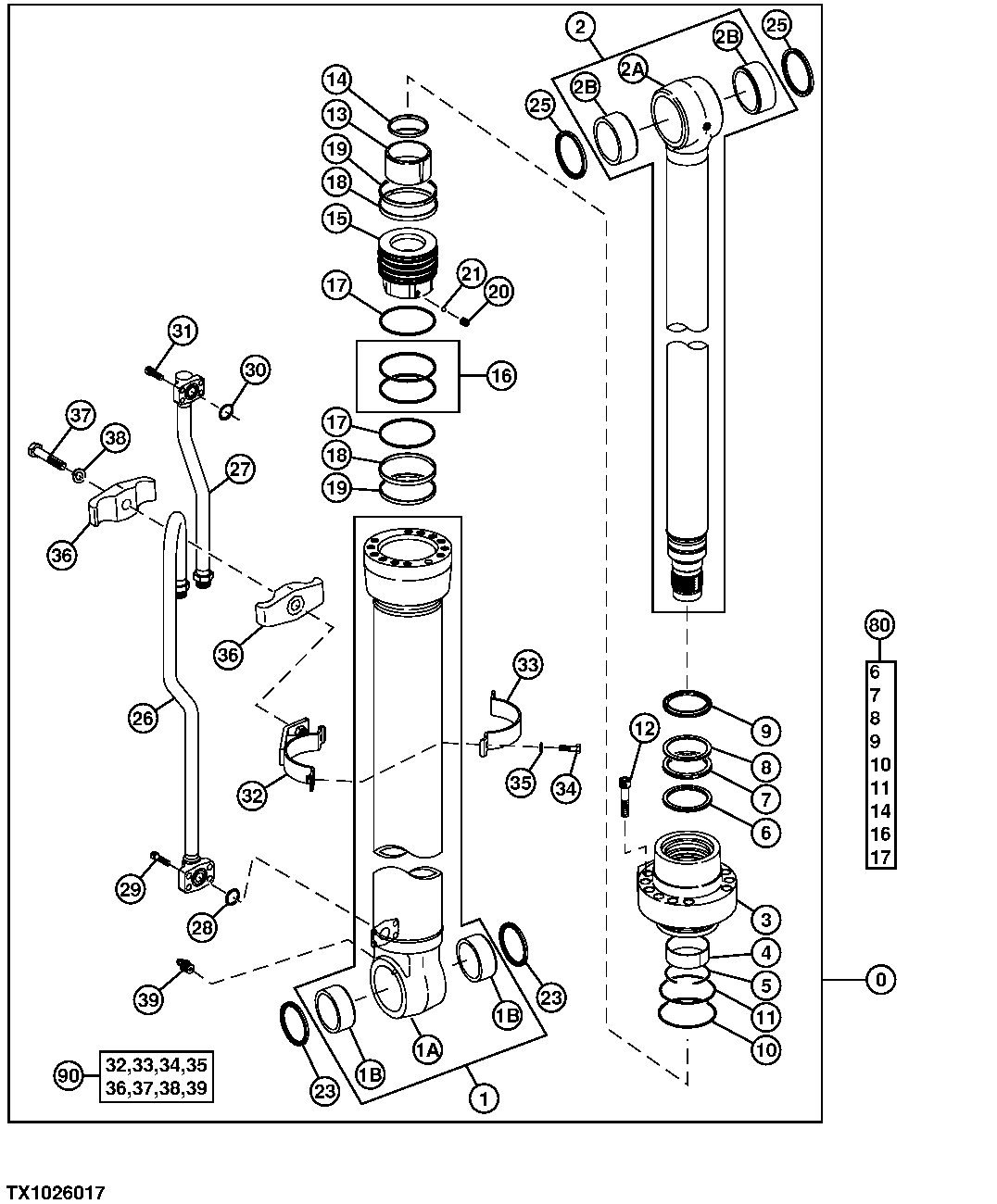

Left Boom Cylinder Components (2P Boom)
