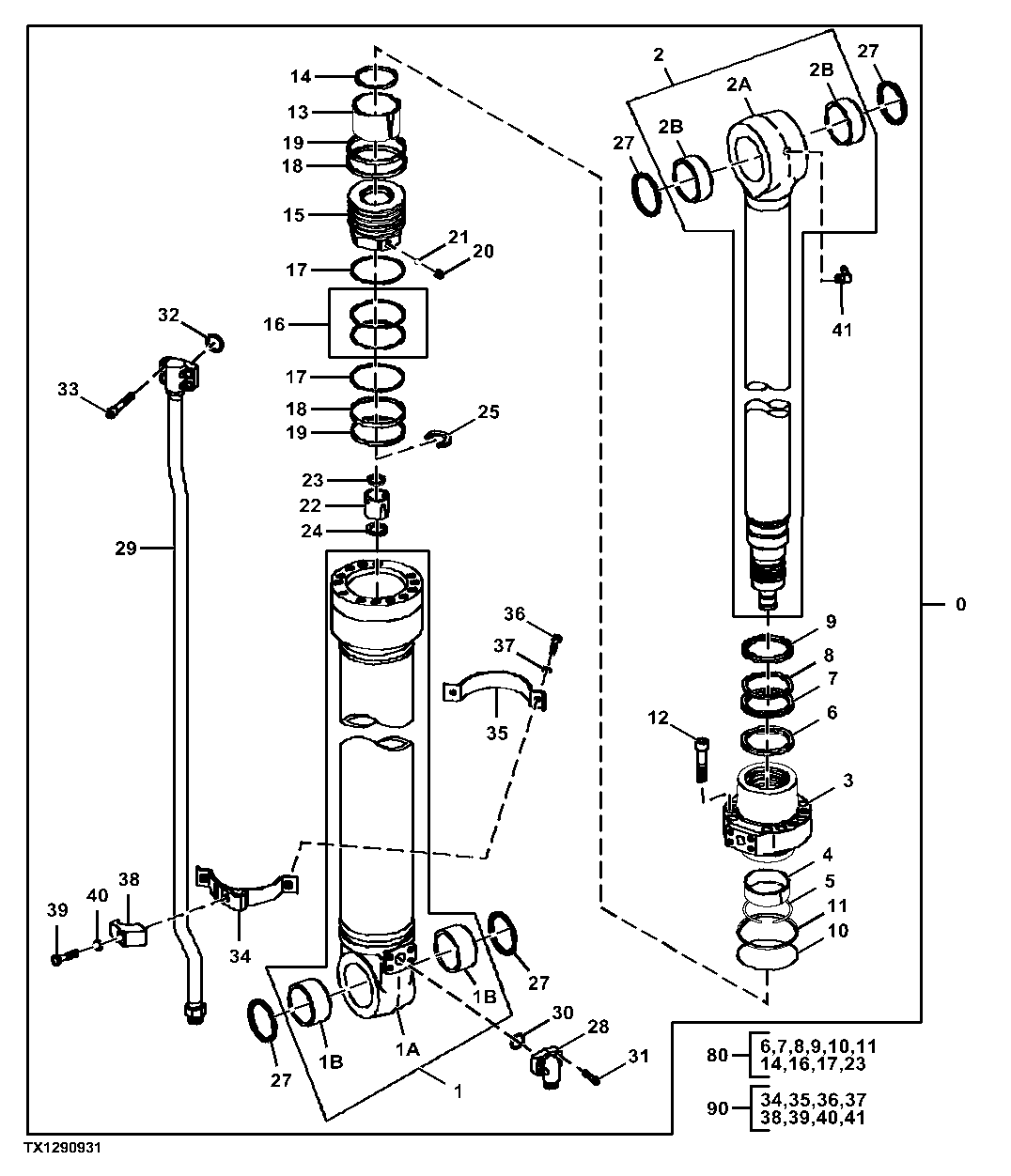

Arm Cylinder Components, One Piece Boom

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9256993G	1	Hydraulic Cylinder	Arm, SUB FOR 4645302
1	1128301	1	Tube	-
2	1128302	1	Hydraulic Cylinder Rod	-
3	0829303	1	Cylinder Head	-
4	AT264321	1	Bushing	SUB FOR 0325904
5	0237407	1	Ring	-
6	4S00706	1	Ring	SUB FOR 1119303
7	4S00707	1	Packing	SUB FOR 1119304
8	AT264351	1	Back-Up Ring	SUB FOR 0237419
9	4428492	1	Ring	SUB FOR 4428492
10	TH100122	1	O-Ring	SUB FOR A811120 OR TH100122
11	TH104956	1	Back-Up Ring	SUB FOR 0223704
12	19M8931	12	Screw	M16 X 75, SUB FOR 0409705
13	0871304	1	Ball Bearing	-
14	1128303	1	Seal	-
15	1128304	1	Piston	-
16	AT264361	1	Seal	SUB FOR 0223706
17	0496706	2	Back-Up Ring	SUB FOR 0496706
18	4S00708	2	Ring	SUB FOR 0926604
19	TH104949	2	Piston Ring	SUB FOR 0223706
20	22M6684	1	Set Screw	M12 X 12, SUB FOR 0309011
21	T13624	1	Ball	SUB FOR 0111707
22	H155321	1	Spacer	SUB FOR 0409913
23	H155322	1	Seal	SUB FOR 0667411
24	H155329	2	Ring	SUB FOR 0409915
25	H155330	1	Piston Ring	SUB FOR 0409916
27	TH102446	4	Seal	SUB FOR 4067902
28	0796601	1	Universal Joint	-
29	1128306	1	Pipe	-
30	AT264360	1	O-Ring	SUB FOR 4506430
31	19M8337	4	Screw	M10 X 30, SUB FOR M341030
32	AT264348	1	O-Ring	SUB FOR 984614
33	19M8448	4	Screw	M12 X 35, SUB FOR M341236
34	0737510	1	Band	-
35	4468607	1	Band	-
36	19M7550	2	Cap Screw	M10 X 35, SUB FOR J901035
37	12M7066	2	Lock Washer	10 mm, SUB FOR A590910
38	T108036G	1	Clamp	SUB FOR 0309021 OR T108036
39	19M7362	1	Cap Screw	M12 X 55, SUB FOR 0667013
40	12M7067	1	Lock Washer	12 mm, SUB FOR 0208516
41	CH18478	1	Elbow Fitting	SUB FOR 0225709
80	FYA00009243	1	Seal Kit	SUB FOR 4667663
90	0737509	1	Band	-
1A	-	1	Part 3	NSEP
1B	4352398	2	Bushing	-
2A	-	1	Part 6	NSEP
2B	4352398	2	Bushing	-

Arm Cylinder Components, One Piece Boom
