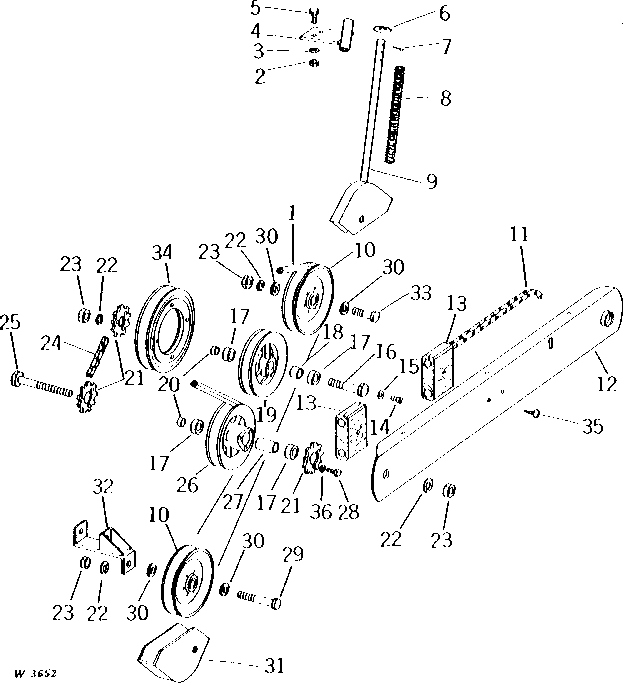

REVERSING DRIVE USED ON WINDROWERS (1000- ) [A21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W12904	1	V-BELT	-
2	14H1076	2	Nut	3/8"
3	12H304	2	Lock Washer	3/8"
4	AW12136	1	ANCHOR	(SUB FOR W12915)
5	19H1936	2	Cap Screw	3/8" X 3/4"
6	24H1365	1	Washer	21/32" X 1" X 0.090"
7	11M7083	1	Cotter Pin	3.200 X 50 MM
8	W14579	1	SPRING	(SUB FOR W12917)
9	AW11331	1	SHIELD	-
10	AN15237	1	Idler	(SUB FOR AW11314)
11	-	1	Part 11	(167 LINKS, NO. 40, 1/2" PITCH INCLUDING ONE P33541 COUPLER LINK AND ONE P33542 OFFSET LINK)
12	W15170	1	LINK	(SUB FOR AW12691)
13	W15295	1	GUIDE	-
14	21H1024	1	Screw	1/4" X 5/8"
15	12H322	1	Lock Washer	1/4"
16	W15169	1	BOLT	-
17	JD9351	1	BALL BEARING	-
18	W15174	1	BUSHING	-
19	W15171	1	PULLEY	-
20	W15168	1	BUSHING	-
21	W15173	1	CHAIN SPROCKET	-
22	12H294	1	Lock Washer	5/8"
23	14H1039	1	Nut	5/8"
24	-	1	Part 24	(48 LINKS, NO. 40, 1/2" PITCH INCLUDING ONE P33541 COUPLER LINK)
25	19H1923	1	Cap Screw	5/8" X 5-1/2"
26	W15172	1	PULLEY	-
27	W15175	1	BUSHING	-
28	19H1948	1	Cap Screw	1/4" X 3/4"
29	19H2641	1	Cap Screw	5/8" X 3-1/4"
30	W12916	1	WASHER	-
31	AW11330	1	SHIELD	-
32	AW11687	1	SUPPORT	-
33	19H1847	1	Cap Screw	5/8" X 2-1/2"
34	W13706	1	PULLEY	-
35	23H149	2	SCREW	0.177" X 3/4"
36	12H302	3	Lock Washer	1/4"

REVERSING DRIVE USED ON WINDROWERS (1000- ) [A21]
