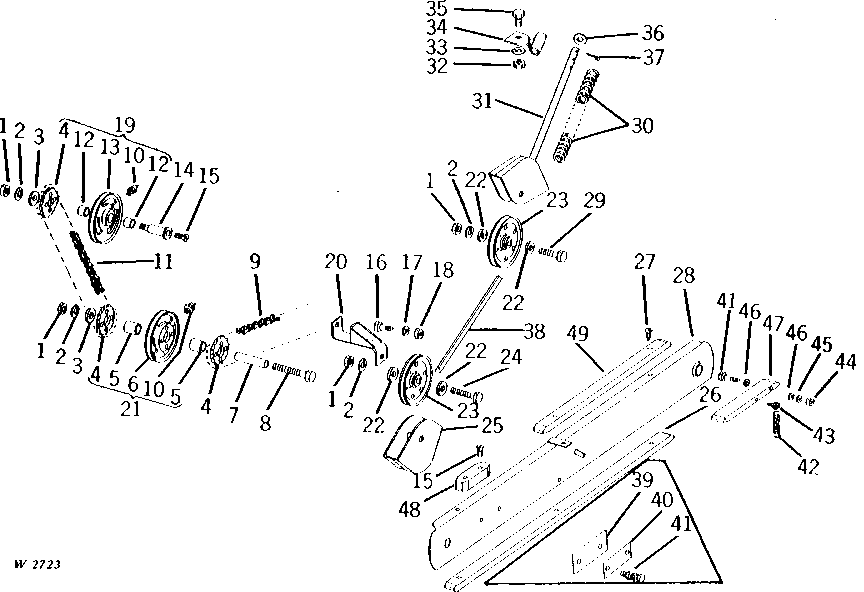

REVERSING DRIVE USED ON WINDROWERS ( -003) [A19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1039	1	Nut	5/8"
2	12H294	1	Lock Washer	5/8"
3	W12900	1	WASHER	-
4	W15003	1	DRIVE SPROCKET	(SUB FOR W12911 OR W14402)
5	W15006	1	BUSHING	(SUB FOR W12914)
6	AW12609	1	PULLEY	(SUB FOR W14400)
7	W12902	1	BUSHING	-
8	19H2076	1	Cap Screw	5/8" X 5"
9	-	1	Part 9	(167 LINKS, NO. 40, 1/2" PITCH INCLUDING ONE P33541 COUPLER LINK)
10	JD7797	1	Lubrication Fitting	-
11	-	1	Part 11	(48 LINKS, NO. 40, 1/2" PITCH INCLUDING ONE P33541 COUPLER LINK)
12	W15004	1	BUSHING	(SUB FOR W12912)
13	AW12606	1	PULLEY	(SUB FOR W14401)
14	W12901	1	SPINDLE	-
15	21H1026	1	SCREW	1/4" X 3/4"
16	19H1815	2	Cap Screw	1/2" X 1-1/4"
17	12H301	2	Lock Washer	1/2"
18	14H1040	2	Nut	1/2"
19	AW12607	1	PULLEY	(SUB FOR W12910, AW11323 OR AW12269)
20	AW11687	1	SUPPORT	-
21	AW12608	1	PULLEY	(SUB FOR W12913, AW11324 OR AW12268)
22	W12916	1	WASHER	-
23	AN15237	1	Idler	(SUB FOR AW11314)
24	19H2641	1	Cap Screw	5/8" X 3-1/4"
25	AW11330	1	SHIELD	-
26	W12905	1	GUIDE	-
27	23H145	6	SCREW	0.177" X 1/2"
28	AW12338	1	LINK	(SUB FOR AW11322)
29	19H1847	1	Cap Screw	5/8" X 2-1/2"
30	W14579	1	SPRING	(SUB FOR W12917)
31	AW11331	1	SHIELD	-
32	14H1076	2	Nut	3/8"
33	12H304	2	Lock Washer	3/8"
34	AW12136	1	ANCHOR	(SUB FOR W12915)
35	19H1936	2	Cap Screw	3/8" X 3/4"
36	24H1365	1	Washer	21/32" X 1" X 0.090"
37	11M7083	1	Cotter Pin	3.200 X 50 MM
38	W12904	1	V-BELT	-
39	W13704	1	GUIDE	-
40	W13705	1	GUIDE	-
41	19H1996	2	Cap Screw	1/4" X 2"
41	12H302	2	Lock Washer	1/4"
41	14H786	2	Nut	1/4"
42	22714	1	SPRING	-
43	W14544	1	SCREW	-
44	14H786	1	Nut	1/4"
45	12H302	1	Lock Washer	1/4"
46	24H1287	1	Washer	9/32" X 5/8" X 0.065"
47	W14545	1	TIGHTENER	-
48	W14576	1	GUIDE	-
49	W14543	1	RUNNER	-

REVERSING DRIVE USED ON WINDROWERS ( -003) [A19]
