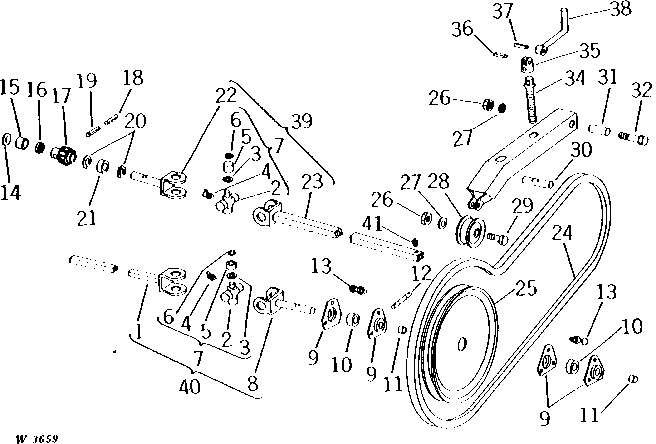

REEL DRIVE SHEAVE, SHAFT, AND GEAR [A14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW11259	1	YOKE WITH SHAFT	-
2	AH18327	1	KIT	(INCLUDES KEYS 3 AND 5)
3	H31521	1	WASHER	-
4	JD7760	1	Lubrication Fitting	-
5	-	1	Part 5	(SUB AH18327)
6	E4298E	1	Snap Ring	-
7	AE793E	1	Cross And Bearing Assembly	KIT, CENTER PARTS
8	AW11258	1	YOKE WITH SHAFT	-
9	C11761	1	BEARING	(SUB JD8562 AND (2) H103264)
10	AW11318	1	BALL BEARING	(SUB JD8562 AND (2) H103264)
11	JD8563	1	Eccentric Locking Collar	-
12	34H315	1	Spring Pin	1/4" X 1-3/8"
13	03H1540	6	Bolt	5/16" X 3/4"
13	14H785	6	Nut	5/16"
13	12H303	6	Lock Washer	5/16"
14	30H13	1	PLUG	1"
15	JD8802	1	Needle Bearing	(SUB FOR JD9804)
16	AW11320	1	SEAL	-
17	W12730	1	GEAR	-
18	34H307	1	SPRING PIN	7/32" X 2-1/2"
19	34H253	1	SPRING PIN	1/8" X 1-3/8"
20	H21836	1	SNAP RING	-
21	AH17132	1	BEARING	-
22	AW11256	1	YOKE WITH SHAFT	-
23	AW11257	1	YOKE WITH TUBE	-
24	W14431	1	V-BELT	(SUB FOR W12972)
25	AW11252	1	PULLEY	-
26	14H1040	1	Nut	1/2"
27	12H301	1	Lock Washer	1/2"
28	AP24406	1	IDLER	-
29	19H1831	1	Cap Screw	1/2" X 2"
30	W12597	1	NUT	-
31	28H2035	1	SPACER	1/2" X 2.625"
32	19H1781	1	CAP SCREW	1/2" X 3-1/2"
33	W12598	1	ARM	-
34	W12596	1	SCREW	-
35	W12609	1	SWIVEL	-
36	34H351	1	Spring Pin	3/8" X 1-1/2"
37	34H288	1	Spring Pin	3/16" X 1-3/4"
38	GY2050W	1	CRANK	-
39	AW11254	1	UNIVERSAL JOINT	-
40	AW11650	1	UNIVERSAL JOINT WITH SHAFT	-
41	JD5807	1	Lubrication Fitting	-

REEL DRIVE SHEAVE, SHAFT, AND GEAR [A14]

Нет текстового описания
