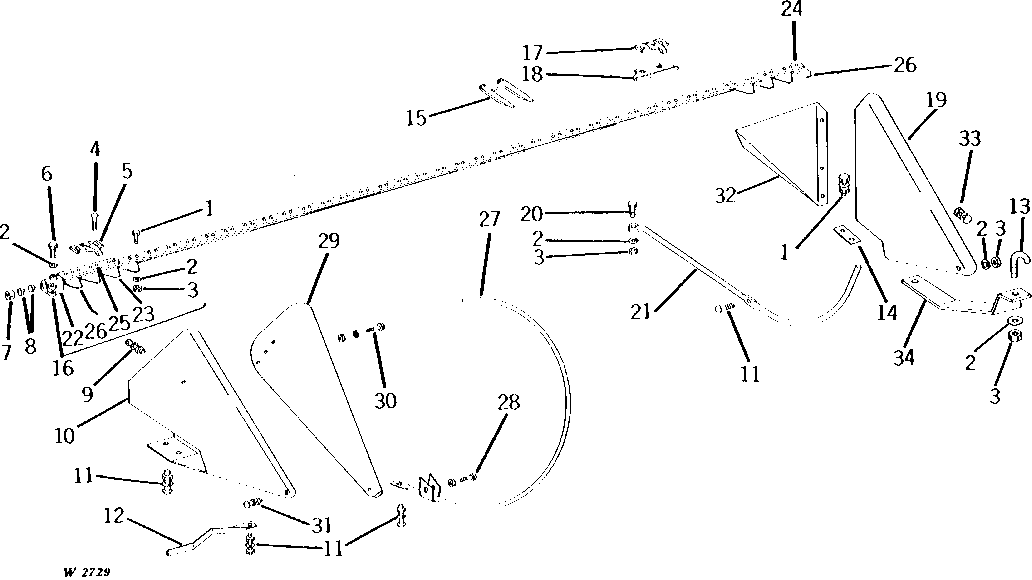

KNIFE, GUARDS AND CROP DIVIDERS [B04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1732	31	Cap Screw	3/8" X 1-1/4"
2	12H304	72	Lock Washer	3/8"
3	14H1076	71	Nut	3/8"
4	03H1558	34	Bolt	3/8" X 1-1/2"
5	E39298	1	HOLD-DOWN CLIP	(SUB FOR H10923 OR E35461)
6	19H1800	1	Cap Screw	3/8" X 1-1/2"
7	H23462	1	FITTING	-
8	H23415	1	BEARING	-
9	19H1731	2	Cap Screw	3/8" X 1"
9	12H304	2	Lock Washer	3/8"
9	14H1076	2	Nut	3/8"
10	AW11648	1	PARTITION	-
11	03H1519	3	Bolt	3/8" X 1"
11	14H1076	3	Nut	3/8"
11	12H304	3	Lock Washer	3/8"
12	W12602	1	GUARD	-
13	W15187	1	BOLT	-
14	W13680	1	STRAP	-
15	H61954	33	KNIFE GUARD	-
16	AW11239	1	CUTTERBAR	-
17	H95175	16	Hold-Down Clip	-
18	E47954	17	Cutterbar Wear Plate	(SUB FOR Z5926H)
19	AW11649	1	PARTITION	-
20	19H1801	1	CAP SCREW	3/8" X 2"
21	W12599	1	ROD	-
22	W12714	1	KNIFEHEAD	-
23	H29680	65	SECTION	-
24	H30175	127	RIVET	-
25	H61280	7	RIVET	(ORDER AH61134 BOX OF H61280 RIVETS)
26	H30170	2	SECTION	(SUB FOR H29679)
27	AW11662	1	HOOP	-
28	19H1727	1	CAP SCREW	1/4" X 1-1/2"
28	14H786	1	Nut	1/4"
29	AW11661	1	EXTENSION	-
30	21H1024	1	Screw	1/4" X 5/8"
30	12H302	1	Lock Washer	1/4"
30	14H786	1	Nut	1/4"
31	19H1914	1	Cap Screw	1/4" X 1"
31	14H786	1	Nut	1/4"
32	W12825	1	EXTENSION	(SINGLE-SWATH ONLY)
33	03H1540	2	Bolt	5/16" X 3/4"
33	12H303	2	Lock Washer	5/16"
33	14H785	2	Nut	5/16"
34	W15186	1	BRACE	-

KNIFE, GUARDS AND CROP DIVIDERS [B04]

Нет текстового описания
