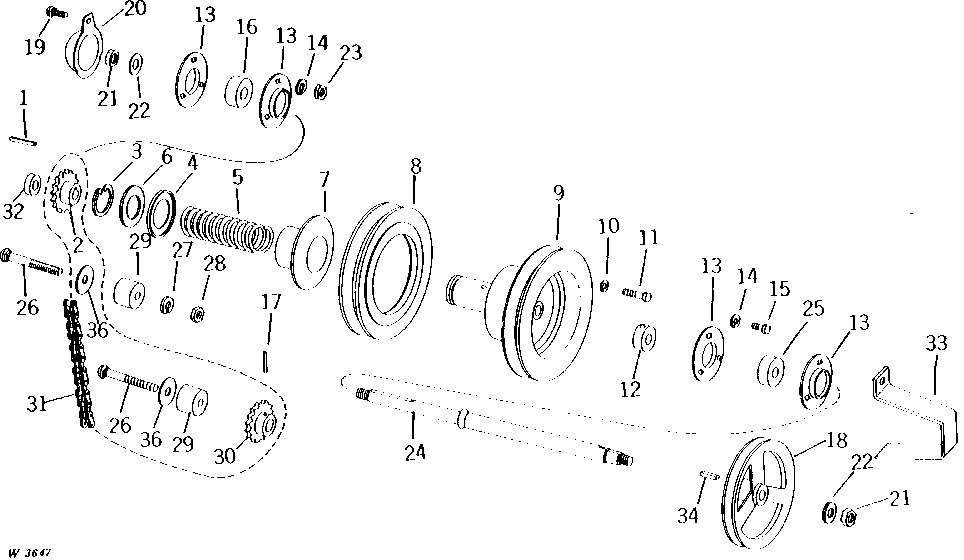

COUNTERSHAFT, COUNTERSHAFT SHEAVES, AND SPROCKET [A13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(CUT FROM H64373, 12-INCH LENGTH)
2	W12615	1	CHAIN SPROCKET	(FOR SINGLE-SWATH)
3	W20989	1	SNAP RING	(SUB FOR DT2118W)
4	W12718	1	CAP	-
5	W14432	1	SPRING	(SUB FOR W13743)
6	W10729	1	THRUST WASHER	-
7	W14435	1	HALF SHEAVE	(SUB FOR W12721)
8	W18188	1	PULLEY	(SUB FOR W12720)
9	W14436	1	PULLEY	(SUB FOR W12719)
10	12H302	4	Lock Washer	1/4"
11	19H1727	4	CAP SCREW	1/4" X 1-1/2"
12	JD8554	1	Eccentric Locking Collar	-
13	M80293	1	Pressed Flanged Housing	(SUB FOR L1921C)
14	12H303	6	Lock Washer	5/16"
15	19H1900	3	Cap Screw	5/16" X 3/4"
16	JD8562	1	Ball Bearing	-
17	34H315	1	Spring Pin	1/4" X 1-3/8"
18	W13706	1	PULLEY	(FOR DOUBLE-SWATH)
19	03H1524	3	Bolt	5/16" X 1"
20	H29523	1	EXHAUST CAP	-
21	U14502	1	LOCK NUT	-
22	24H1351	1	Washer	9/16" X 1-1/2" X 0.164"
23	14H785	3	Nut	5/16"
24	W13673	1	SPINDLE	-
25	JD8555	1	BALL BEARING	-
26	03H1512	2	Bolt	3/8" X 2-1/2"
27	12H304	2	Lock Washer	3/8"
28	14H1076	2	Nut	3/8"
29	W12603	2	BUSHING	(FOR SINGLE-SWATH)
30	W12612	1	CHAIN SPROCKET	(FOR SINGLE-SWATH)
31	-	1	Part 31	(FOR SINGLE-SWATH) (123 LINKS, NO. 40, 1/2" PITCH, INCLUDING ONE P33541 COUPLER LINK AND ONE P33542 OFFSET LINK)
32	W13744	1	SPACER	(FOR DOUBLE-SWATH)
33	W13819	1	GUARD	(FOR SINGLE-SWATH)
34	H64373	1	Shaft Key	(FOR DOUBLE-SWATH) (SUB. FOR W12192
35	W14430	1	SHAFT	(FOR COUNTERSHAFT REMOVAL)
36	24H1316	2	WASHER	13/32" X 2-3/4" X 0.065"

COUNTERSHAFT, COUNTERSHAFT SHEAVES, AND SPROCKET [A13]
