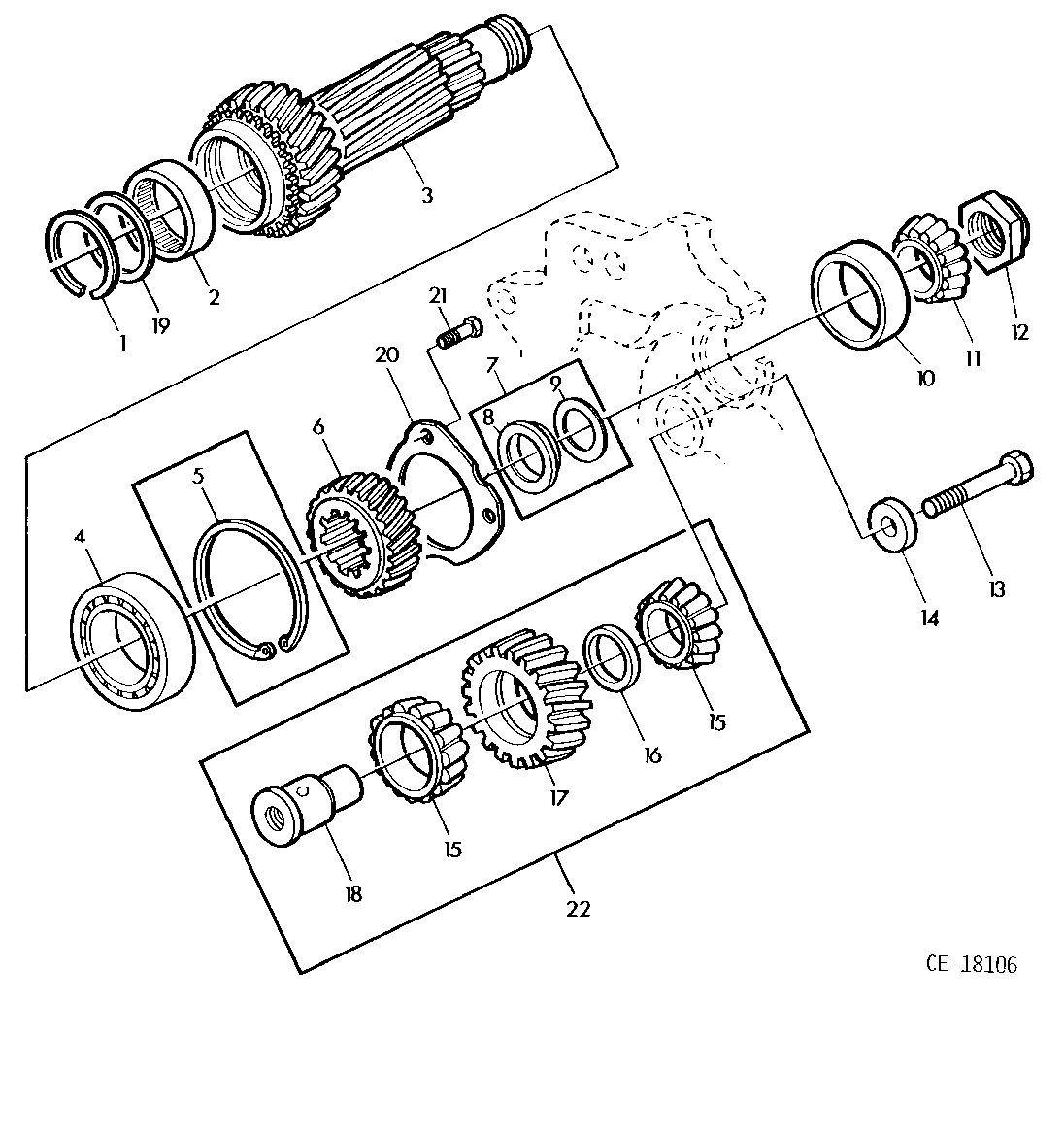

HOLLOW DRIVE SHIFT (SYNCHRONIZED TRANSMISSION) [02C14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L60559	1	Snap Ring	-
1	L33270	1	Snap Ring	(FOR AL60017)
2	AL63097	1	Needle Bearing	OD=50MM
2	JD10072	1	Needle Bearing	OD=55MM
3	AL64058	1	DRIVE SHAFT	Z=32/16 ID=50MM
3	AL60017	1	DRIVE SHAFT	Z=32/16 ID=55MM (ORD AL63097, AL64058, L60559, L60560) (SUB FOR AL40787)
4	JD10340	1	Tapered Roller Bearing	-
5	L41669	1	Snap Ring	-
6	L41637	1	GEAR	Z=26
7	AL60717	1	Shim Kit	-
8	L56377	1	Lock Washer	TK=5,25MM
8	L56005	1	Lock Washer	TK=5,20MM
8	L58114	1	Washer	TK=5,15MM
8	L58113	1	Washer	TK=5,10MM
8	L58112	1	Washer	TK=5,05MM
8	L58111	1	Washer	TK=5,00MM
8	L58110	1	Washer	TK=4,95MM
8	L58108	1	Washer	TK=4,85MM
8	L58107	1	Washer	TK=4,80MM
8	L58115	1	Washer	TK=4,75MM
8	L58118	1	Washer	TK=4,70MM
8	L58119	1	Washer	TK=4,65MM
8	L58120	1	Washer	TK=4,60MM
8	L58121	1	Washer	TK=4,55MM
8	L58109	1	Washer	TK=4,90MM
9	L58721	1	Shim	TK=0,70MM
10	JD10336	1	Bearing Cup	-
11	JD10337	1	Bearing Cone	-
12	L55841	1	Nut	-
13	19M7329	1	Cap Screw	M10X75
14	L33065	1	Washer	-
15	JD10330	2	Bearing Cone	-
16	L41649	1	Bushing	TK=8,00MM
16	L41657	1	Bushing	TK=8,40MM
16	L41656	1	Bushing	TK=8,35MM
16	L41655	1	Bushing	TK=8,30MM
16	L41654	1	Bushing	TK=8,25MM
16	L41653	1	Bushing	TK=8,20MM
16	L41652	1	Bushing	TK=8,15MM
16	L41651	1	Bushing	TK=8,10MM
16	L41650	1	Bushing	TK=8,05MM
17	-	1	Part 42	Z=25, NSEP (ORD AL66360)
18	-	1	Part 43	NSEP (ORD AL66360)
19	L60560	1	Thrust Washer	(FOR AL64058)
20	L57619	1	Flange	(FOR AL64570)
21	T22874	3	BOLT	(FOR AL64570) (SUB FOR L61496)
22	AL66360	1	GEAR	-

HOLLOW DRIVE SHIFT (SYNCHRONIZED TRANSMISSION) [02C14]
