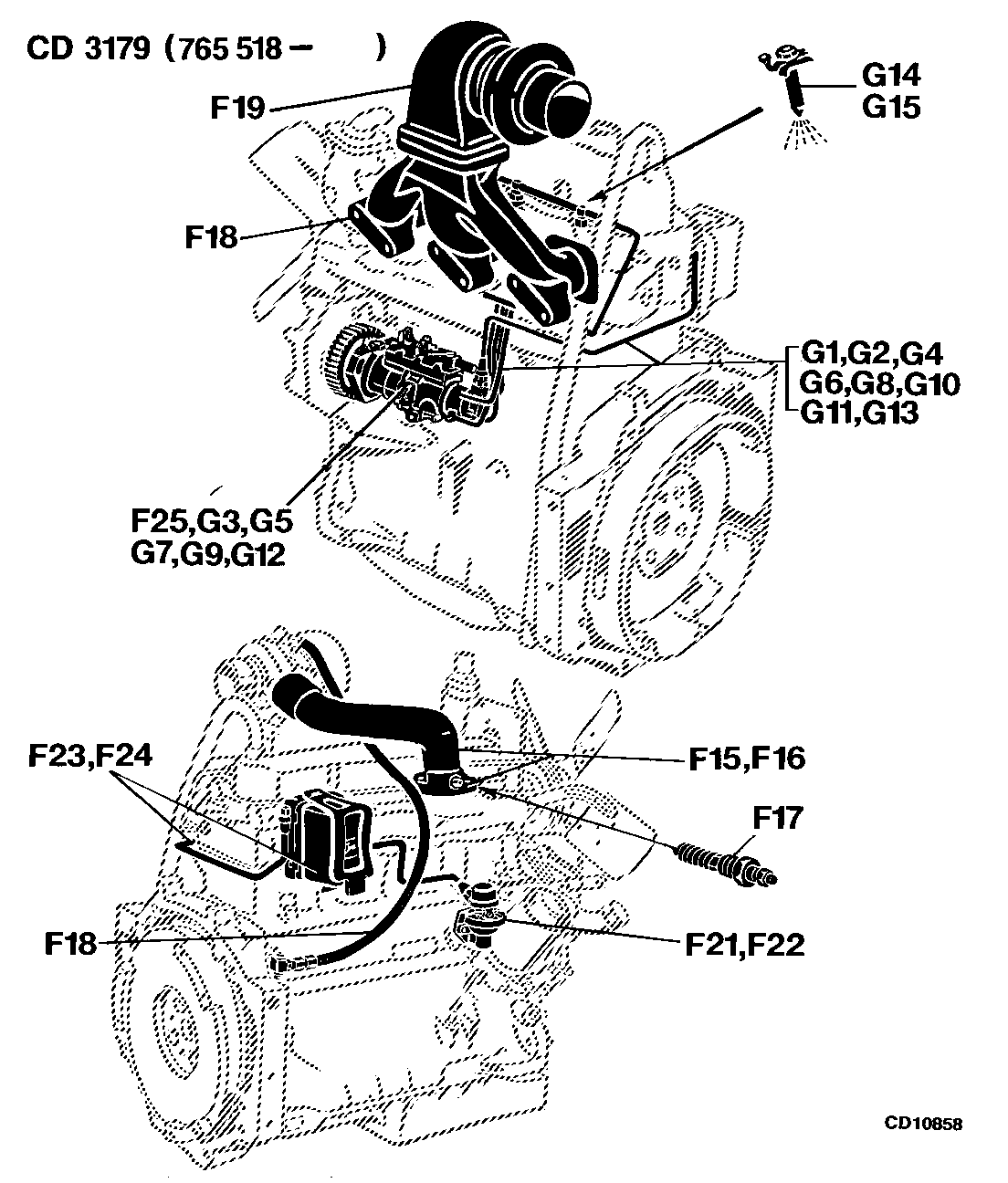

31 FUEL SYSTEM AND AIR INTAKE SYSTEM (765518- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	FUEL INJECTION PUMP/RADIAL OUTLETS [01G05]	-
-	-	1	TURBOCHARGER"AIRESEARCH" [01F19]	-
-	-	1	FUEL TRANSFER PUMP "SOFABEX" (SHEET METAL COVER) [01F21]	-
-	-	1	FUEL TRANSFER PUMP "SOFABEX" (COMPOSITE MATERIAL COVER) [01F22]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP/RADIAL OUTLETS [01G10]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP/RADIAL OUTLETS [01G06]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP/RADIAL OUTLETS [01G01]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP(AXIAL OUTLETS)CONVERSION KIT [01G11]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP(AXIAL OUTLETS)CONVERSION KIT [01G02]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP(AXIAL OUTLETS) [01G13]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP(AXIAL OUTLETS) [01G08]	-
-	-	1	FUEL LINES FOR FUEL INJECTION PUMP(AXIAL OUTLETS) [01G04]	-
-	-	1	FUEL INJECTION PUMP/RADIAL OUTLETS [01G09]	-
-	-	1	AIR HEATER [01F17]	-
-	-	1	FUEL INJECTION PUMP/RADIAL OUTLETS [01F25]	-
-	-	1	FUEL INJECTION PUMP/AXIAL OUTLETS [01G12]	-
-	-	1	FUEL INJECTION PUMP/AXIAL OUTLETS [01G07]	-
-	-	1	FUEL INJECTION PUMP/AXIAL OUTLETS [01G03]	-
-	-	1	FUEL INJECTION NOZZLE "STANADYNE" [01G15]	-
-	-	1	FUEL INJECTION NOZZLE "STANADYNE" [01G14]	-
-	-	1	FUEL FILTER [01F24]	-
-	-	1	FUEL FILTER [01F23]	-
-	-	1	EXHAUST MANIFOLD [01F18]	-
-	-	1	AIR INTAKE [01F16]	-
-	-	1	AIR INTAKE [01F15]	-

31 FUEL SYSTEM AND AIR INTAKE SYSTEM (765518- )
