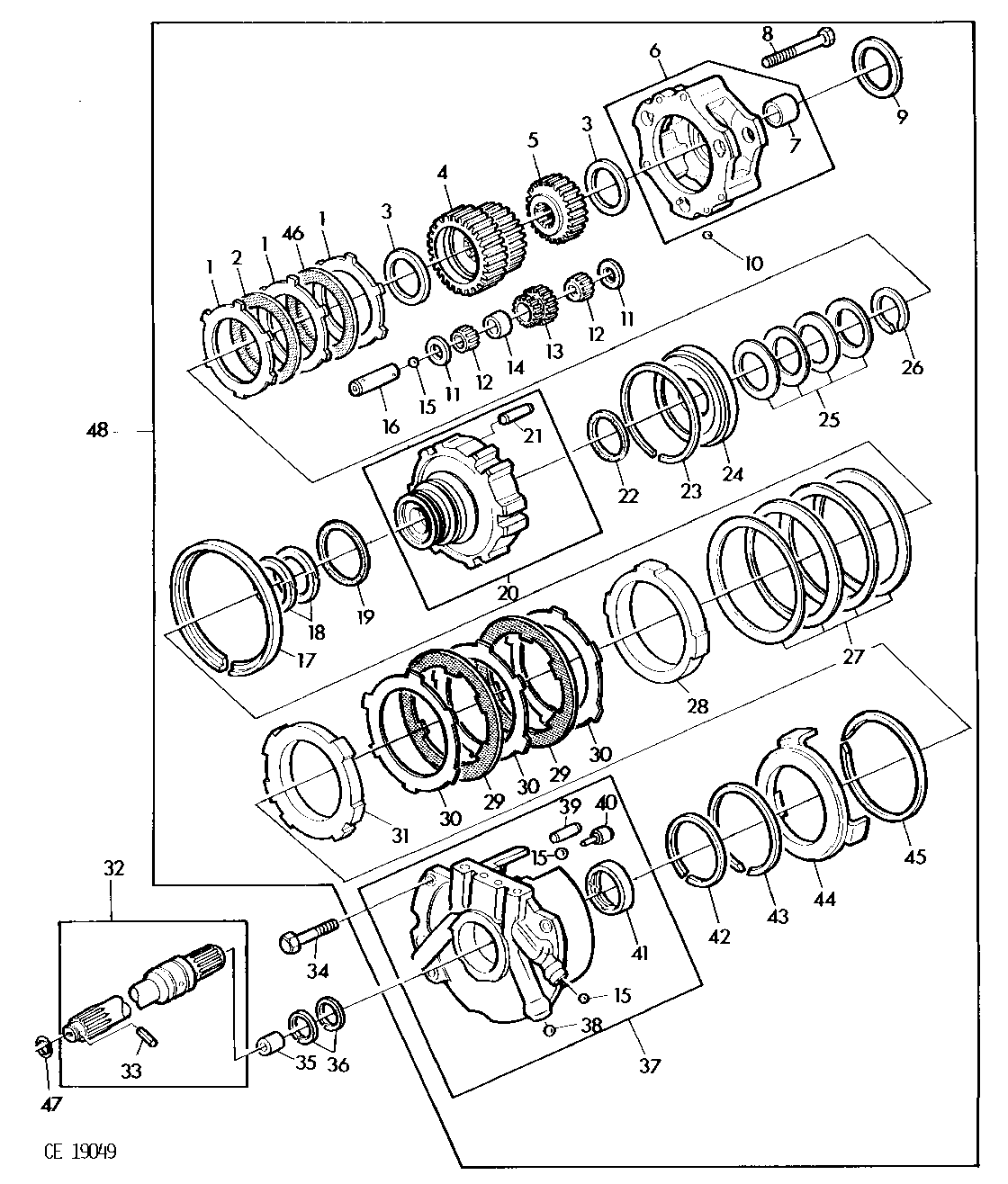

HI-LO CLUTCH (SYNCHRONIZED TRANSMISSION) [02B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64197	3	Clutch Plate	-
2	AL69559	1	Disk With Inner Spline	(SUB FOR AL38239)
3	R33083	2	Washer	-
4	AL28751	1	Pinion	-
5	L36661	1	Pinion	-
6	AL30686	1	Planet Pinion Carrier	-
7	L34116	1	Bushing	-
8	19H1904	3	Cap Screw	5/16"X3"
9	L33159	1	Thrust Washer	-
10	H871R	8	Ball	5MM (3/16")
11	R54961	6	Thrust Washer	-
12	JD9932	6	Needle Bearing	(ORD (2) AL39254, L41032)
12	AL39254	6	Needle Bearing	-
13	L33157	3	Pinion	-
14	L41032	3	Washer	(SUB FOR R58209)
15	L38718	5	Ball	6MM(1/4")
16	L33158	3	Pinion Shaft	-
17	L33303	1	Snap Ring	-
18	L33155	2	Ring	-
19	R50349	1	Washer	-
20	AL28748	1	Drum	-
21	R38295	3	Needle Roller	-
22	R39304	1	Washer	-
23	R39280	1	Piston Ring	-
24	R39285	1	Piston	-
25	R50348	4	Disk Spring	-
26	R39299	1	Snap Ring	-
27	L62954	4	Disk Spring	(SUB FOR L33161)
28	L33162	1	Plate	-
29	AL38238	2	Disk With Inner Spline	-
30	L33163	3	Clutch Plate	-
31	L33164	1	Plate	-
32	AL30899	1	Shaft	-
33	34M7104	1	Spring Pin	2,5X10MM
34	19H2552	4	CAP SCREW	3/8"X1-1/8"
35	L33134	1	Bushing	-
36	T28807	2	Piston Ring	-
37	AL40807	1	Housing	(MARKED L41677) (ORD W/ L40773)
38	N14472	1	BALL	8MM (5/16")
39	R30587	2	Dowel Pin	-
40	L33369	1	Pin Fastener	-
41	L34115	1	Bushing	-
42	L62161	1	Seal	(SUB FOR L34185)
43	L62272	1	Seal	(SUB FOR L33167)
44	AL64922	1	Piston	(SUB FOR AL28756)
45	L33165	1	Snap Ring	-
46	AR39128	1	DISK, WITH INNER SPLINE	-
47	R65548	1	O-RING	-
48	AL40806	1	High-Low Clutch	-
