FLYWHEEL SCREEN BLOWER HOUSING AND ENGINE SHROUDS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M70322	3	Screw	NLA; ORDER 21M7246 AND 24M7267
2	21M7283	4	Screw	M5 X 8
3	M70084	1	Guard	-
4	M140534	1	Kit	SUB FOR AM109240; (INCLUDES (3) SHIMS - USE AS NEEDED)
5	M70119	1	Nut	NLA
6	M70120	1	Washer	NLA
7	M140534	1	Kit	SUB FOR AM109240); (INCLUDES (3) SHIMS - USE AS NEEDED)
8	19M7866	3	Screw	M8 X 20
9	M70082	1	Bracket	-
10	M70077	1	Housing	(ALSO ORDER AM117716)
11	M70074	1	Clamp	-
12	MIU11965	4	Bolt	-
12	M88525	4	Bolt	NLA; ORDER MIU11965
13	M79273	1	Shroud	-
14	M70080	1	Shroud	(ORDER AM109433)
15	19M7774	1	Screw	M6 X 12
16	M70081	1	Shroud	(ORDER AM109433)
17	M88490	1	Clamp	NLA
18	PT11217	1	Sleeve	NLA
19	M149301	1	Clamp	(SUB FOR M70076)
20	19M7861	1	Screw	M6 X 10
..	AM117716	1	Label Kit	(INCLUDES LABELS FOR AIR FILTER AND OIL MAINTENANCE DECALS.) (SUB FOR AM116832, AM116833, AM105745 OR AM105746)
..	AM109433	1	Kit	(NLA) SHROUD
..	AM109240	1	Kit	SCREEN AND SHIM

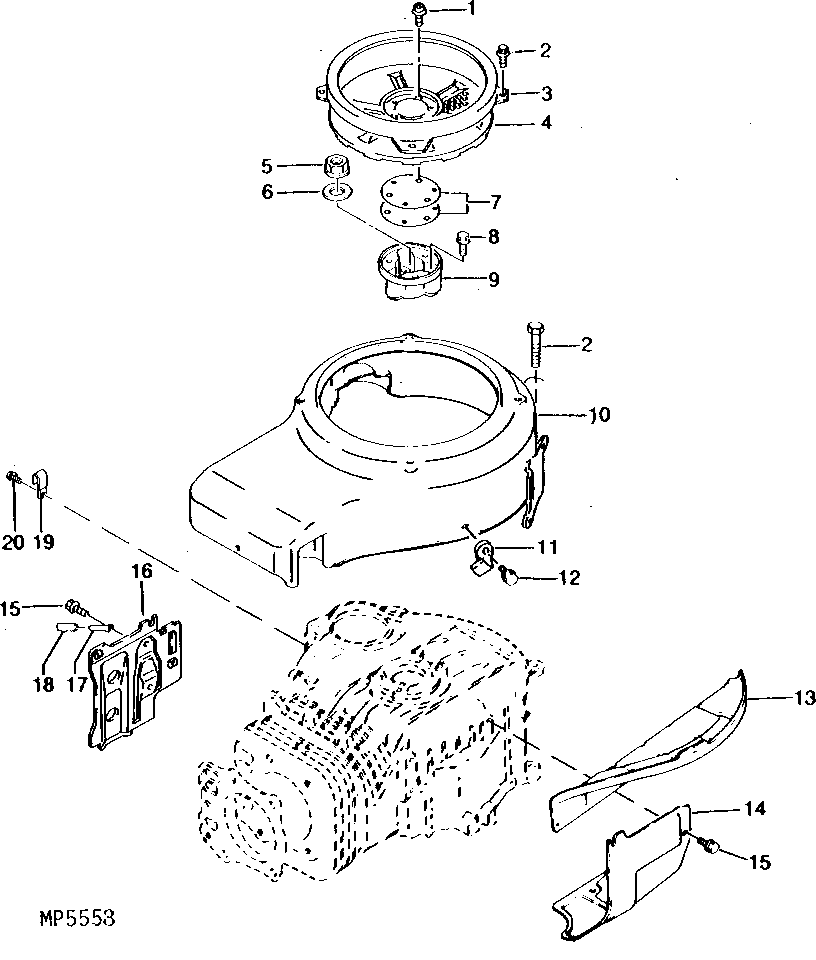

FLYWHEEL SCREEN BLOWER HOUSING AND ENGINE SHROUDS
