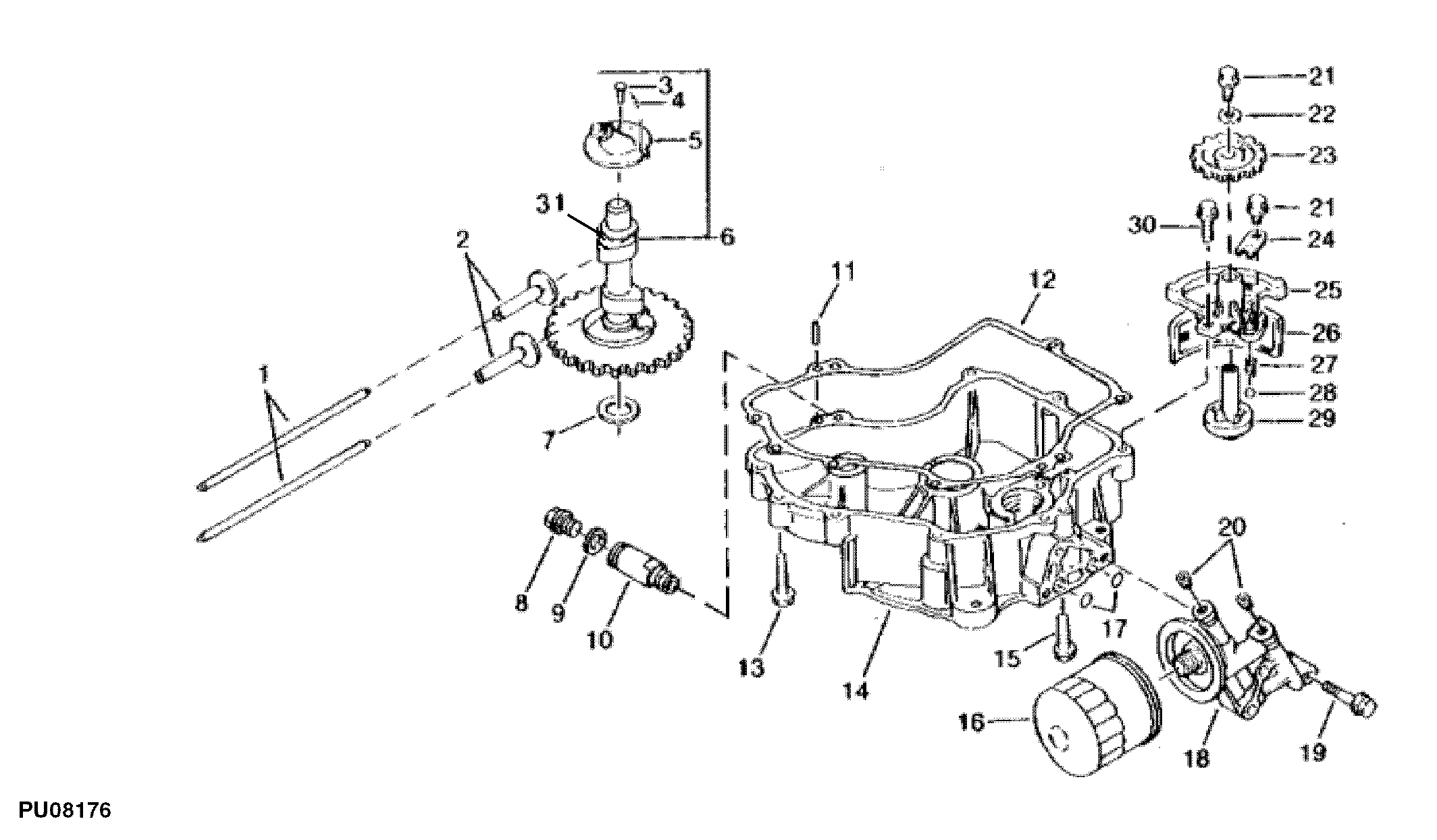

ENGINE OIL PUMP, FILTER, SUMP AND CAMSHAFT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M70040	2	Push Rod	-
2	M97231	2	Pin	(ORDER AM117232) (INCLUDES M70044) (SUB FOR M70041 OR AM109298)
3	-	2	Part 3	(ORDER AM117232) (SUB FOR M70043)
4	M70044	1	Spring	-
5	-	1	Part 5	AUTOMATIC COMPRESSION RELEASE (ORDER AM117232) (SUB FOR M70042)
6	AM117232	1	Shaft Kit	CAMSHAFT (SUB FOR AM105818, AM101672 OR AM109298) (INCLUDES (2) M97231)
7	AM102396	1	Kit	(FROM 1.54MM (.06") TO 1.85 MM (.07")), SHIMS
8	MIU11641	1	Drain Plug	(SUB FOR M88475 OR M119144)
9	M88476	1	Gasket	-
10	M97207	1	Extension	(SUB FOR M70110)
11	M74252	2	Pin	(SUB FOR M70057)
12	M143232	1	Gasket	(SUB FOR M70099 OR M97267)
13	19M8318	8	Screw	M8 X 45
14	AM117183	1	Cover	(SUB FOR AM102380 OR AM104364)
14	M73482	1	Plug	-
15	19M7868	1	Screw	M8 X 30
16	AM107423	1	Oil Filter	(K), (SUB FOR AM101054 OR AM105172)
17	M134017	2	O-Ring	(K), (SUB FOR M70071)
18	AM102375	1	Manifold	(K), (INCLUDES M97250) (ORDER AM105178) (NLA)
19	19M8317	3	Screw	M8 X 40, (K)
19	14M7273	3	Nut	M8
20	M97250	2	Cover	(K), (SUB FOR M88473)
21	19M7923	2	Cap Screw	M6 X 12
22	M95851	1	Washer	(SUB FOR M70070)
23	M70069	1	Helical Gear	-
24	M88520	1	Plate	-
25	AM101677	1	Cover	PUMP
26	M97206	1	Screen	(SUB FOR AM101678)
27	M70073	1	Spring	-
28	M88526	1	Ball	-
29	AM101676	1	Oil Pump	-
30	19M7867	2	Screw	M8 X 25
31	AM117233	1	Camshaft	-
..	19M7866	4	Screw	M8 X 20, (ENGINE TO ENGINE BASE)
..	AM105178	1	Filter Kit	OIL FILTER (INCLUDES PARTS MARKED (K)) (INCLUDES (3) M149535)

ENGINE OIL PUMP, FILTER, SUMP AND CAMSHAFT
