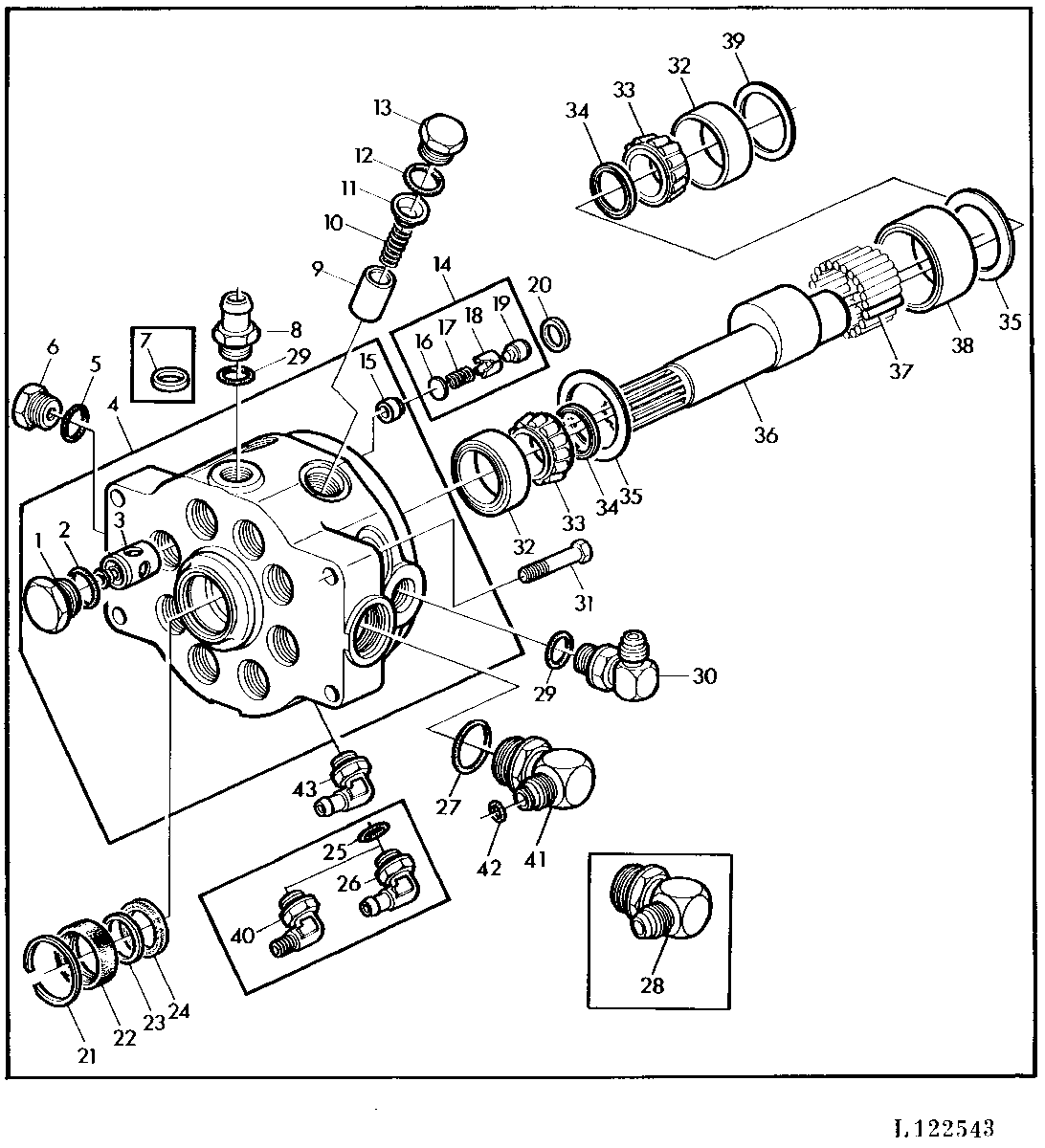

HYDRAULIC PUMP(40CM3=2,4CU.IN.)MODEL NO.34PP1 [03B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78293	8	FITTING	(SUB FOR R44823, R51912)
2	R27149	8	O-Ring	-
3	AR53301	8	VALVE	(SUB FOR AR26758)
4	AR47580	1	HOUSING	(MARKED R45228) (ORD AL37265, AR97872, U12547)
5	R56751	1	O-Ring	-
6	R27175	1	Drain Plug	1-1/16"
7	R35827	1	WASHER	(ORD R26906)
8	R39215	1	Fitting	-
9	R27150	8	PISTON	-
10	R62372	1	Spring	KIT (8) (SUB FOR AR33821, AR55186, AR76762)
11	AR101236	1	SHIELD	KIT(8) (SUB FOR R56749)
12	R56463	8	O-Ring	-
13	R45438	8	Fitting	-
14	RE23382	8	Valve	(SUB FOR AR52785, AR96613)
15	R105583	8	Valve Seat Insert	(SUB FOR R39067)
16	R49297	1	DISK	-
17	R39228	1	SPRING	-
18	R48738	1	GUIDE	-
19	R83508	1	Stop	(SUB FOR R49298, R72886 APPL)
20	R69279	8	Washer	(SUB FOR R26149, R56754)
21	R26137	1	Snap Ring	-
22	RE28790	1	SEAL	(SUB FOR AR52224)
23	R56753	1	SHIM	-
24	R39729	1	O-RING	-
25	R26287	1	O-Ring	-
26	AL28468	1	Elbow Fitting	(ORD L63540)
27	U13639	1	O-Ring	-
28	AL39129	1	Elbow Fitting	(ORD AL59809, L58310) (SUB FOR AR39071)
29	R26906	2	O-Ring	-
30	AL31989	1	Elbow Fitting	-
31	19H1974	4	Cap Screw	1/2"X2-3/4"
32	JD8223	2	Bearing Cup	-
33	JD8192	2	BEARING CONE	-
34	R34349	2	WASHER	-
35	R60732	2	WASHER	(SUB FOR R42467)
36	R39843	1	Shaft	-
37	R27145	36	NEEDLE ROLLER	-
38	R45874	1	BEARING RACE	-
39	R27478	1	SHIM	TK=0,15MM (.006")
39	R27479	1	SHIM	TK=0,25MM (.010")
40	AR26746	1	Elbow Fitting	-
41	AL59809	1	Elbow Fitting	-
42	L58310	1	O-Ring	-
43	L63540	1	Fitting	(SUB FOR AL28468)

HYDRAULIC PUMP(40CM3=2,4CU.IN.)MODEL NO.34PP1 [03B03]
