HYDR.TRAILER BRAKE-MANUAL OR POWER STEERING (OLD TYPE) [02G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

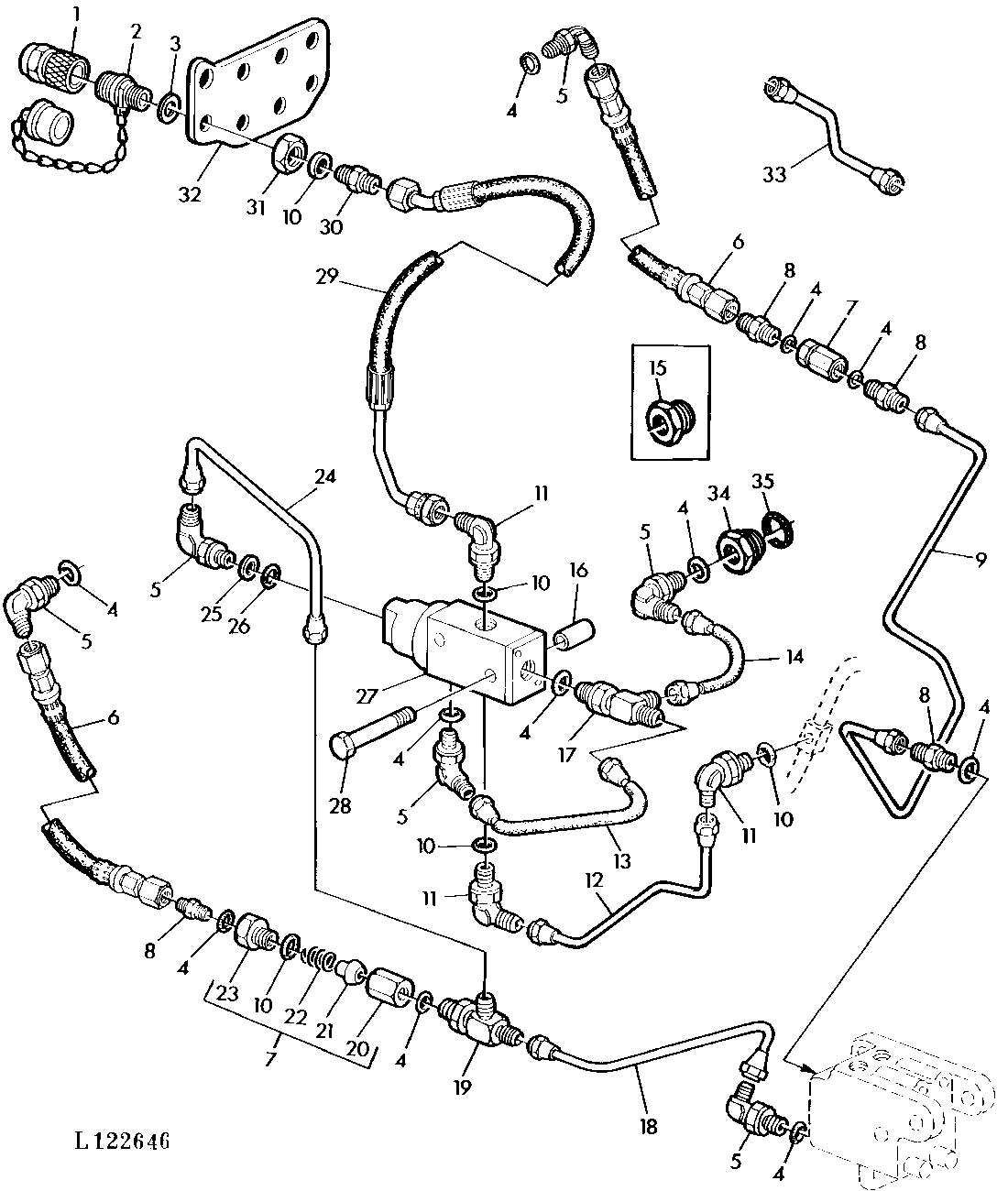

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
2	AR52372	1	PLUG	-
3	L37599	1	Sealing Ring	(SUB FOR 51M4236)
4	R26287	11	O-Ring	-
5	AR26746	6	Elbow Fitting	-
6	AL36198	2	Hydraulic Hose	(SUB FOR AL25102)
6	AL36198	1	Hydraulic Hose	-
7	AL25103	2	Valve	-
8	R27139	4	FITTING	-
9	AL25101	1	OIL LINE	-
9	AL25111	1	OIL LINE	(C)
9	AL25111	1	OIL LINE	-
10	R26448	6	O-Ring	-
11	AR26725	3	ELBOW FITTING	-
12	AL23897	1	OIL LINE	(A)
12	AL23899	1	OIL LINE	(B)
13	AL36123	1	Hydraulic Hose	(SUB FOR AL25104)
14	AL36122	1	Hose	(SUB FOR AL23076)
15	L28639	1	Pipe Plug	(ORD L41524, L41547)
16	L28809	1	SPACER	(A) 14X66MM
16	28H1878	1	SPACER	(B) 3/8"X.438"
16	24H1122	1	Washer	3/8"X7/8"X.075"
17	AL25791	1	TEE FITTING	1,4MM
17	AL25099	1	TEE FITTING	1,2MM
18	AL25100	1	OIL LINE	-
18	AL25110	1	OIL LINE	(C)
18	AL25110	1	OIL LINE	-
19	AR45251	1	Tee Fitting	-
20	L30719	2	Valve	-
21	L30722	2	Poppet	-
22	L30720	2	Compression Spring	-
23	L30721	2	Valve Cover	-
24	AL25109	1	OIL LINE	-
24	AL25109	1	OIL LINE	(C)
24	AL25098	1	OIL LINE	-
25	51M4234	1	Sealing Ring	-
26	L53811	1	O-Ring	-
27	AL25867	1	VALVE	-
28	19H2054	1	CAP SCREW	3/8"X4-3/4"
29	AL35090	1	Hose	(SUB FOR AL24715)
30	R27212	1	Fitting	-
31	L40525	1	Nut	(SUB FOR L30206)
32	L30207	1	PLATE	-
33	AL29860	1	OIL LINE	-
34	L41524	1	Adapter Fitting	-
35	L41547	1	O-Ring	-

HYDR.TRAILER BRAKE-MANUAL OR POWER STEERING (OLD TYPE) [02G11]
