RADIATOR COMPARTMENT PANELS, COVER AND ISOLATORS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7043457	1	Cover	-
1	-	1	Part 2	( J271030 NO LONGER AVAILABLE)
1	19M7762	1	Cap Screw	M5 X 5, (SUB FOR J901030)
1	24M7346	1	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
2	-	1	Part 5	( J281030 NO LONGER AVAILABLE)
2	19M7662	1	Cap Screw	M10 X 30, (SUB FOR J901030)
2	4486055	1	Washer	-
4	7043458	1	Support	-
5	-	2	Part 9	( J271025 NO LONGER AVAILABLE)
5	19M7402	2	Cap Screw	M10 X 25, (SUB FOR J901025)
5	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
7	9757954	1	Stop	-
8	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)
8	4486055	2	Washer	-
8	-	2	Part 13	( J281030 NO LONGER AVAILABLE)
10	4609950	2	Stop	(SUB FOR 4424157)
11	-	2	Part 17	( J260635 NO LONGER AVAILABLE)
11	19M7177	2	Cap Screw	M6 X 35, (SUB FOR J900635)
11	24M7054	2	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
13	9751797	1	Latch	-
14	24M7054	1	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
15	M800051	1	Pin	(SUB FOR 4022696)
17	-	1	Part 23	( 8105414 NLA)
18	24M7346	1	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
18	19M7662	1	Cap Screw	M10 X 30, (SUB FOR J901030)
18	-	1	Part 32	( J271030 NO LONGER AVAILABLE)
19	-	1	Part 35	( J281025 NO LONGER AVAILABLE)
19	19M7402	1	Cap Screw	M10 X 25, (SUB FOR J901025)
19	4486055	1	Washer	-
21	8093717	1	Cover	-
22	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
22	19M7402	4	Cap Screw	M10 X 25, (SUB FOR J901025)
22	-	4	Part 41	( J271025 NO LONGER AVAILABLE)
24	8093757	1	Cover	-
25	24M7346	6	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
25	19M7402	6	Cap Screw	M10 X 25, (SUB FOR J901025)
25	-	6	Part 50	( J271025 NO LONGER AVAILABLE)
27	8092568	1	Cover	-
29	12H294	1	Lock Washer	5/8", (SUB FOR A590916)
30	24M7053	1	Washer	17 X 30 X 3 mm, (SUB FOR A590116)
31	-	2	Part 61	( J271025 NO LONGER AVAILABLE)
31	19M7402	2	Cap Screw	M10 X 25, (SUB FOR J901025)
31	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
32	19M8035	1	Cap Screw	M16 X 35, (SUB FOR J921635)
33	8084557	1	Cover	-
17A	7040103	1	Cover	-
17B	4654537	1	Isolator	-
17C	4654538	1	Isolator	-
17D	4654539	1	Isolator	-
17E	4651306	1	Isolator	-
17F	4653335	1	Isolator	-
17G	4653336	1	Isolator	-
17H	4653337	1	Isolator	-
21A	-	1	Part 39	( 8092493 NOT AVAILABLE FOR SERVICE)
21B	4600582	1	Isolator	-
24A	-	1	Part 45	( 8090176 NOT AVAILABLE FOR SERVICE)
24B	4600575	1	Isolator	-
24C	4600574	1	Isolator	-
24D	4600576	1	Isolator	-
24E	4600583	1	Isolator	-
27A	-	1	Part 54	( 8090815 NOT AVAILABLE FOR SERVICE)
27B	-	1	Part 55	( 4600578 NOT AVAILABLE FOR SERVICE)
27C	-	2	Part 56	( 4600579 NOT AVAILABLE FOR SERVICE)
27D	4600581	1	Isolator	-
27E	4600946	1	Isolator	-
33A	4456596	1	Isolator	-
33B	-	1	Part 67	( 3093565 NO LONGER AVAILABLE)

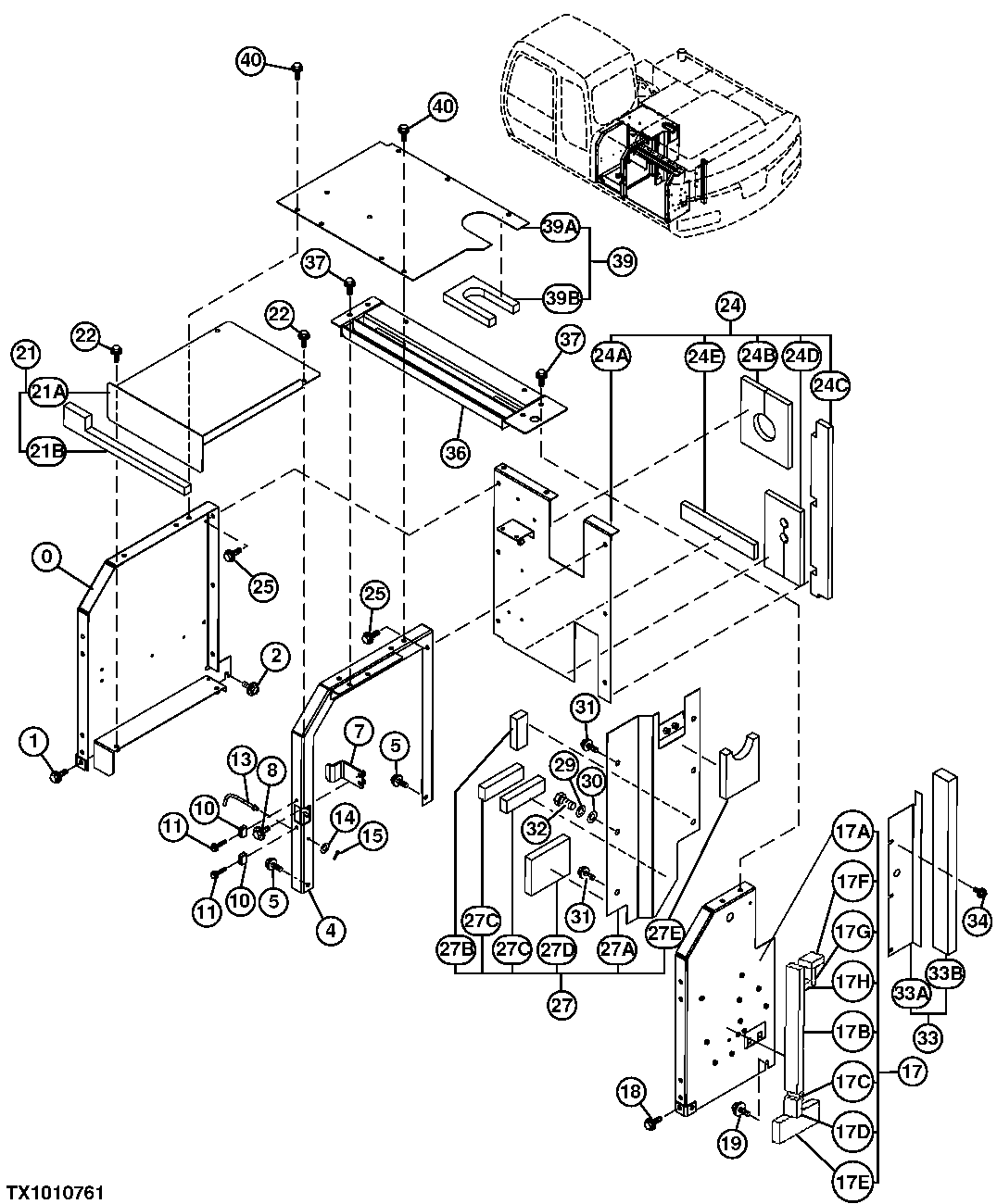

RADIATOR COMPARTMENT PANELS, COVER AND ISOLATORS
