CAB LEFT AND REAR WINDOWS, ROOF, AND HANDRAIL

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9248228	1	Cab	(INCLUDES ALL PARTS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)
1	-	1	Part 2	( 4486187 NOT AVAILABLE FOR SERVICE)
6	4602567	1	Windowpane	Green
6	-	1	Part 3	Bronze, (SUB FOR 4468944 OR 4448311 ) (SUB 4602567 ( 4602580 NLA))
7	4400079	1	Seal	-
9	4602569R	1	Windowpane	(SUB FOR 4602569)
10	-	1	Part 7	( 4320150 NOT AVAILABLE FOR SERVICE)
10	19M8425	1	Cap Screw	M6 X 16
10	24H1287	1	Washer	9/32" X 5/8" X 0.065"
10	12M7006	1	Lock Washer	6 mm
11	4456181	2	Bracket	-
12	-	4	Part 12	( J271025 NOT AVAILABLE FOR SERVICE)
12	19M7402	4	Cap Screw	M10 X 25, (SUB FOR J901025)
12	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
13	4456182	1	Isolator	-
14	4456183	1	Isolator	-
15	4456184	1	Isolator	-
16	4372224	5	Screw With Washer	-
17	4456185	1	Nut	-
18	FYA00021501	1	Bracket	SUB FOR 4477457
19	4602577	1	Isolator	-
20	-	4	Part 22	( 4372219 NLA)
20	19M7662	4	Cap Screw	M10 X 30, (SUB FOR J901030)
20	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J922010)
21	4372088	2	Clip	-
22	4453667	1	Isolator	-
23	4610143	1	Handrail	-
24	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
24	19M7402	2	Cap Screw	M10 X 25, (SUB FOR J901025)
24	-	2	Part 28	( J271025 NOT AVAILABLE FOR SERVICE)
25	4456175	2	Isolator	-
26	4453662	1	Handrail	-
27	4453672	1	Isolator	-
28	4603008	1	Isolator	-
31	4453663	1	Handrail	(UNITS BUILT BEFORE SEPTEMBER 2002)
31	4668617	1	Handrail	(UNITS BUILT SEPTEMBER 2002 AND AFTER)
37	21M7420	2	Screw	M6 X 16, (SUB FOR M470616)
41	4607408	2	Stop	-
45	4607409	1	Bushing	-
47	4456654	1	Cover	-
55	4369675	2	Isolator	-
56	19M7550	2	Cap Screw	M10 X 35
56	12M7066	1	Lock Washer	10 mm
56	24H1305	2	Washer	13/32" X 13/16" X 0.065"
56	-	2	Part 42	( 4320149 NOT AVAILABLE FOR SERVICE)
59	4320163	2	Screw	-
60	-	2	Part 47	( 4372219 NLA) (UNITS BUILT BEFORE SEPTEMBER 2002)
60	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)(UNITS BUILT BEFORE SEPTEMBER 2002)
60	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J922010)(UNITS BUILT BEFORE SEPTEMBER 2002)
60	-	2	Part 50	( J271030 NLA) (UNITS BUILT SEPTEMBER 2002 AND AFTER)
60	19M7662	2	Cap Screw	M10 X 30, (UNITS BUILT SEPTEMBER 2002 AND AFTER)
60	24M7346	2	Washer	11 X 20 X 2 mm, (UNITS BUILT SEPTEMBER 2002 AND AFTER)
71	4369627	1	Striker	-
93	4453665	1	Sheet	-
95	4453666	14	Clip	-
97	4341450	1	Nut	(SUB FOR 4295662)

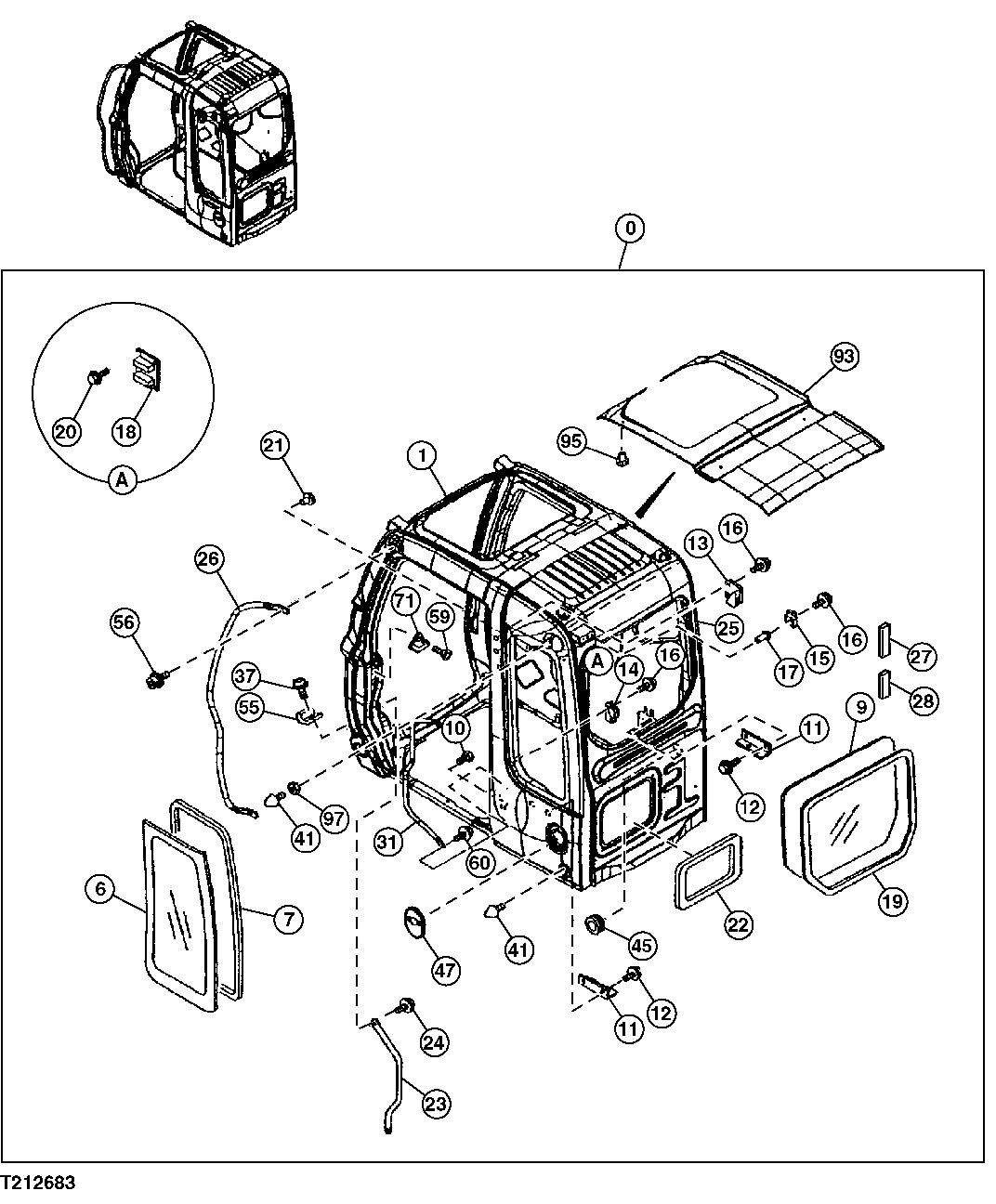

CAB LEFT AND REAR WINDOWS, ROOF, AND HANDRAIL
