Открытый узел

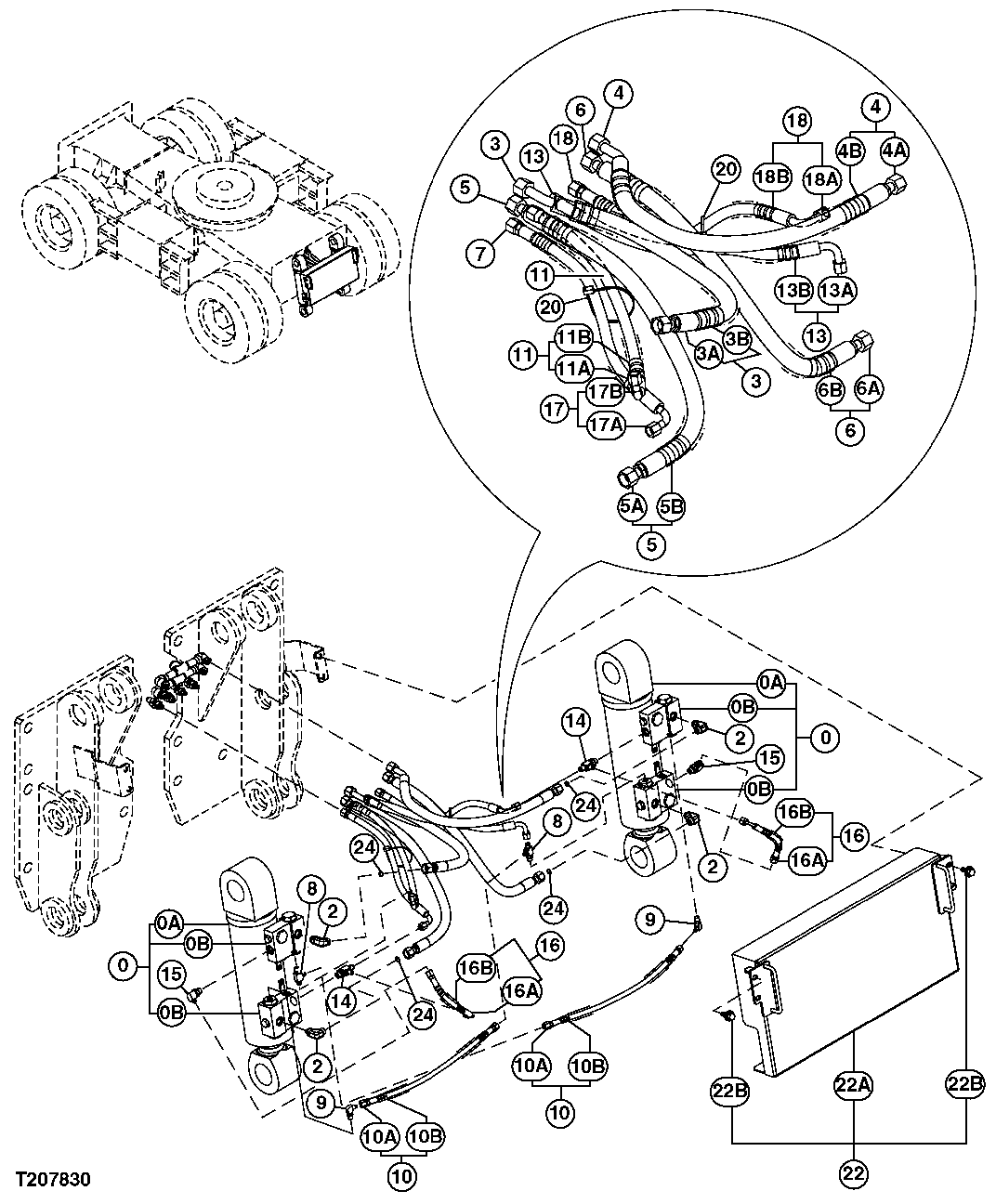

BLADE LINES

BLADE LINES

BLADE LINES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

BLADE LINES

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9225025	2	Cylinder	-
2	4202112	4	Elbow Fitting	-
2	CH11570	1	O-Ring	SUB FOR 4509180
3	-	1	Part 6	9224470 IS NOT AVAILABLE FOR SERVICE
4	-	1	Part 9	9231237 IS NOT AVAILABLE FOR SERVICE
5	-	1	Part 12	9231236 IS NOT AVAILABLE FOR SERVICE
6	-	2	Part 15	9224448 IS NOT AVAILABLE FOR SERVICE
8	M800650	1	Packing	SUB FOR 957366
8	4219346	2	Tee Fitting	-
9	M800650	1	Packing	SUB FOR 957366
9	4154670	2	Elbow Fitting	SUB FOR A852322
10	-	2	Part 22	9224009 IS NOT AVAILABLE FOR SERVICE
11	-	1	Part 25	9223929 IS NOT AVAILABLE FOR SERVICE
13	-	1	Part 28	9219217 IS NOT AVAILABLE FOR SERVICE
14	CH11570	1	O-Ring	SUB FOR 4509180
14	4246385	2	Tee Fitting	-
15	CH11570	1	O-Ring	SUB FOR 4509180
15	A852332	2	Elbow Fitting	-
16	-	2	Part 35	9224010 IS NOT AVAILABLE FOR SERVICE
17	-	1	Part 38	9231238 IS NOT AVAILABLE FOR SERVICE
18	-	1	Part 41	9231239 NLA, ORDER 4657103, E90991, AND A852243
18	A852243	1	Elbow Fitting	-
20	H77698	2	Tie Band	SUB FOR 4055312
22	-	1	Part 46	9223937 IS NOT AVAILABLE FOR SERVICE
24	T77857	4	O-Ring	SUB FOR 4138938
0A	4486447	1	Cylinder	NLA, ORDER 9225025
0B	9220919	2	Check Valve	SUB FOR 1030928
3A	4603525	1	Hose	-
3B	-	1	Part 8	MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH, 4327294 NLA
4A	4609601	1	Hose	-
4B	-	2	Part 11	MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH, 4327294 NLA
5A	4285799	1	Hose	-
5B	-	2	Part 14	MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH, 4327294 NLA
6A	4285797	1	Hose	-
6B	-	1	Part 17	MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH, 4327294 NLA
10A	AE42718	1	Hydraulic Hose	SUB FOR 4340881
10B	4327315	1	Hose Guard	4327293 NO LONGER AVAILABLE
11A	4489626	1	Hose	-
11B	4327315	1	Hose Guard	4327293 NO LONGER AVAILABLE
13A	4439953	1	Hose	SUB FOR 4482581
13B	4327315	1	Hose Guard	4327293 NO LONGER AVAILABLE
16A	AT202223	1	Hydraulic Hose	SUB FOR 4366745
16B	4327315	1	Hose Guard	4327293 NO LONGER AVAILABLE
17A	4454742	1	Hydraulic Hose	SUB FOR 4609608
17B	4327315	1	Hose Guard	4327293 NO LONGER AVAILABLE
18A	4657103	1	Hydraulic Hose	SUB FOR 4437436, TH4437436, AND 4488227
18B	-	1	Part 43	MAKE FROM E90991, CTL
22A	8091488	1	Cover	-
22B	-	4	Part 48	J271230 IS NOT AVAILABLE FOR SERVICE
22B	19M8011	4	Cap Screw	M12 X 30, SUB FOR J901230
22B	24M7345	4	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
