ASSIST HYDRAULIC FIELD KIT(ROTATOR)(MONO & TWO PIECE BOOM)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4609596	1	Bracket	-
1	-	2	Part 2	J271025 NO LONGER AVAILABLE
1	19M7402	2	Cap Screw	M10 X 25, SUB FOR J901025
1	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
3	4432560	1	Hydraulic Pressure Valve	-
4	-	2	Part 6	J260816 NO LONGER AVAILABLE
4	19M7162	2	Cap Screw	M8 X 16, SUB FOR J900816
4	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
6	A852332	1	Elbow Fitting	-
8	A852333	2	Elbow Fitting	-
9	A852433	1	Tee Fitting	-
11	-	1	Part 12	9207011 NO LONGER AVAILABLE
12	-	1	Part 15	9233241 NO LONGER AVAILABLE
13	4449264	1	Hose	-
15	4611224	1	Wiring Harness	-
18	3101252	1	Wiring Harness	-
19	4414207	4	Relay	-
20	J460614	2	Screw	-
30	3100509	1	Wiring Harness	-
75	-	1	Part 25	(TWO PIECE BOOM) (CONTAINS ALL COMPONENTS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES) (WHOLE GOODS) AT317409 NLA
75	-	1	Part 24	(MONO BOOM) (CONTAINS ALL COMPONENTS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES) (WHOLE GOODS) AT317394 NLA
11A	4451090	1	Hose	-
11B	4327315	1	Hose Guard	SUB FOR 4327293
12A	4449700	1	Hydraulic Hose	SUB FOR 4465688
12B	4327315	1	Hose Guard	SUB FOR 4327293

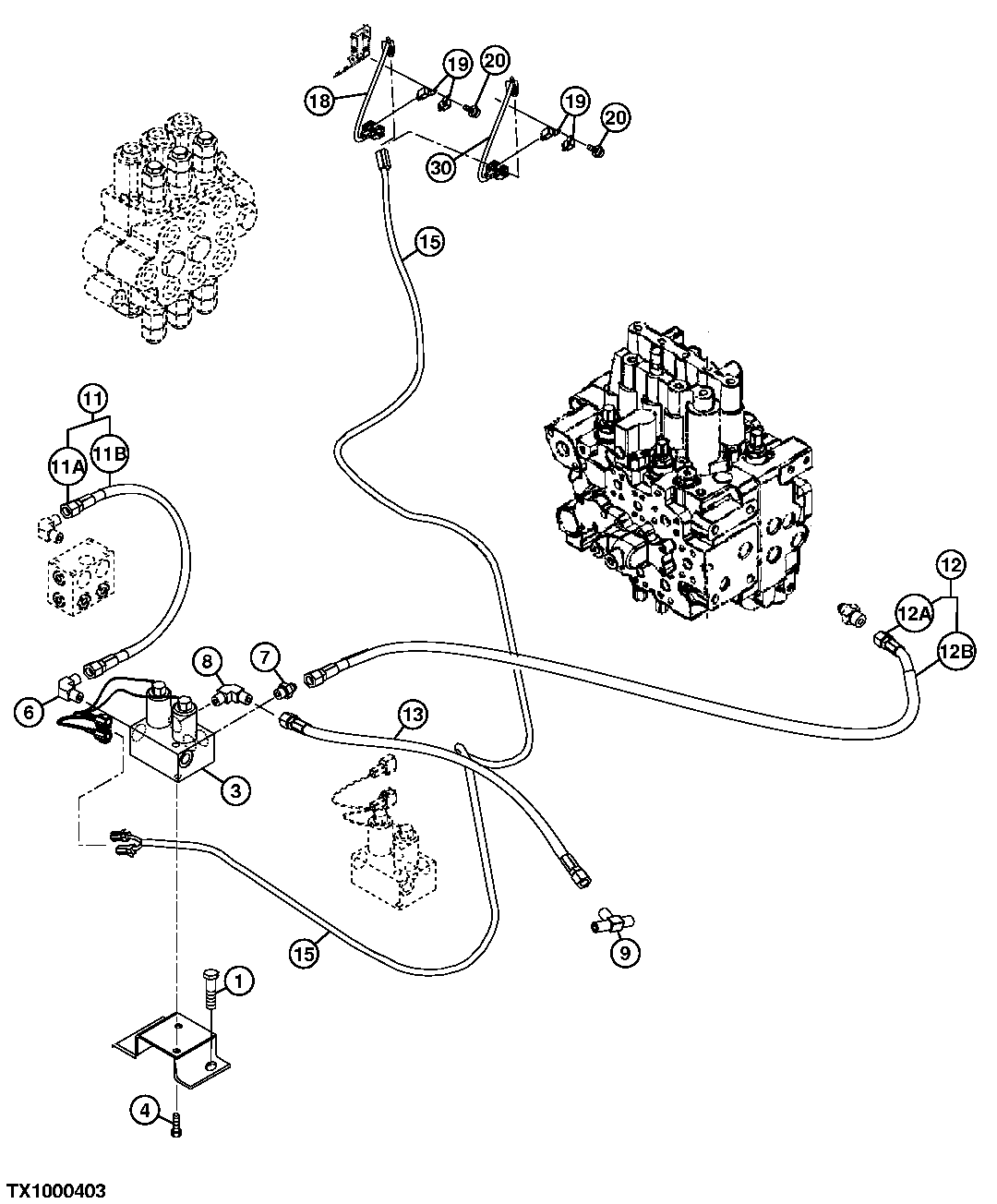

ASSIST HYDRAULIC FIELD KIT(ROTATOR)(MONO & TWO PIECE BOOM)
