A/C COMPRESSOR BRACKET, DRIVE BELT, AND REFRIDGERANT HOSES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7037600	1	Bracket	-
1	J241055	2	Bolt	-
2	19M8584	2	Cap Screw	M10 X 30, SUB FOR J241030
3	24M7028	4	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
4	12M7066	4	Lock Washer	10 mm, SUB FOR A590910
5	19M8433	4	Screw	M8 X 110, SUB FOR J780802
7	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
8	-	4	Part 8	12M7065 NLA
11	4346770	1	Pulley	-
12	4612328	1	V-Belt	SUB FOR 4439003
14	8082606	2	Bracket	-
15	-	4	Part 12	J260820 NO LONGER AVAILABLE
15	19M7139	4	Cap Screw	M8 X 20, SUB FOR J900820
15	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
16	-	4	Part 15	J271020 NO LONGER AVAILABLE
16	19M7938	4	Cap Screw	M10 X 20, SUB FOR J901020
16	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
19	4447722	1	Refrigerant Hose	-
20	-	2	Part 20	J260630 NO LONGER AVAILABLE
20	19M7318	2	Screw	M6 X 30, SUB FOR J900630
20	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
21	-	2	Part 23	J260625 NO LONGER AVAILABLE
21	19M7286	2	Cap Screw	M6 X 25, SUB FOR J900625
21	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
22	4484485	1	Refrigerant Hose	-
23	-	2	Part 29	J260820 NO LONGER AVAILABLE
23	19M7139	2	Cap Screw	M8 X 20, SUB FOR J900820
23	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
25	H77698	4	Tie Band	SUB FOR 4055312
26	R50454	3	Clamp	SUB FOR 4192034
27	T32854	1	Clamp	SUB FOR 4190282
28	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
28	19M7938	4	Cap Screw	M10 X 20, SUB FOR J901020
28	-	4	Part 35	J271020 NO LONGER AVAILABLE
19A	CH11568	2	Packing	SUB FOR 4350187 AND 4226445
22A	M800650	2	Packing	SUB FOR 957366
22B	4475232	1	Cap	-

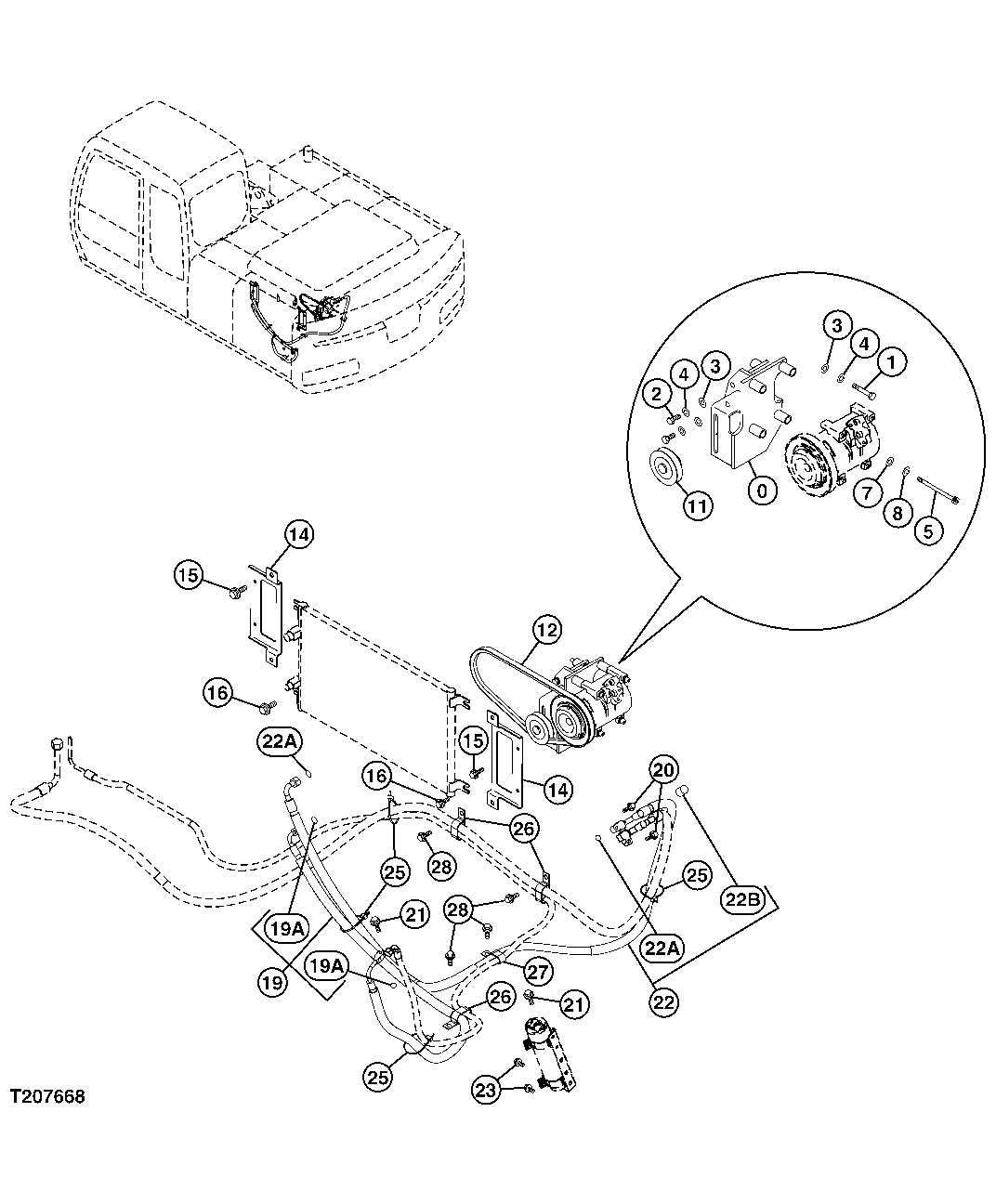

A/C COMPRESSOR BRACKET, DRIVE BELT, AND REFRIDGERANT HOSES

Нет текстового описания
