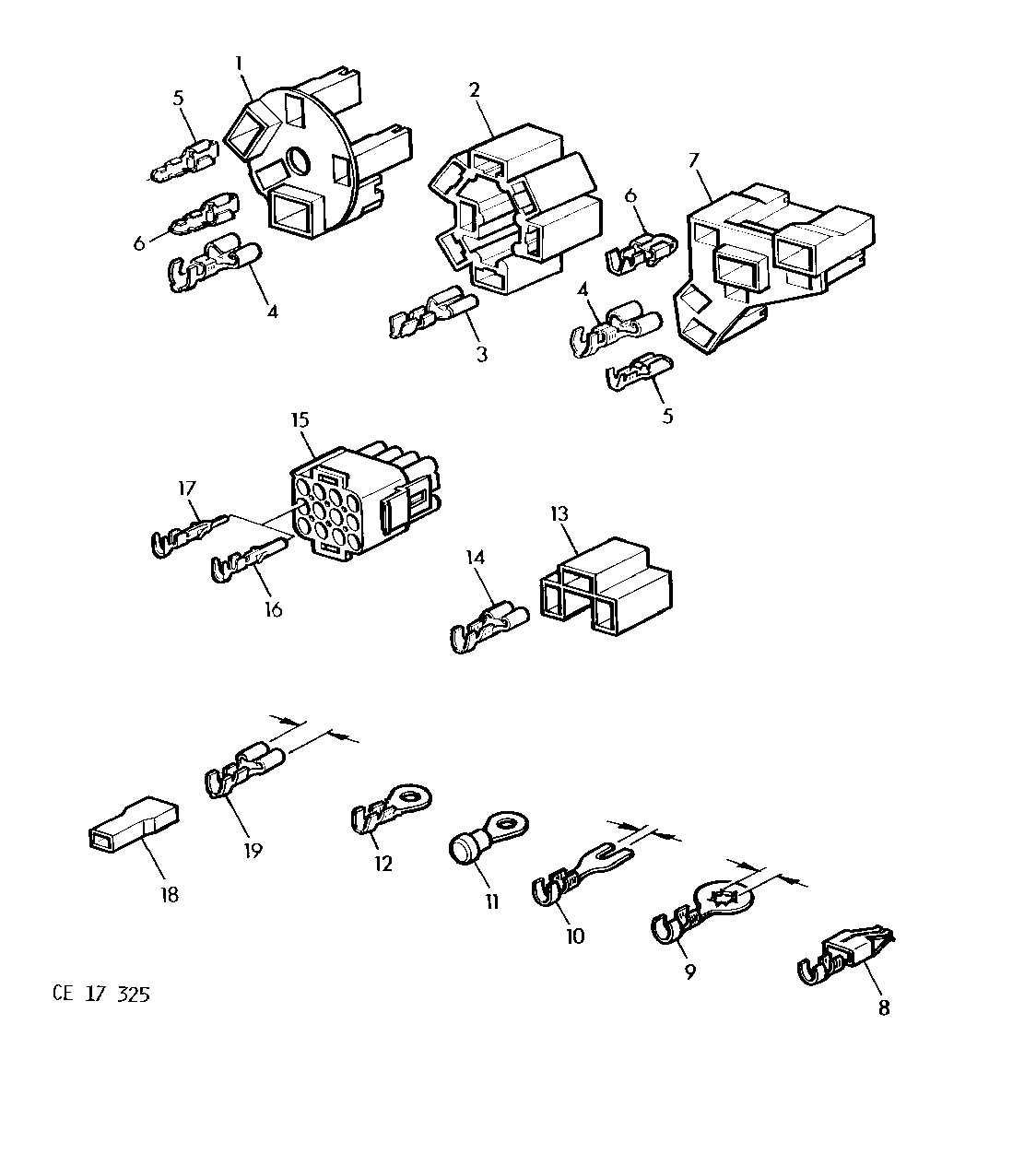

CABLE CLIPS CONNECTORS AND PLUGS [01H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L37848	1	Elec. Connector Terminal	-
2	L36996	1	Elec. Connector Housing	-
3	57M7041	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG 25
4	57M7108	1	Elec. Connector Terminal	(A) -5,3MM2/9,5MM PACKG 25
5	57M7106	1	Elec. Connector Terminal	(A) -4MM2/6,3MM PACKG 25
6	57M7089	1	Elec. Connector Terminal	(A) -2MM2/6,3MM PACKG 25
7	L37847	1	Elec. Connector Housing	-
8	57M7100	1	Elec. Connector Terminal	(A) -1,0MM2/6,3MM PACKG 25
8	57M7090	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG 25
8	57M7148	1	CONNECTOR	(A) -6,3MM2/4MM
9	57M7032	1	Elec. Connector Terminal	(A) -6MM 2/6MM
10	57M7054	1	Elec. Connector Terminal	(A) -2,5MM2/5MM
11	57M7175	1	Elec. Connector Terminal	(A) -16MM2/8MM
11	57M7176	1	Elec. Connector Terminal	(A) -2,5MM2/10MM
12	57M7052	1	Elec. Connector Terminal	(A) -1MM2/5MM
12	57M7114	1	TERMINAL	(A) -2,5MM2/10MM
13	57M7064	1	Elec. Connector Housing	-
14	57M7038	1	Elec. Connector Terminal	(A) -1,5MM2/8MM PACKG 25
15	L36667	1	CONNECTOR BODY,(PIN&SOCKET)	-
16	L36668	1	Electrical Conductor	(A) -2,5MM2/2,1MM PACKG 25
17	L36682	1	PIN CONTACT	(A) -2,5MM2/2,1MM PACKG 25
18	57M7033	1	Elec. Connector Accessory	(A) -/6,3MM
18	57M7072	1	INSULATING SLEEVE	(A) -/9,5MM
19	57M7044	1	Elec. Connector Terminal	(A) -1,0MM2/6,3MM PACKG 5
19	57M7045	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG 25
19	57M7080	1	Elec. Connector Terminal	(A) -6,0MM2/6,3MM PACKG 50

CABLE CLIPS CONNECTORS AND PLUGS [01H01]
