Mower Deck 38", Draft Arms, Gage Wheels and Chute Guard

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M112899	1	Pin Fastener	GROOVED, USED WITH RETAINER, (ALSO ORDER M84309) (SUB FOR M83409 OR M76937)
3	03M7183	2	Bolt	M8 X 16
4	M63200	1	Rivet	-
7	M84309	1	Nut	USE WITH M118888
7	24H1289	1	Washer	21/64" X 5/8" X 0.049", USE WITH M118602
8	11H206	1	Cotter Pin	3/32" X 3/4"
9	14M7166	2	Lock Nut	M8
10	AM104783	1	Mower Deck	(INCLUDES CHUTE, HINGE, HARDWARE AND DECALS) (SUB FOR AM103524)
11	19M7183	2	Cap Screw	M10 X 40
12	M72876	2	Angle	NLA; Lift Stop
13	M85516	3	Lock Nut	(SUB FOR M82222 THIS APPLICATION)
14	M91338	3	Strap	(SUB FOR AM106878)
15	J16931	3	Pin	-
16	M71667	3	Clip	-
17	M95455	3	Pin	-
18	-	3	Part 22	(SUB AM116299) (SUB FOR M84690)
19	24M7239	3	Washer	10.700 X 21 X 2.500 mm, (SUB FOR M72490)
20	M90937	3	Screw	-
21	19M7897	2	Screw	M8 X 35
22	24H1294	2	Washer	11/32" X 1-1/8" X 1/16"
23	M84232	2	Arm	FRONT DRAFT
24	M90534	2	Adjuster	-
25	14M7396	5	Lock Nut	M8
26	14M7400	2	Lock Nut	M10
27	24H1308	2	Washer	13/32" X 1" X 0.134", USE WITH M40463
29	M71713	1	Arm	REAR DRAFT (RH)
30	M82422	1	Strap	REAR DRAFT (LH)
31	M71715	1	Strap	LIFT RH
32	14H846	2	NUT	3/8"
33	M75586	1	Rod	-
34	J16931	5	Pin	-
35	AM105403	1	Strap	LIFT LH
36	03H2272	2	Bolt	5/16" X 1/2"
37	14H819	2	Wing Nut	5/16"
38	M150883	1	Plate	MULCHING (OPTIONAL) (ALSO ORDER (2) 03H2272 AND 14H819) (SUB FOR AM103841 OR M72487)
39	AM103852	1	Package Of Sections	NLA; REAR LIP SECTION
40	AM103851	1	Package Of Sections	(SIDE LIP SECTION)
41	M153360	1	Section	FRONT LIP SECTION (STANDARD) (ALSO ORDER 03M7184 AND 14M7166) (SUB FOR AM103506 OR M142577)
42	M82438	1	Pin Fastener	-
43	M40461	2	Pin	-
44	14M7396	1	Lock Nut	M8
45	12H335	2	Lock Washer	3/8"
46	24H1139	2	Washer	11/16" X 1-1/4" X 0.105"
47	-	1	Part 52	(ORDER 19M7867, 24H1243 AND 14M7166) (REFER TO SIB 93-11-45-1)
48	M115326	1	Pin Fastener	JACKSHEAVE POST (REFER TO SIB 91-11-45-6)
49	03M7184	4	Bolt	M8 X 20
50	14M7166	4	Lock Nut	M8
51	M89504	1	Label	Danger, Thrown Object
..	AM133602	1	Wheel Kit	GAGE WHEEL, (SUB FOR AM116299)
..	AM103854	1	Mower Blade Kit	RETRO FIT (INCLUDES M71650 BRAKE ROD)
..	AM118555	1	Mower Deck	(ALSO ORDER AM103854)
..	AM105404	1	Mower Deck	(FOR 185 SN -440000) (ALSO ORDER AM103854) (SUB AM118555)
2A	AM105423	1	Chute	USE WITH M118602
2B	AM117246	1	Chute	USE WITH M118888; SUB FOR AM105422
5A	M83410	1	Torsion Spring	USE WITH M118602
5B	M73536	1	Torsion Spring	USE WITH M118888
6A	M118602	1	Hinge	USE WITH AM105423; SUB FOR M83411
6B	M118888	1	Hinge	USE WITH AM117246; SUB FOR M73535
28A	M40463	2	Washer	USE WITH 24H1308
28B	M93897	2	Bushing	-

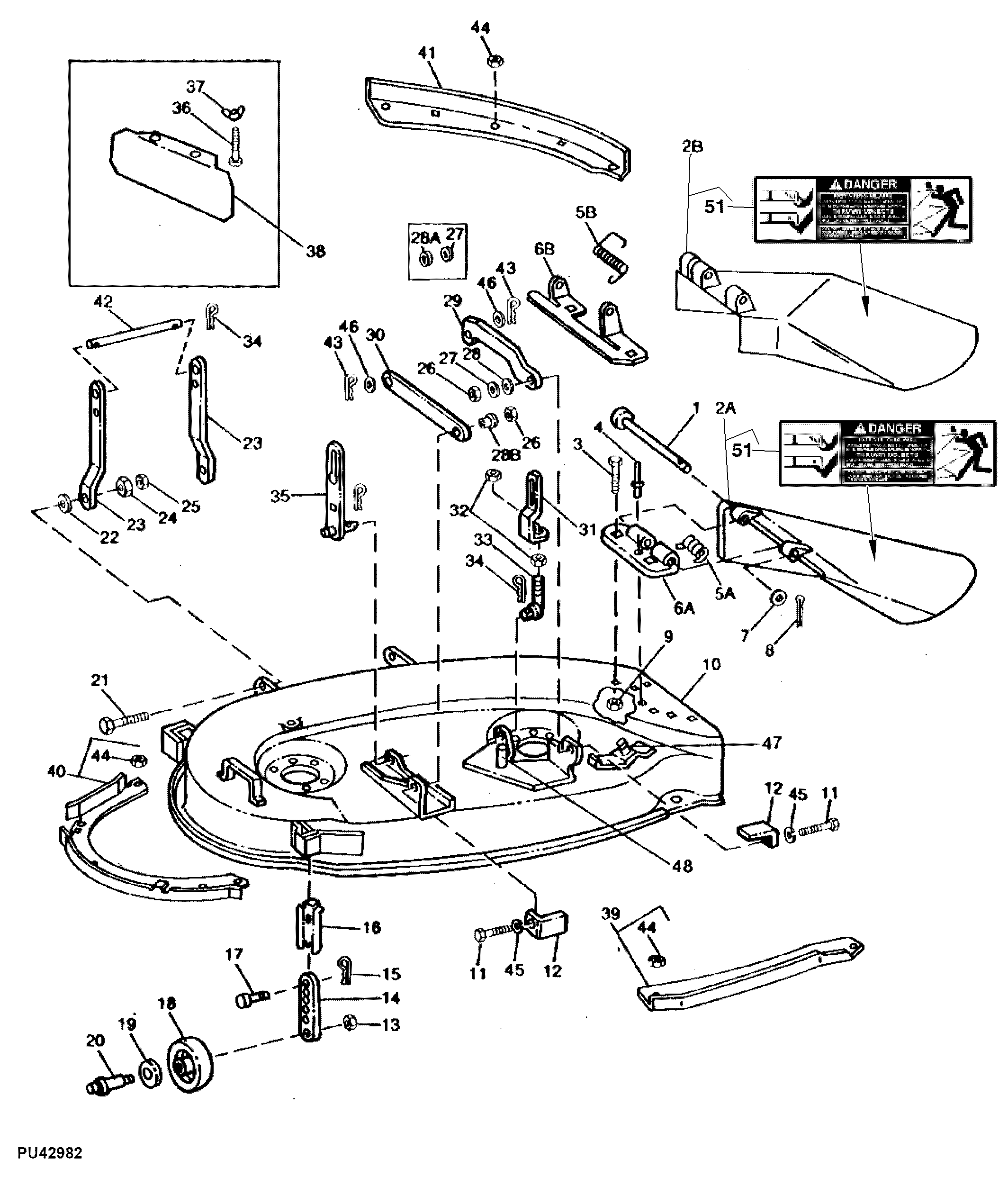

Mower Deck 38", Draft Arms, Gage Wheels and Chute Guard
