Открытый узел

Blades, Idlers, Jacksheave and Spindle, 38 inch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7663	1	Cap Screw	M8 X 70
2	24H1294	2	Washer	11/32" X 1-1/8" X 1/16"
3	M73119	1	Arm	-
4	M93902	1	Bushing	(SUB FOR M91287)
5	24H1296	1	Washer	11/32" X 1-3/8" X 0.134"
6	14M7400	1	Lock Nut	M10
7	M71682	1	Bushing	IDLER SHEAVE
8	19M7163	9	Cap Screw	M8 X 25, (USE W/O SHEAVE FAN)
8	19M7288	8	Cap Screw	M8 X 30, (USE WITH SHEAVE FAN) (INC WITH AM108925)
9	AM37249	1	Idler	FLAT (SUB FOR AM107468)
10	24H1308	1	Washer	13/32" X 1" X 0.134", (NO LONGER REQUIRED WHEN USED WITH 19M7804)
11	19M7804	1	Screw	M10 X 40
12	14M7396	2	Lock Nut	M8
13	M89819	1	Washer	-
14	M71492	1	Strap	USE WITH S169M; FLAT STRAP
14	M73117	1	Bracket	USE WITH M73114; BENT BRACKET
15	S169M	1	Extension Spring	USE WITH FLAT STRAP M71492
15	M73114	1	Extension Spring	USE WITH BENT BRACKET M73117
16	M136393	1	Shield	(SUB FOR M73173)
17	37M7089	3	Screw	M6 X 12
18	26H14	2	SHAFT KEY	3/16" X 3/4", WOODRUFF
19	P48362	1	Lock Nut	-
20	AM104780	1	Pulley	ASSEMBLY (SUB FOR AM37582) (USE W/O SHEAVE FAN)
20	AM107589	1	Pulley	ASSEMBLY (USE WITH SHEAVE FAN)
21	JD9296	4	Ball Bearing	-
22	M91291	1	Spacer	-
23	AM103544	2	Knife	Spindle Welded (Kit) (Optional)
24	AM103522	1	Hub	HOUSING (INCLUDES JD7826 GREASE FITTING)
25	AM108925	2	Spindle	ASSEMBLY (WITH SHEAVE FAN) (SUB FOR AM103502 W/O SHEAVE FAN OR AM107590 W/SHEAVE FAN) (INCLUDES JD7826 GREASE FITTING) (ALSO INCLUDES HUB AM103504)
26	19H1740	2	Cap Screw	7/16" X 1-3/4"
27	24H1224	2	Washer	11/32" X 1" X 1/16", (1) WASHER PER SPINDLE HOUSING TO SHIM
27	24H1887	8	Washer	11/32" X 1" X 0.134"
28	14M7298	8	Flange Nut	M8
29	19M7784	1	Screw	M10 X 20
30	24H1730	1	Washer	13/32" X 1-1/2" X 0.120"
31	19M7163	1	Cap Screw	M8 X 25
32	M71680	1	Spacer	-
33	M92002	2	Thrust Washer	-
34	AM103469	1	Pulley	OD1 = 128.1 mm, OD2 = 101.6 mm, ORDER AM103501
35	AM103501	1	Pulley	Jacksheave Assembly W/Bearings
36	AM102210	1	Arm	(SUB FOR AM107502 OR AM107503)
37	M131119	1	Cap	(SUB FOR M111714), YELLOW, (SUB FOR M72886)
38	T40189	1	Snap Ring	-
39	24H1184	1	Washer	25/32" X 1-1/4" X 0.105"
40	M111358	2	Bushing	(SUB FOR M45262)
41	M85516	1	Lock Nut	-
42	M114771	1	Lever	(SUB FOR M85041)
43	AM103504	1	Spindle	HUB ASSEMBLY
44	M82408	2	Mower Blade	LOW LIFT (SUB FOR AM100946)
44	AM141039	1	Mower Blade Kit	(SUB FOR M84472 OR (2) M153118 OR AM137324) (INCLUDES (2) M156416, DY10802 AND (2) M159140) (USE WITH 2 BAG BAGGER)
44	AM141041	1	Mower Blade Kit	HIGH LIFT (BAGGING) (SUB FOR (2) M154159 OR AM137326) (INCLUDES (2) M156416 AND DY10802 AND (2) M159140)
45	M72853	1	Label	(NLA)
46	M71684	1	Extension Spring	JACKSHEAVE
47	M77988	1	V-Belt	PRIMARY (SUB FOR M82734)
48	M82462	1	V-Belt	SECONDARY
49	F2948R	1	Grip	-
50	M93912	1	Fan	SHEAVE (USED IN AM107590 AND AM108925)
51	24H1391	1	Washer	25/32" X 1-5/16" X 0.060", (USE WITH SHEAVE FAN)

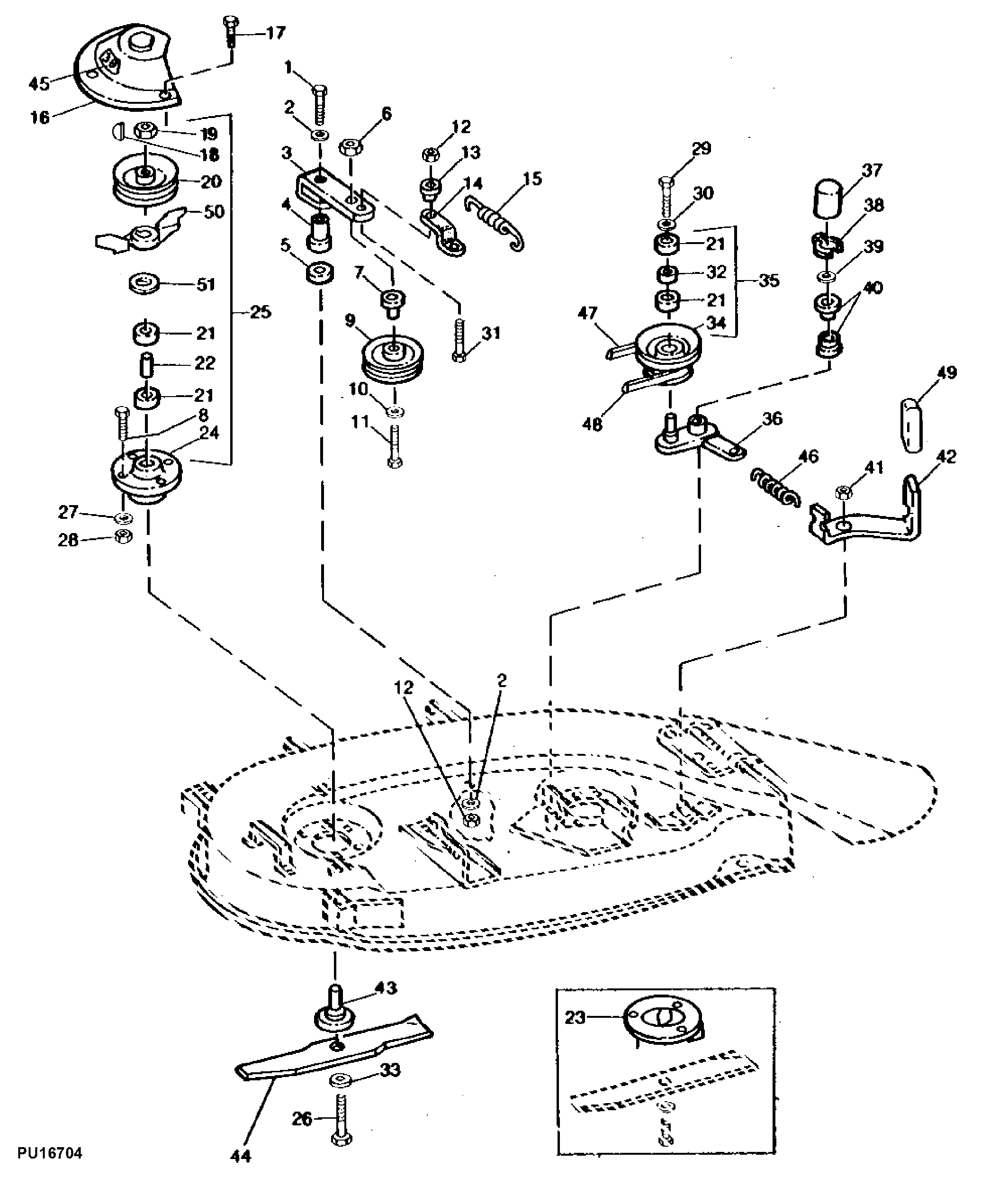

Blades, Idlers, Jacksheave and Spindle, 38 inch
