Wheel End, 8 Wheel Front / Rear, LOK 145 (001028 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F073631	4	Planetary Assembly	INCLUDES (4) F009375, (4) F035809, (4) F051524, (4) F052965, (4) F064239, F070797, (4) F070798, (8) F073593 AND (4) F075402
0	F070853	4	Gear Case	-
1	F011087	4	Gear	Z = 66
2	F052965	4	Self-Locking Screw	-
3	F009375	4	Washer	-
4	F070797	1	Planet Pinion Carrier	-
5	F051524	4	Sleeve	-
6	F073593	8	Washer	-
7	F035809	4	Shaft	-
8	F075402	4	Bearing	SUB FOR F054702
9	F064239	4	Gear	Z = 23
11	F070798	4	Housing	-
12	19M3205	16	Cap Screw	M12 X 30
13	F009360	48	Wheel Bolt	-
14	F065888	4	Housing	-
15	F011082	4	O-Ring	-
16	F055306	4	Tapered Roller Bearing	-
17	F011086	4	Snap Ring	-
18	F047377	4	Gear	Z = 66
19	F047375	1	Shim	TK = 2.5 mm
19	F047414	1	Shim	TK = 2.375 mm
19	F047413	1	Shim	TK = 2.25 mm
19	F047412	1	Shim	TK = 2.125 mm
19	F047411	1	Shim	TK = 2.0 mm
19	F047410	1	Shim	TK = 1.875 mm
19	F047408	1	Shim	TK = 1.625 mm
19	F047407	1	Shim	TK = 1.5 mm
19	F054187	1	Shim	TK = 1.375 mm
19	F056212	1	Shim Kit	-
19	F047409	1	Shim	TK = 1.75 mm
20	F047376	4	Nut	-
21	F009387	4	Plug	-
22	F045263	1	Shim Kit	-
22	F056927	1	Shim	TK = 0.5 mm
22	F009480	1	Shim	TK = 1.0 mm
22	F009474	1	Shim	TK = 2.5 mm
23	F009463	8	Seal	-
24	F009498	8	Plug	-
25	F070799	4	Shaft	Z = 18
26	F004716	4	O-Ring	-
27	F049368	64	Self-Locking Screw	-
28	F070800	4	Spindle	-
28	F009473	8	Cotter Pin	-
29	F047374	4	Ring	-
30	F047372	4	O-Ring	-
31	F047290	4	Seal	-
32	F070836	4	Bearing	-
33	AT260850	48	Spring Washer	-
34	14M7490	48	Flange Nut	M22

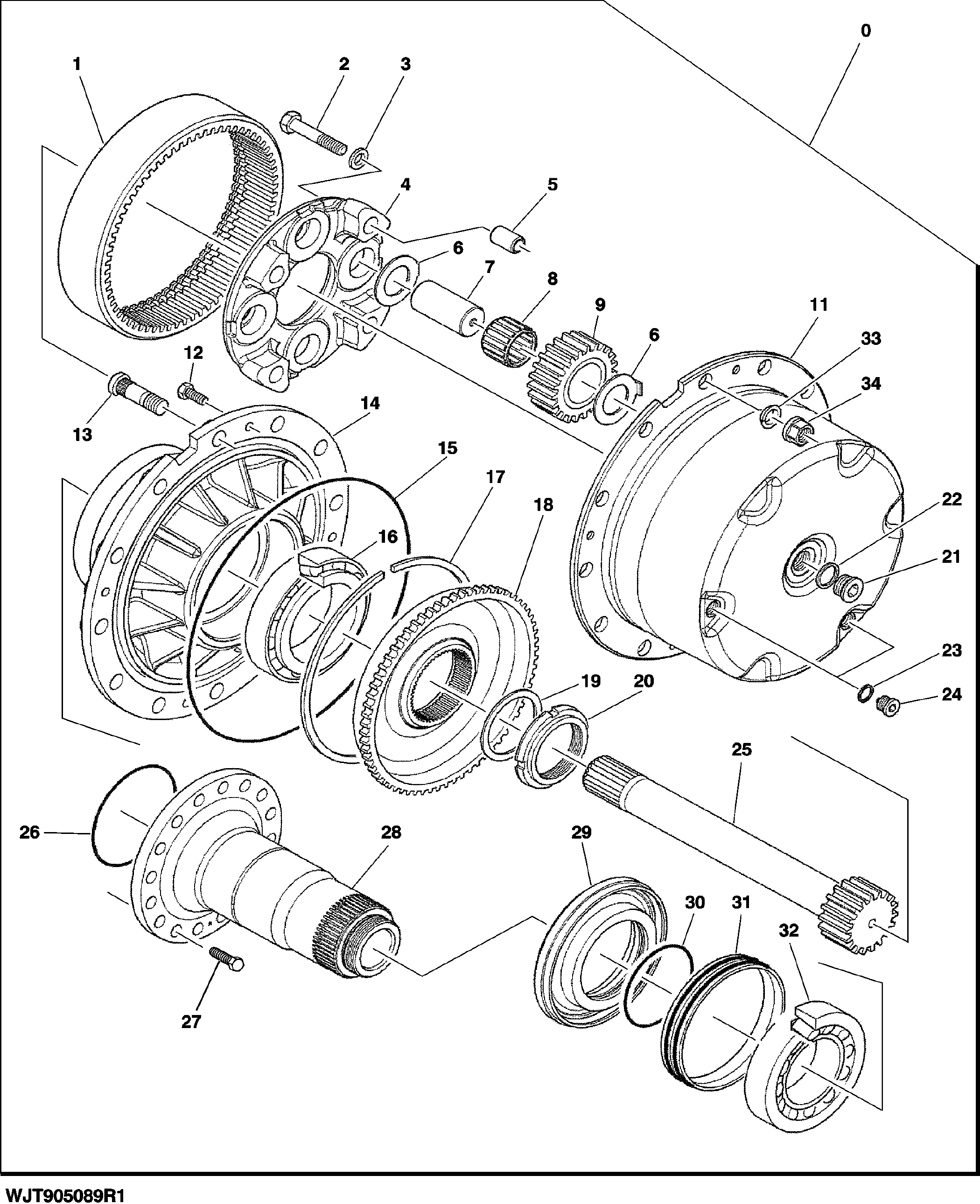

Wheel End, 8 Wheel Front / Rear, LOK 145 (001028 - )

Нет текстового описания
