Proportional Dozer Blade Hydraulics (001108 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Components on Separate Pages
2	-	1	Part 2	Components on Separate Pages
3	-	1	Part 3	Components on Separate Pages
4	-	1	Part 4	Components on Separate Pages
5	-	1	Part 5	Components on Separate Pages
6	-	2	Part 6	Components on Separate Pages
7	-	1	Part 7	Components on Separate Pages
8	-	1	Part 8	Components on Separate Pages
9	F026605	1	Tee Fitting	-
10	F005092	1	Sleeve Fitting	-
11	F005078	1	Reducer	-
12	F005063	1	NIPPLE	-
13	F054374	1	HOSE-ASSY	L= 430 mm
14	F617321	1	CABLE	-
15	F005059	2	Fitting	-
16	F045434	2	Hydraulic Hose	L= 750 mm
17	F005102	1	T-CONNECTION	-
18	F010099	1	Nut	-
19	F024605	1	Fitting	-
20	F012507	1	Fitting	-
21	F055060	1	Hydraulic Hose	L= 350 mm
22	F005057	6	Fitting	-
23	F003589	2	LOCK NUT	-
24	F003354	2	WASHER	-
25	24M7509	3	Washer	8.400 X 16 X 1.600 mm
26	19M9682	3	Cap Screw	M8 X 20
27	F645513	1	Wiring Harness	-
28	F005368	1	SWITCH, WASHER	-
29	F021503	1	Medallion	-
30	F024599	1	Elbow Fitting	-
31	F062778	1	Hydraulic Restrictor	-
32	F062777	1	Mounting Parts	-
33	F012592	6	Elbow Fitting	-
34	F066446	4	Hydraulic Hose	L= 1000 mm
35	F026843	2	Fitting	-
36	F633228	1	Pipe	-
37	F007730	4	Hose Support	-
38	F052869	4	Hose Clamp	-
39	F005335	4	Tie Band	-
40	F051025	2	Hose Guard	-
41	F005060	4	Fitting	-
42	F070226	1	Valve Stack	Components on Separate Page
43	F043530	2	Hydraulic Hose	L= 500 mm
44	F008262	2	Lock Washer	-
45	19M9683	2	Cap Screw	M8 X 25
46	F630170	1	Plate	-
47	F633229	1	Pipe	-
48	F045804	1	Plug	-
49	F005055	1	NIPPLE	-
50	F013533	1	Hydraulic Hose	L= 1400 mm
51	F024344	1	Hydraulic Hose	L= 650 mm, Fabricate
52	F012534	1	Fitting	-
53	F005074	1	Tee Fitting	-
54	F005077	1	Fitting	-
55	F001195	1	Hydraulic Hose	L= 2000 mm
56	F027851	1	ELBOW FITTING	-
57	F630168	1	Bracket	-
58	19M9641	2	Cap Screw	M10 X 35
59	F013725	2	Elbow Fitting	-

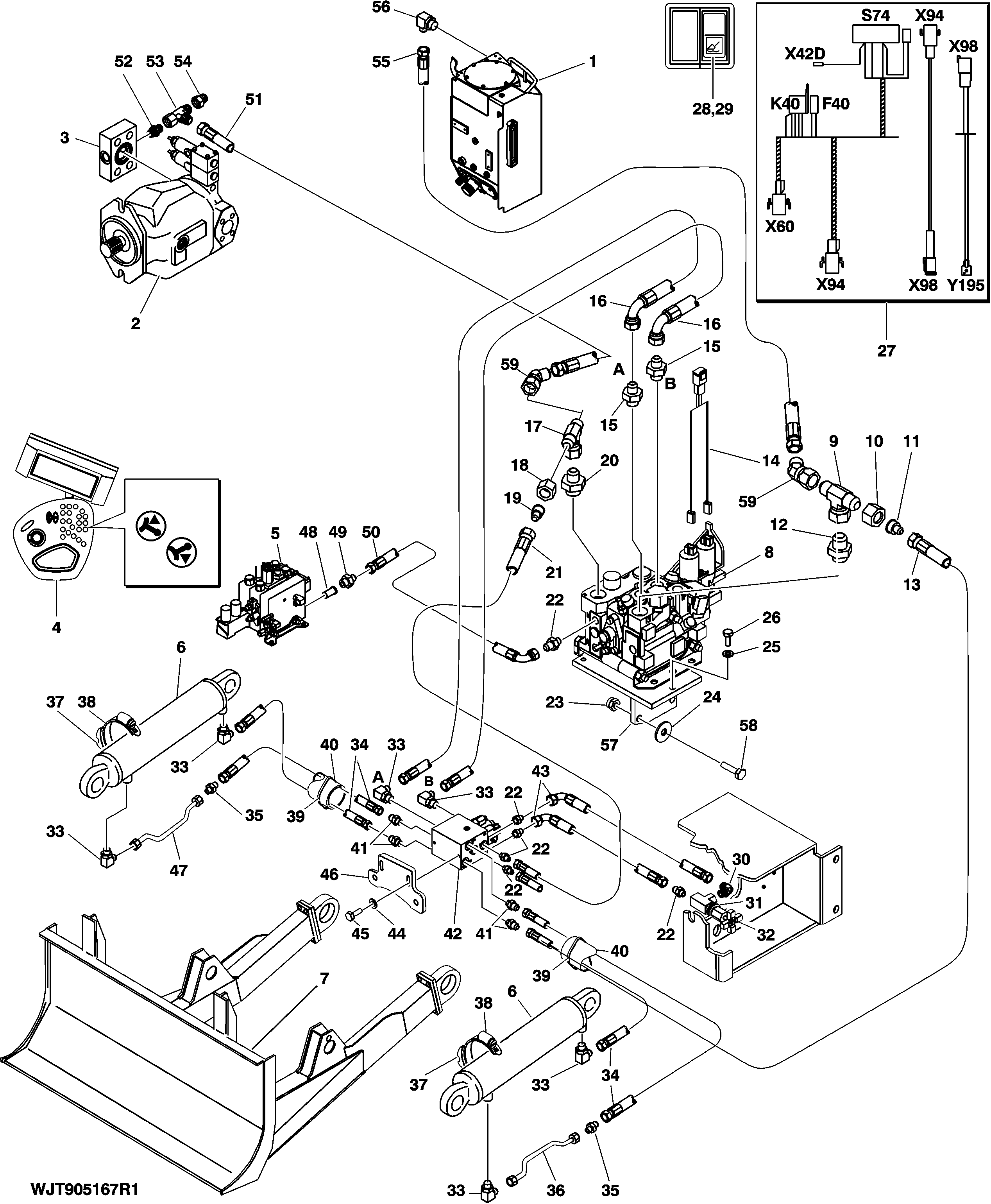

Proportional Dozer Blade Hydraulics (001108 - )
