Открытый узел

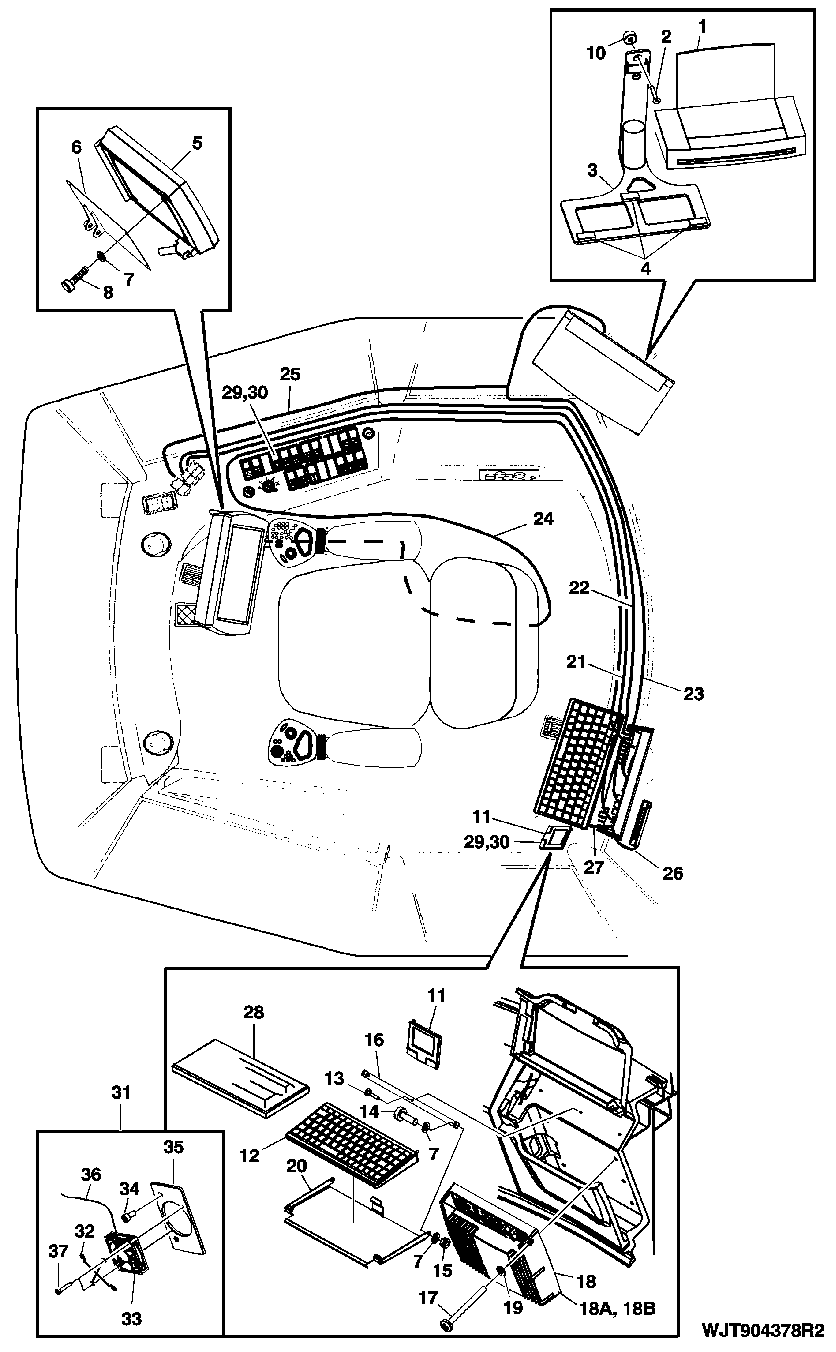

Console and Display Assembly ( - 001027)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F073088	1	Computer Hardware Item	PRINTER, CANON PIXMA IP100; SUB FOR F070434
2	19M9563	2	Screw	M8 X 50
3	F630821	1	BRACKET	-
4	-	5	Part 4	CTL 40 mm, MF F061192
5	F626767	1	DISPLAY MODULE	-
5	F064489	1	Circuit Board	-
6	-	1	Part 7	COMPONENTS ON SEPARATE PAGE
7	F015008	8	WASHER	-
8	19M9471	4	Screw	M4 X 10
10	F630861	2	Bushing	-
11	F628502	1	Computer Hardware Item	-
12	F065290	1	Computer Hardware Item	Keyboard, Russian
12	F065298	1	Computer Hardware Item	See Solution 118398 Keyboard, Danish, NLA
12	F065297	1	Computer Hardware Item	Keyboard, Spanish
12	F065296	1	Computer Hardware Item	Keyboard, Portugese
12	F065295	1	Computer Accessory	See Solution 118398 Keyboard, English, U.S.A, NLA
12	F065294	1	Computer Hardware Item	Keyboard, Norwegian
12	F065293	1	COMPUTER HARDWARE ITEM	Keyboard, Italy
12	F065292	1	Computer Accessory	Keyboard, French
12	F065291	1	Computer Hardware Item	Keyboard, German
12	F064443	1	Computer Accessory	Keyboard, English, Poland
12	F064442	1	Computer Hardware Item	See Solution 118398 Keyboard, Finnish/Swedish, NLA
13	37M7415	3	Screw	-
14	F003318	2	SCREW	-
15	F003584	2	LOCK NUT	-
16	F628243	1	PLATE	-
17	F042896	6	SCREW	-
18	F639658	1	COMPUTER ACCESSORY	FPC07 REPLACEMENT KIT, WITH WINDOWS XP; SUB FOR F627578
19	F026365	6	Lock Washer	-
20	F628242	1	HOLDING UNIT	-
21	F626908	1	WIRING HARNESS	-
22	F626907	1	WIRING HARNESS	-
23	F065439	1	WIRING HARNESS	-
24	F064414	1	WIRING HARNESS	-
25	F640177	1	Wiring Harness	POWER CABLE FOR CANON PRINTER
26	-	1	Part 38	USE WITH F628502
27	-	1	Part 39	USE WITH KEY 12
28	F064685	1	Cover	-
29	F062501	1	SWITCH	-
30	F062500	1	SIGN	-
31	F643817	1	FAN KIT	-
32	F070832	1	Electronic Component	Finger Guard
33	F070831	1	Computer Hardware Item	Axial Fan
34	19M9723	2	Screw	M6 X 12
35	F642633	1	BRACKET	-
36	F641717	1	WIRING HARNESS	-
37	19M9473	2	Screw	M4 X 20
18A	-	1	Part 29	-
18B	-	1	Part 30	-

Console and Display Assembly ( - 001027)

Нет текстового описания
