Открытый узел

Bogie Assembly, LOK 133

Bogie Assembly, LOK 133

Bogie Assembly, LOK 133

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

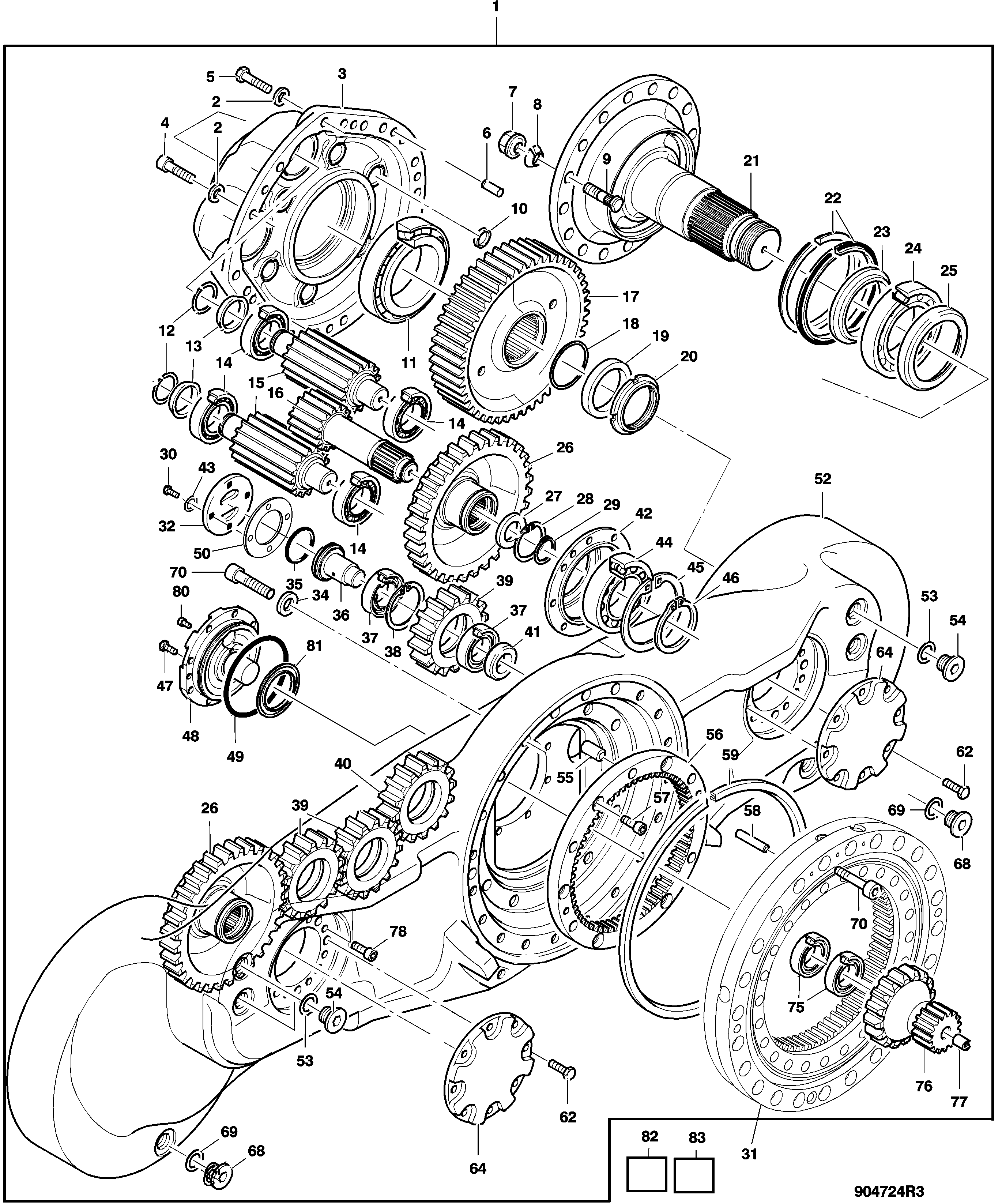

Bogie Assembly, LOK 133

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M4247	4	Sealing Ring	-
1	F069004	2	Housing	LF, INCLUDES (4) 51M4247
2	F009375	38	Washer	-
3	F053035	2	HOUSING	-
4	F004661	8	SCREW	-
5	F047282	30	Screw	-
6	F025340	18	Pin	-
7	F004678	32	WHEEL NUT	USE WITH F004736
8	F004736	32	Lock Washer	USE WITH F004678
9	F025179	32	Wheel Bolt	-
10	F004912	12	Cover	-
11	F003812	2	ROLLER BEARING	-
12	F047291	4	SNAP RING	-
13	F047299	4	RING	-
14	F047288	8	Cylindrical Roller Bearing	-
15	F047277	4	SHAFT	-
16	F058335	2	Pinion	-
17	F047276	2	GEAR	Z = 50
18	F035815	1	Shim	TK = 1.375 mm
18	F035814	1	Shim	TK = 1.5 mm
18	F035813	1	Shim	TK = 1.625 mm
18	F031547	1	Shim	TK = 2.25 mm
18	F035812	1	Shim	TK = 1.75 mm
18	F035811	1	Shim	TK = 1.875 mm
18	F031548	1	Shim	TK = 2.125 mm
18	F031546	1	Shim	TK = 2.375 mm
18	F031545	1	Shim	TK = 2.5 mm
18	F045264	4	Shim Kit	-
18	F031549	1	Shim	TK = 2 mm
19	F035862	2	Sleeve	-
20	F072089	2	Nut	SUB FOR F023092
21	F047293	2	HUB	-
22	F047290	2	Seal	-
23	F047298	2	SLEEVE	-
24	F047286	2	Tapered Roller Bearing	-
25	F047296	2	SLEEVE	-
26	F053039	2	GEAR	-
27	F047300	2	RING	-
28	F030089	2	CIRCLIP	-
29	40M7058	2	Snap Ring	-
30	19M8607	24	Cap Screw	M10 X 20
30	F064586	24	SCREW	-
31	-	1	Part 43	-
32	F025364	6	CAP	-
34	F025168	4	Washer	-
35	-	1	Part 46	SILICONE FORCH K166
36	F066626	6	Shaft	-
37	F047287	12	Cylindrical Roller Bearing	-
38	F003377	6	CIRCLIP	-
39	F047274	4	GEAR	Z = 19
40	F047273	2	GEAR	Z = 21
41	F066879	6	Spacer	-
42	F053032	2	CAP	-
43	F025363	24	Washer	-
44	F047289	2	SPHERICAL ROLLER BEARING	-
45	F003379	2	CIRCLIP	-
46	40M7164	2	Snap Ring	-
47	F025159	8	Self-Locking Screw	-
48	F066877	1	Stud	-
49	-	1	Part 60	-
50	F070979	6	Gasket	-
52	F066878	1	Housing	LF
53	F009465	2	Sealing Ring	-
54	F009438	2	Plug	-
55	F004742	8	Pin	-
56	F719373	1	Ring Gear	Z = 66, SUB FOR F053036
57	F053043	6	Cap Screw	-
58	F035794	2	Dowel Pin	-
59	F047301	1	Seal	-
62	F025159	16	Self-Locking Screw	-
64	F053033	2	COVER	-
68	F010163	2	Plug	-
69	F009465	2	Sealing Ring	-
70	F434622	24	Screw	-
75	F054720	2	Bearing	-
76	F065835	1	GEAR	Z = 16 , SUB FOR F072726
77	F025324	1	Bolt	-
78	F053043	16	Cap Screw	-
80	F025191	2	Self-Locking Screw	-
81	F054718	1	Seal	-
82	F074954	1	Bearing Kit	INCLUDES (4) F047289, (4) F003379, (4) 40M7164, (4) F054720, (8) F070979, (8) F047291, (8) F047299, (8) F047288, (12) F066626, (12) F003377 AND (24) F047287
83	F074959	1	Bearing Kit	INCLUDES (4) F003812, (4) F045264, (4) F035862, (4) F023092, (4) F047290, (4) F047298, (4) F047286 AND (4) F047296
