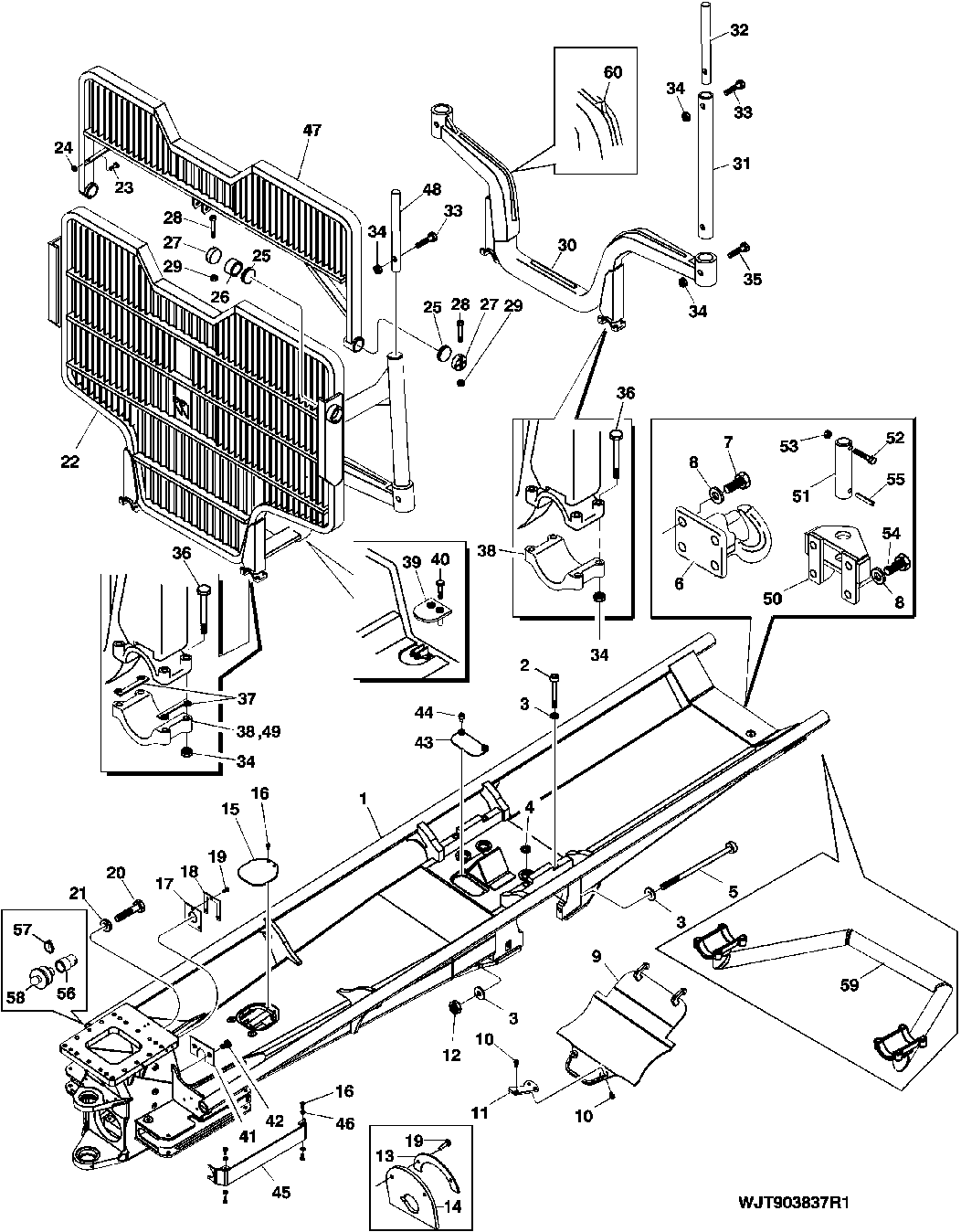

REAR FRAME FROM SERIAL NUMBER 0620- [02F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F621252	1	FRAME	L= 5670
1	F621266	1	FRAME	L= 6475
1	F633145	1	MAIN FRAME	L= 5670, ALS
2	F044900	4	Screw	-
3	F046573	8	Lock Washer	-
4	F058502	3	CAP	-
5	F055787	2	Screw	-
6	F015869	1	DRAW HOOK	-
7	19M9664	4	Cap Screw	-
8	24M7500	4	Washer	21 X 37 X 3 MM (0.827" X 1.457" X 0.118")
9	F610709	1	SHIELD	-
10	F021473	6	SCREW	-
11	F610693	2	PLATE	-
12	14M7607	2	Nut	M27
13	F603340	1	Plate	-
14	F603763	1	Guard	-
15	F042520	1	PLATE	-
16	19M9648	10	Cap Screw	M12 X 30
17	F051045	1	PLATE	-
18	F051044	1	GUARD	-
19	19M9683	5	Cap Screw	M8 X 25
20	19M9614	2	CAP SCREW	-
21	14M7619	2	NUT	M24
22	F600127	1	GATE	INCL ITEMS 23-29,47
22	F634851	1	GATE	MOVABLE GATE
23	19M8730	2	Screw	M16 X 80
24	F003591	2	LOCK NUT	-
25	F600218	4	Pin Fastener	-
26	F600217	2	Sleeve	-
27	F600216	4	Cover	-
28	19M9623	4	Cap Screw	M6 X 70
29	14M7528	4	Lock Nut	-
30	F633662	1	BUNK	-
31	F049913	1	STAKE	-
32	F047190	1	EXTENSION	-
33	19M9524	1	Screw	M16 X 120
34	F003592	1	Lock Nut	M16
35	19M9608	1	Cap Screw	M16 X 140
36	19M9522	1	Screw	M16 X 100
37	F032419	1	PLATE	WHEN MOVABLE GATE
38	F032205	1	HOLDER	-
39	F046177	1	COVER	-
40	19M9604	2	Cap Screw	M12 X 80
41	F046250	1	GUARD	WHEN MOVABLE GATE
41	F046251	1	PROTECTION	-
42	19M9682	2	Cap Screw	M8 X 20
43	F614282	1	PLATE	-
44	19M9500	2	Screw	M12 X 16
45	F600107	2	PROTECTION ASSY	-
46	F003170	8	WASHER	-
47	F600126	1	GATE	-
48	F047191	2	EXTENSION	-
49	F032207	4	HOLDER	WHEN MOVABLE GATE
50	F037868	1	Hook	-
51	F037724	1	Pin Fastener	-
52	19M9629	1	Cap Screw	M8 X 50
53	F003587	1	LOCK NUT	-
54	F008728	4	SCREW	-
55	34M3879	1	Spring Pin	8 X 60 MM
56	F043141	1	Hose Fitting	-
57	99M7144	1	Quick Lock Pin	-
58	F616315	1	PLUG	-
59	F629911	1	HOLDER	NO LONGER IN USE, SEE PAGE 1740-26 ITEM 16
60	F627686	1	HOLDER	-

REAR FRAME FROM SERIAL NUMBER 0620- [02F19]
