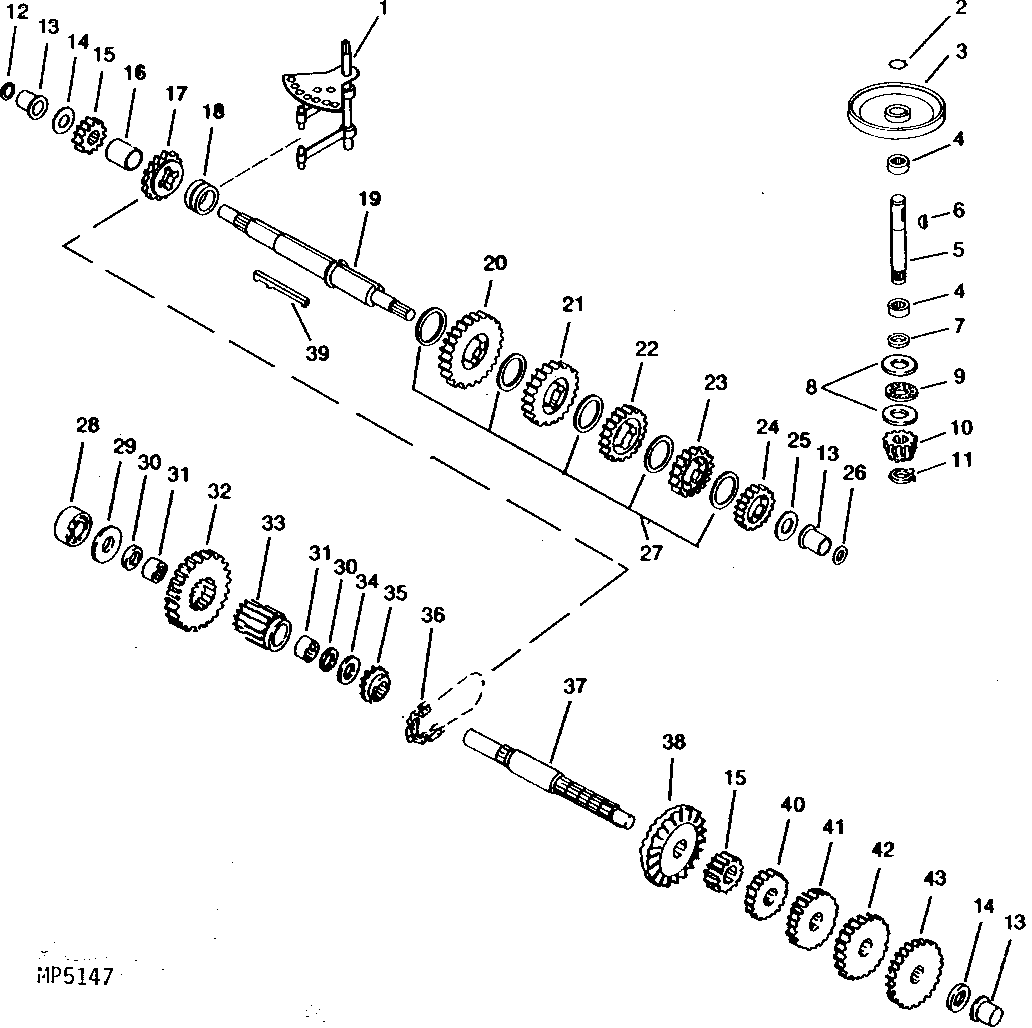

TRANSMISSION GEARS, COUNTERSHAFT AND SHIFTER ROD (USED ON ALL MODELS EXCEPT 801–039 TRANSAXLE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM37898	1	Rod	-
2	A11318	1	Snap Ring	-
3	AM105647	1	Pulley	(SUB FOR AM37668 OR AM103463)
4	M70508	2	Needle Bearing	(.870" OD)
5	M82843	1	Shaft	INPUT
6	26H77	1	Shaft Key	3/16" X 3/4"
7	M84726	1	Ring	-
8	M46676	2	Thrust Washer	-
9	JD9835	1	Thrust Bearing	-
10	M70521	1	Gear	INPUT BEVEL
11	B30491	1	Snap Ring	-
12	M70505	1	Disk	-
13	M85023	2	Bushing	-
14	M46676	1	Thrust Washer	-
15	M82806	1	Gear	Z=15
16	M82822	1	Spacer	NLA
17	PT11887	1	Chain Sprocket	Z=14
18	M82817	1	Shift Collar	NLA; ORDER MIA10320
18	MIA10320	1	Transmission	-
19	M70502	1	Shaft	NLA;Brake
20	M70519	1	Gear	Z=35
21	M70516	1	Gear	Z=30
22	M70515	1	Gear	Z=25
23	-	1	Part 24	Z=22, (ORDER AM116909), (SUB FOR M70517)
24	M70514	1	Gear	NLA; ORDER MIA10320; Z=20
24	MIA10320	1	Transmission	-
25	M82833	1	Thrust Washer	-
26	M133970	1	Ring	(SUB FOR M82838)
27	M82835	5	Thrust Washer	-
28	M70338	1	Ball Bearing	-
29	M82837	1	Washer	-
30	M82841	2	Ring	-
31	AM37897	2	Needle Bearing	-
32	M82824	1	Gear	NLA; Output
33	M82823	1	Pinion	-
34	M82839	1	Washer	-
35	PT11888	1	Chain Sprocket	Z=10, NLA; ORDER MIA10320
35	MIA10320	1	Transmission	-
36	-	1	Part 39	(CUT FROM (10) AP22458) NO. 41, 22 LINKS
37	M70520	1	Countershaft	-
38	M84724	1	Gear	Z=42
39	M82826	4	Key	(SET OF TWO)
40	M70511	1	Gear	Z=20
41	M70512	1	Gear	Z=25
42	-	1	Part 45	Z=28, (ORDER AM116909), (SUB FOR M70518)
43	M70513	1	Gear	NLA; ORDER MIA10320; Z=30
43	MIA10320	1	Transmission	-
..	AM116909	1	Gear Kit	SPUR GEAR

TRANSMISSION GEARS, COUNTERSHAFT AND SHIFTER ROD (USED ON ALL MODELS EXCEPT 801–039 TRANSAXLE)
