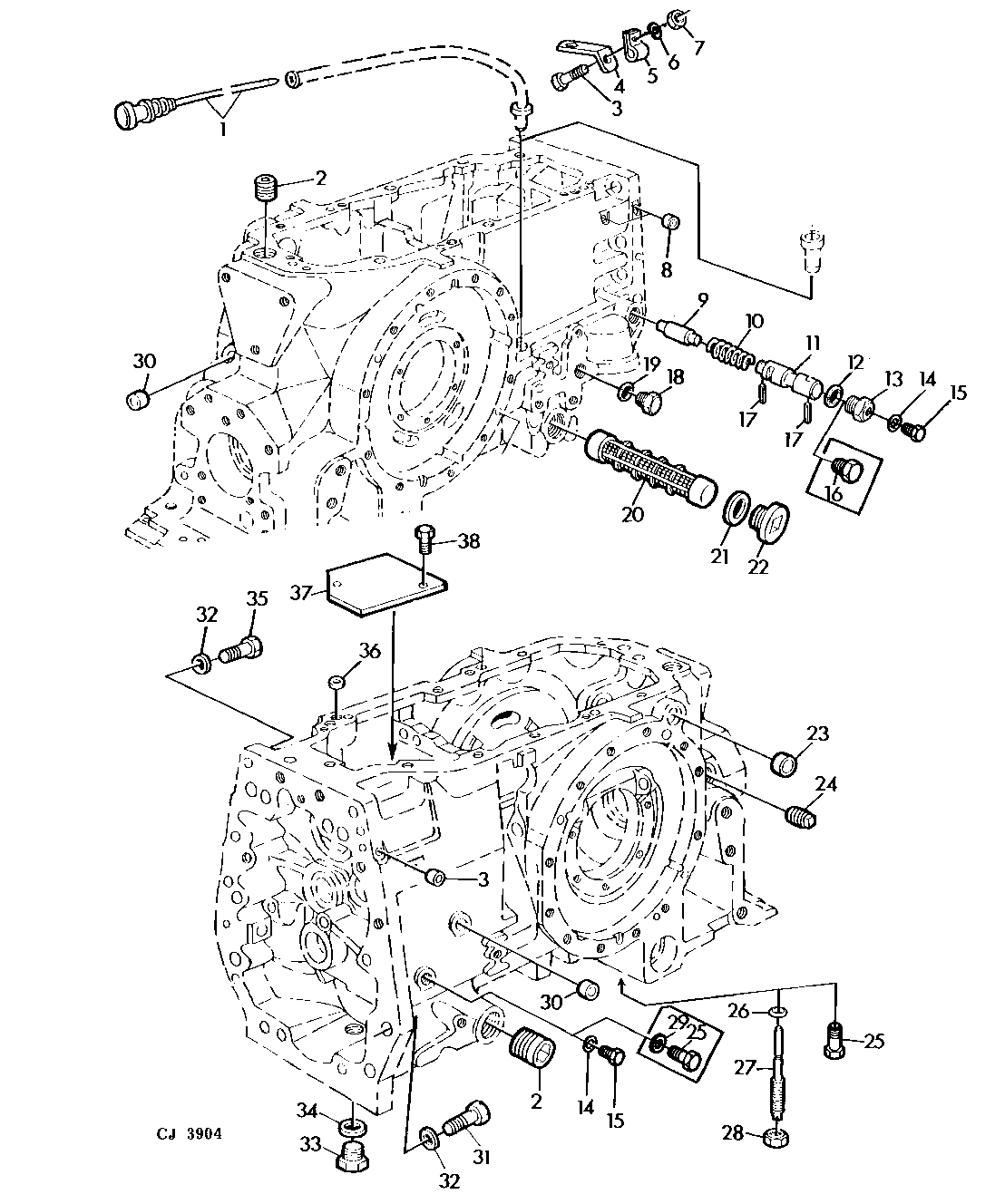

TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION) [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL38634	1	Dipstick	(SUB FOR AL27108)
2	15H562	2	Pipe Plug	1"
3	19H1813	1	CAP SCREW	5/16" X 5/8"
4	L31806	1	Strap	-
5	T21101	1	Clamp	-
6	12M7065	1	Lock Washer	-
7	14H785	1	Nut	5/16"
8	M1102T	2	PLUG	-
9	R39294	1	PIN	-
10	T24999	1	Spring	-
11	T22853	1	SLEEVE	-
12	U12547	1	O-Ring	(SUB FOR F3171R)
13	L32704	1	Threaded Nipple	1-1/16"
14	R26448	2	O-Ring	-
15	R27218	2	Fitting Plug	9/16"
16	R27175	1	Drain Plug	1-1/16"
17	34H247	2	Spring Pin	1/8"X3/4"
18	T22867	1	Drain Plug	3/4" (SUB FOR R39112)
19	R26375	1	O-Ring	-
20	AR26375	1	SCREEN	(SUB FOR R53169)
21	51M4249	1	Sealing Ring	38X44X2,5MM
22	R40147	1	FITTING	1-1/2"
23	T21937	1	Plug	-
24	15H584	1	Pipe Plug	1/2"
25	R53802	2	Cap Screw	1/2"X1/2"
26	R27490	1	O-Ring	-
27	T21776	1	SCREW	-
28	14H971	1	NUT	1/2"
29	R27003	1	Washer	-
30	T18891	1	Plug	-
31	19H2510	6	Cap Screw	1/2"X1-5/8"
32	T20168	8	Washer	-
33	R51895	2	Fitting	1"
34	A4827R	2	Washer	(SUB FOR 51M7019)
35	19H2735	2	Cap Screw	1/2"X2"
36	L57519	1	SEALING WASHER	(SUB FOR T17882)
37	T22854	1	COVER	-
38	19H2021	2	Cap Screw	3/8"X5/8"

TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION) [01G01]
