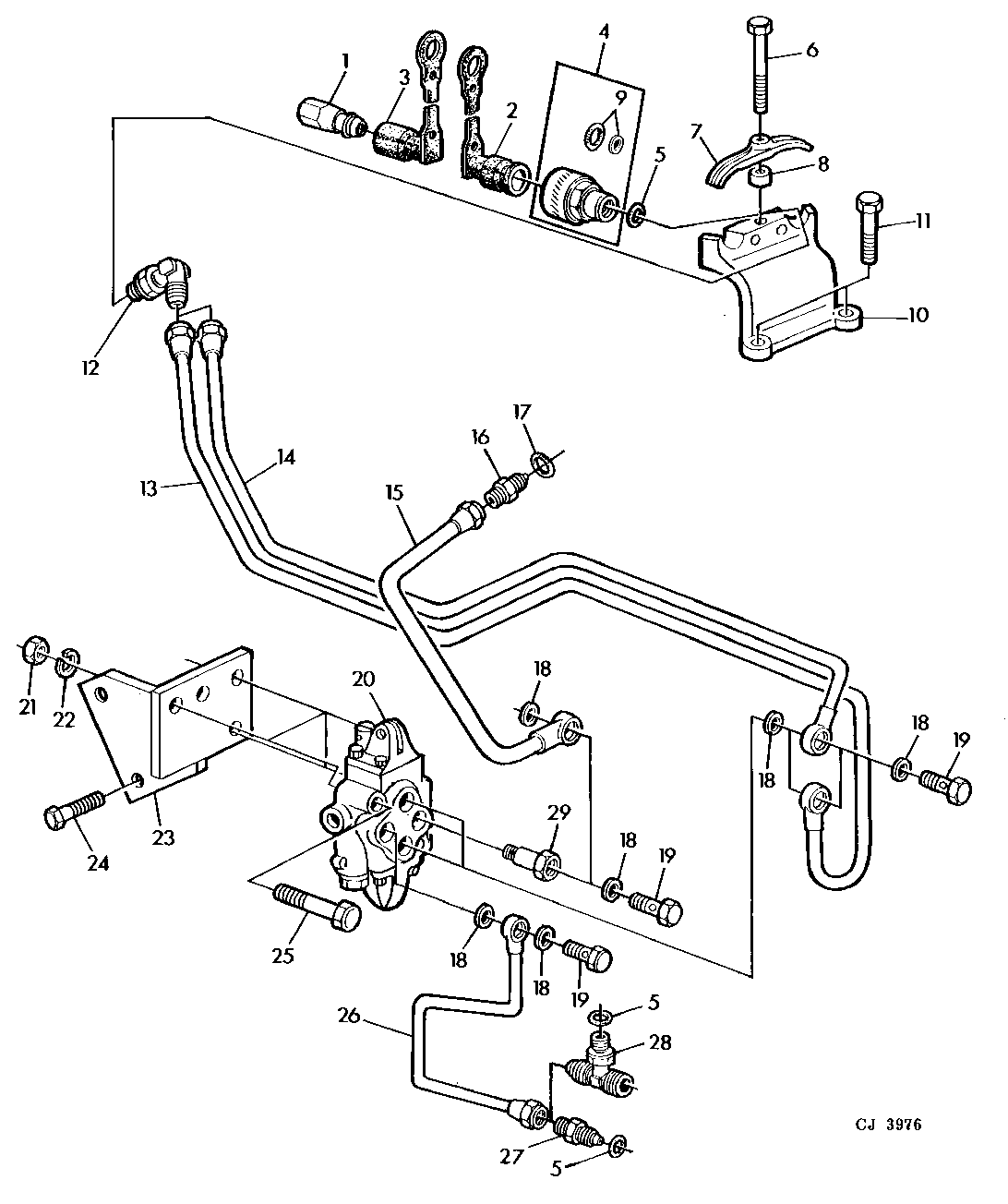

ELEMENTS FOR QUICK COUPLER,SELECTIVE CONTROL VALVE [02E13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DE12890	1	HYD. QUICK-CONNECT COUPLER	-
2	CE15958	1	PLUG	(SUB FOR CE13533)
3	L31745	1	Dust Shield	(SUB FOR CE13534)
4	AL26972	1	Hydr. Quick Coupler Socket	(SUB FOR DE12889)
5	R26375	1	O-Ring	-
6	19M2851	1	CAP SCREW	8X45MM
7	CE13876	1	FLANGE	-
8	R92351	1	Spacer	(SUB FOR R60745)
9	DE14298	1	KIT	-
10	CE13875	1	BRACKET	-
11	19H1990	2	Cap Screw	1/2"X2-1/4"
12	AR26763	1	ELBOW FITTING	-
13	DE14642	1	OIL LINE	-
13	DJ12872	1	OIL LINE	-
14	DE14644	1	OIL LINE	-
14	DJ12873	1	OIL LINE	-
15	DJ12874	1	OIL LINE	-
15	DE14641	1	OIL LINE	-
16	R31665	1	Fitting	(SUB FOR CE13136)
17	R26906	1	O-Ring	-
18	CE13532	1	GASKET	-
19	CE13531	1	ELBOW FITTING	-
20	DE17627	1	CONTROL VALVE	(SUB FOR DE14750)
21	14M3244	1	NUT	8MM
22	12M1625	1	LOCK WASHER	8MM
23	DJ12876	1	SUPPORT	-
23	DE14643	1	BRACKET	-
24	19H1974	2	Cap Screw	1/2"X2-3/4"
25	19M7270	1	Cap Screw	8X65MM
26	DJ12875	1	OIL LINE	(A)
26	DJ12975	1	OIL LINE	(B)
26	DJ13849	1	OIL LINE	(B)
27	R31665	1	Fitting	-
28	AL30020	1	TEE FITTING	(A)
29	CE13705	1	SHIM	-

ELEMENTS FOR QUICK COUPLER,SELECTIVE CONTROL VALVE [02E13]

Нет текстового описания
