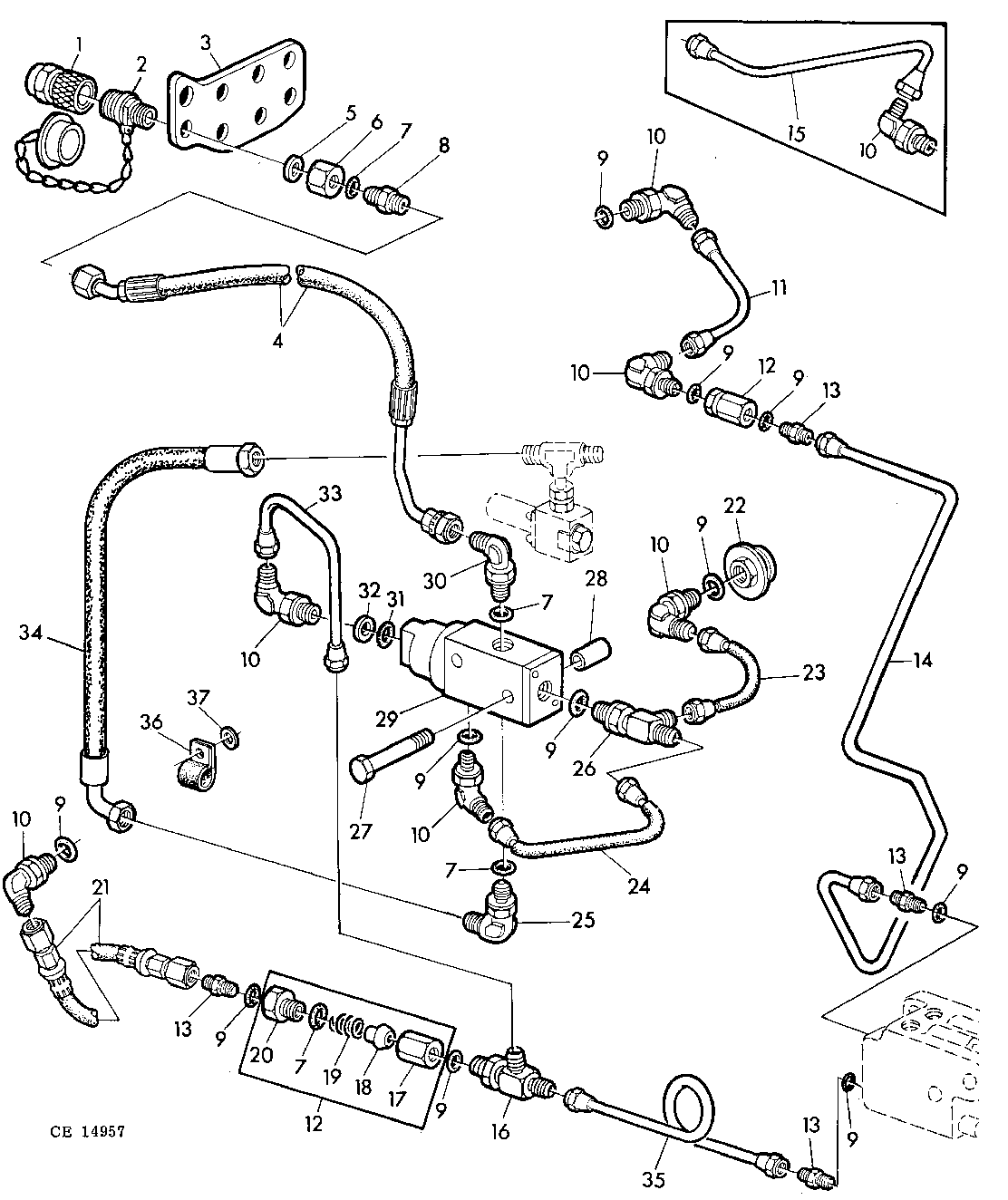

HYDRA.TRAILER BRAKE WITH HYDRO.STEERING [02C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
2	AR52372	1	PLUG	(SUB FOR AL31944)
3	L30207	1	PLATE	-
4	AL35090	1	Hose	(SUB FOR AL24715)
5	L37599	1	Sealing Ring	-
6	L30206	1	NUT	-
7	R26448	5	O-Ring	-
8	R27212	1	Fitting	-
9	R26287	11	O-Ring	-
10	AR26746	7	Elbow Fitting	-
11	DE15713	1	OIL LINE	LH
12	AL25103	2	Valve	-
13	R27139	3	FITTING	-
14	DE15707	1	OIL LINE	LH
15	AL25100	1	OIL LINE	RH
16	AR45251	1	Tee Fitting	-
17	L30719	2	Valve	-
18	L30722	2	Poppet	-
19	L30720	2	Compression Spring	-
20	L30721	2	Valve Cover	-
21	AL36198	1	Hydraulic Hose	RH (SUB FOR AL25102)
22	L28639	1	Pipe Plug	-
23	AL36122	1	Hose	(SUB FOR AL23076)
24	AL36123	1	Hydraulic Hose	(SUB FOR AL25104)
25	AT35120	1	Elbow Fitting	(SUB FOR AR37017)
26	AL25099	1	TEE FITTING	1,2MM
26	AL25791	1	TEE FITTING	1,4MM
27	19H2054	1	CAP SCREW	3/8"X4-3/4"
28	28H1521	1	Spacer	3/8"X.562"
29	AL26994	1	VALVE	ASSY
30	AR26725	1	ELBOW FITTING	-
31	L53811	1	O-Ring	-
32	51M4234	1	Sealing Ring	12X16MM
33	AL25098	1	OIL LINE	-
33	AL36187	1	Oil Line	-
34	AL35837	1	Hose	(SUB FOR AL34243, AL34910)
35	AL36186	1	OIL LINE	-
36	L37536	1	Clamp	-
37	24M7028	1	Washer	-

HYDRA.TRAILER BRAKE WITH HYDRO.STEERING [02C07]
