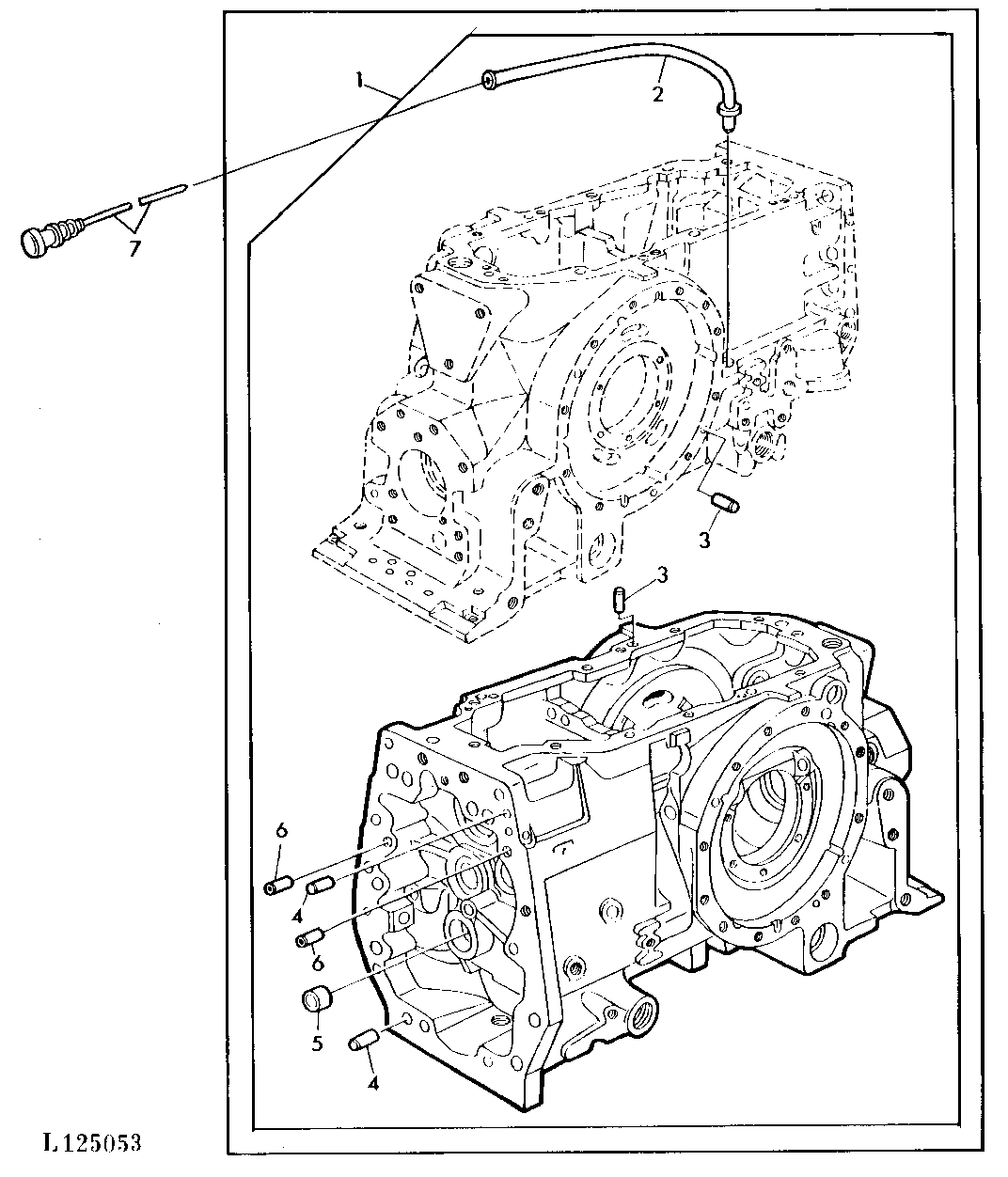

TRANSMISSION CASE (COLLAR SHIFT TRANSM.WITH HIGH FOOTRESTS AND CONTINUOUS RUNNING PTO)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL32849	1	Transmission Case	(WITH DIFFERENTIAL AL35740 ALSO ORDER L62449) (MARKED L35550) (ORDER AL68508, (2) AL65872,(2) L63944, L38231, L38134, R59468, R26448, R27218, L62815, L40425)
1	AL32849	1	Transmission Case	(WITH DIFFERENTIAL AL35740 ALSO ORDER L62449) (ORDER AL68508, (2) AL65872, (2) L63944, L62815, L40425)
1	AL32849	1	Transmission Case	(WITH DIFFERENTIAL AL35740 ALSO ORDER L62449) (ORDER AL68508, (2) AL65872, (2) L63944)
1	AL32849	1	Transmission Case	(WITH HEAVY-DUTY FINAL DRIVE) (ORDER AL68508, (2) L62830, L38231, L38134, R59468, R26448, R27218, L62815, L40425)
1	AL32849	1	Transmission Case	(WITH HEAVY-DUTY FINAL DRIVE) (ORDER AL68508, (2) L62830, L62815, L40425)
1	AL32849	1	Transmission Case	(WITH HEAVY-DUTY FINAL DRIVE) (ORDER AL68508, (2) L62830)
2	AL24999	1	Extension	-
3	R48685	6	Dowel Pin	-
4	T26565	2	Dowel Pin	-
5	T22128	1	BUSHING	-
6	T24729	2	Bushing	-
7	AL38634	1	Dipstick	(SUB FOR AL27108)

TRANSMISSION CASE (COLLAR SHIFT TRANSM.WITH HIGH FOOTRESTS AND CONTINUOUS RUNNING PTO)

Нет текстового описания
