SINGLE-ACTING SELECTIVE CONTROL VALVE (SPOOL TYPE) MC1 CAB

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1904	2	Cap Screw	(WITH ONE SELECTIVE CONTROL VALVE) 5/16" X 3", 5/16"X3"
1	19H2343	2	Cap Screw	(WITH 2 SELECT.CONTROL VALVES) 5/16" X 5-1/2", 5/16"X5-1/2"
1	08H4397	2	Cap Screw	5/16" X 8", 5/16"X8"
2	AL58576	1	Bracket	-
3	AL34593	1	Selective Control Valve	-
4	L34378	1	O-Ring	-
5	L40447	1	Plate	-
6	L34376	1	Valve Stack	-
7	L17658	1	Washer	-
8	R53218	1	Needle Roller	-
9	34M7023	1	Spring Pin	3 X 24 mm, 3X24MM
10	T32547	1	Drive Shaft	-
11	T32143	1	Snap Ring	-
12	R53801	1	Spring	-
13	R53800	1	Screw	-
14	L62225	1	Set Screw	(SUB FOR AR61165)
15	L61890	1	Ball Joint Retainer	-
16	R26552	1	Ball	-
17	19M7603	1	Screw	M6 X 20, M6X20
18	L39172	1	Cover	-
19	T32132	1	Rack	-
20	AL34595	1	Selective Control Valve	-
21	08H4405	2	Cap Screw	5/16" X 8-1/4", 5/16"X8-1/4"
21	19H2043	2	Cap Screw	(WITH ONE SELECTIVE CONTROL VALVE) 5/16" X 3-1/2", 5/16"X3-1/2"
21	19H2344	2	Cap Screw	(WITH 2 SELECT.CONTROL VALVES) 5/16" X 6", 5/16"X6"
22	AR61165	1	Lever	(ORDER L62225, L61890)

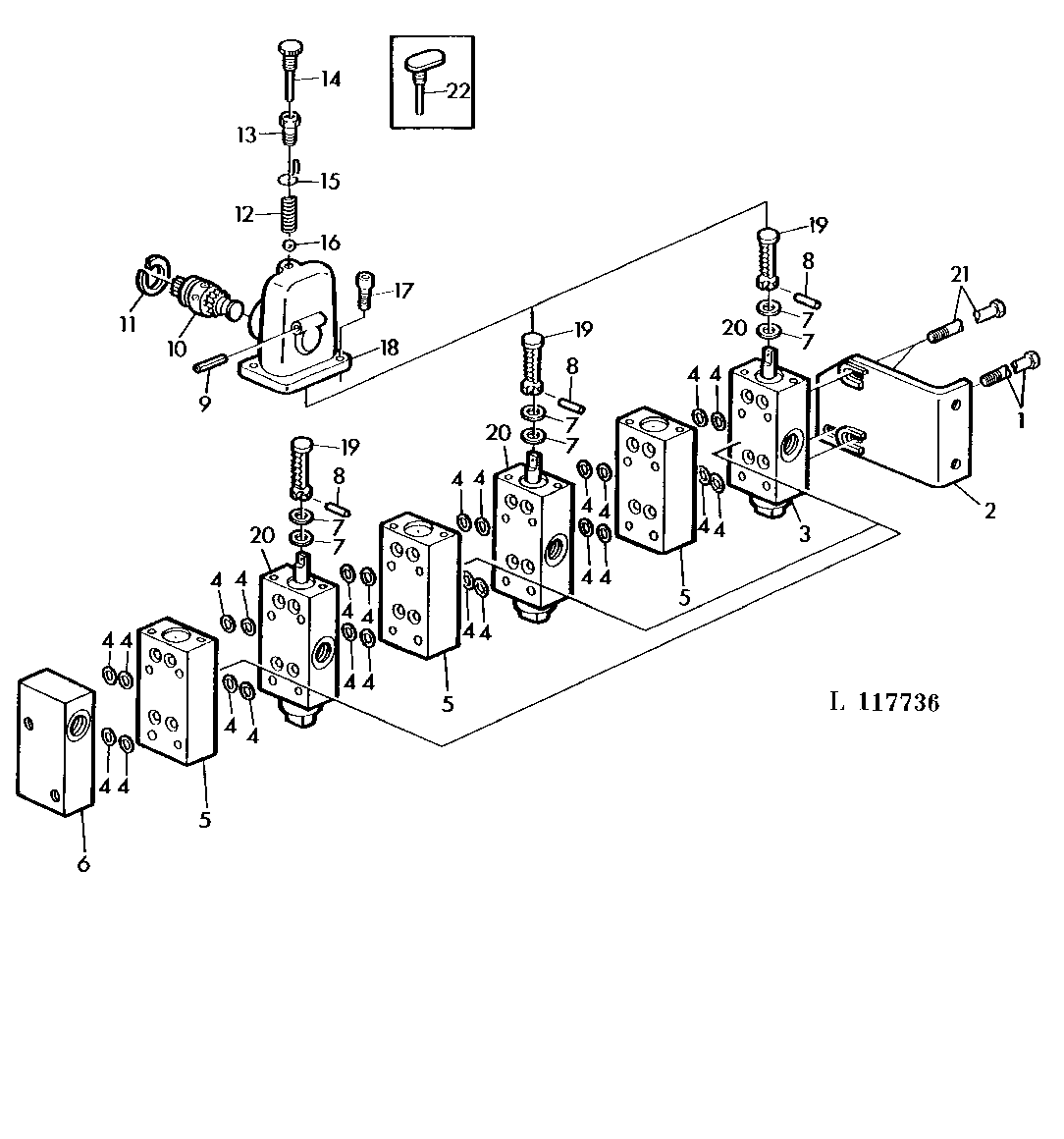

SINGLE-ACTING SELECTIVE CONTROL VALVE (SPOOL TYPE) MC1 CAB

Нет текстового описания
