HITCH "AXLA" (WITH INCREASED LIFTING CAPACITY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7030	4	Cotter Pin	5 X 40 mm, 5X40MM
2	24M7052	2	Washer	25 X 44 X 4 mm, 25X44X4MM
3	AL40970	1	Extension	LH
3	AL40969	1	Extension	RH
4	34M7053	2	Spring Pin	10 X 40 mm, 10X40MM
5	L41148	2	Pin Fastener	-
6	R69166	2	Pin	(SUB FOR L56181)
7	L41817	2	Pin Fastener	-
8	L39106	2	Pin Fastener	-
9	14M7319	4	Lock Nut	M12, M12
10	12H301	4	Lock Washer	1/2", 1/2"
11	14H1040	1	Nut	1/2", 1/2"
12	AL40972	1	Loom	-
13	19H1792	2	Cap Screw	1/2" X 1", 1/2"X1"
14	19H2284	2	Cap Screw	3/8" X 7/8", 3/8"X7/8"
15	AL40973	1	Hitch	-
16	AL34093	1	Pin Fastener	-
17	L37153	1	Lubrication Fitting	-
18	24M7240	6	Washer	13 X 25 X 3 mm, 13X25X3MM
19	19H1777	2	Cap Screw	1/2" X 1-3/4", 1/2"X1-3/4"
20	L36587	2	Strap	-
21	19M8300	1	Screw	M8 X 40, M8X40
22	L55854	1	Spacer	-
23	14M7327	2	Lock Nut	M8, M8
24	19M8122	4	Cap Screw	M12 X 85, M12X85
25	19M7185	1	Cap Screw	M8 X 60, M8X60
26	AL55316	1	Hitch	(SUB FOR AL33859)
27	L39133	1	Pin Fastener	-
28	AL33860	1	Case	-
29	T22848	4	SPRING LOCKING PIN	-
30	L36546	2	Pin	-
31	L36545	2	Pin	-
32	24M7147	2	Washer	20 X 34 X 3 mm, 20X34X3MM
33	L36457	2	Pin Fastener	-
34	AL33688	2	Set Screw	-
35	L36460	2	Nut	1"
36	58M5573	2	Lubrication Fitting	(SUB FOR L37155)
37	AL36941	2	Brace	-
38	11H211	2	COTTER PIN	1/8" X 3/4", 1/8"X3/4"

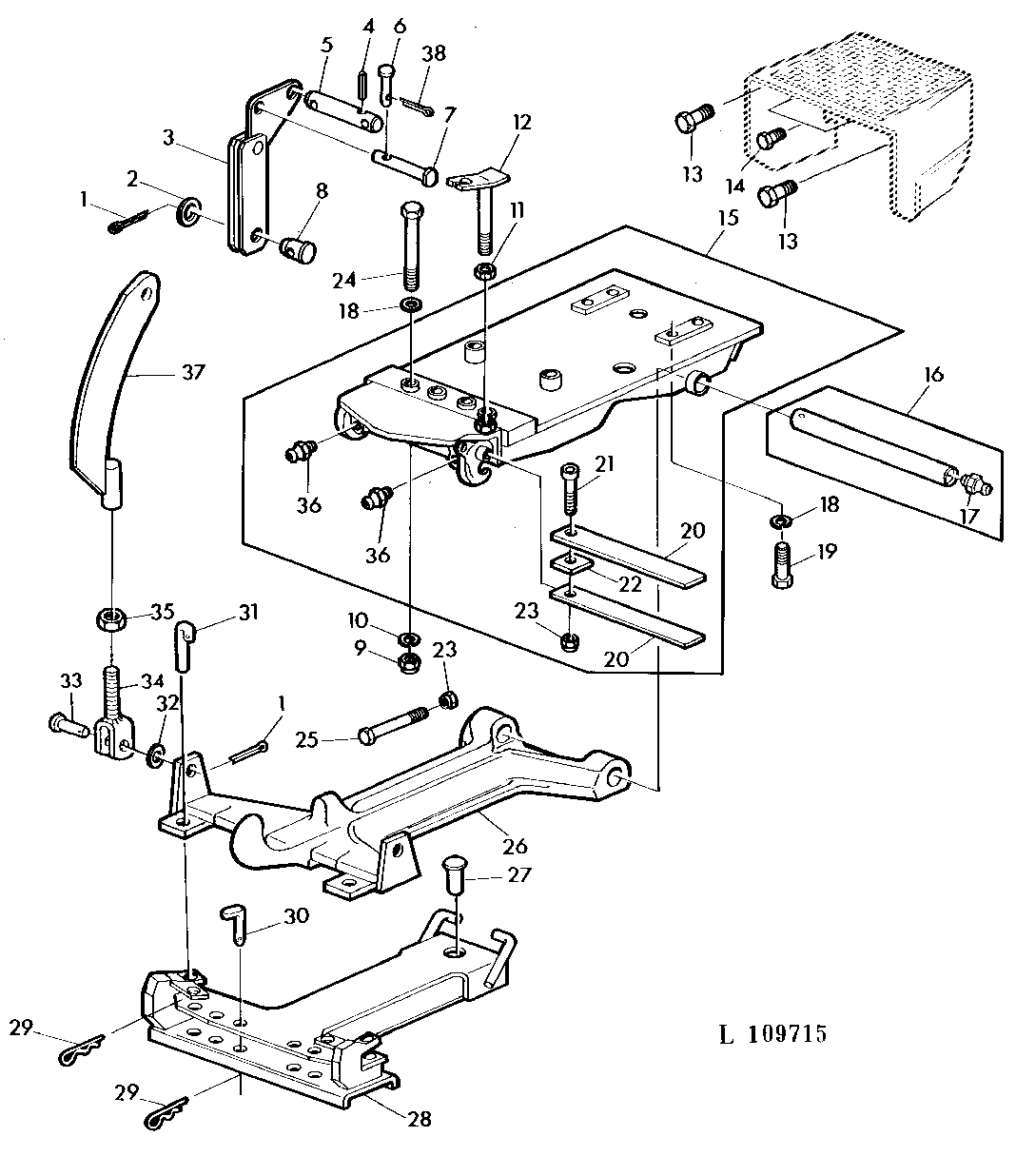

HITCH "AXLA" (WITH INCREASED LIFTING CAPACITY)
