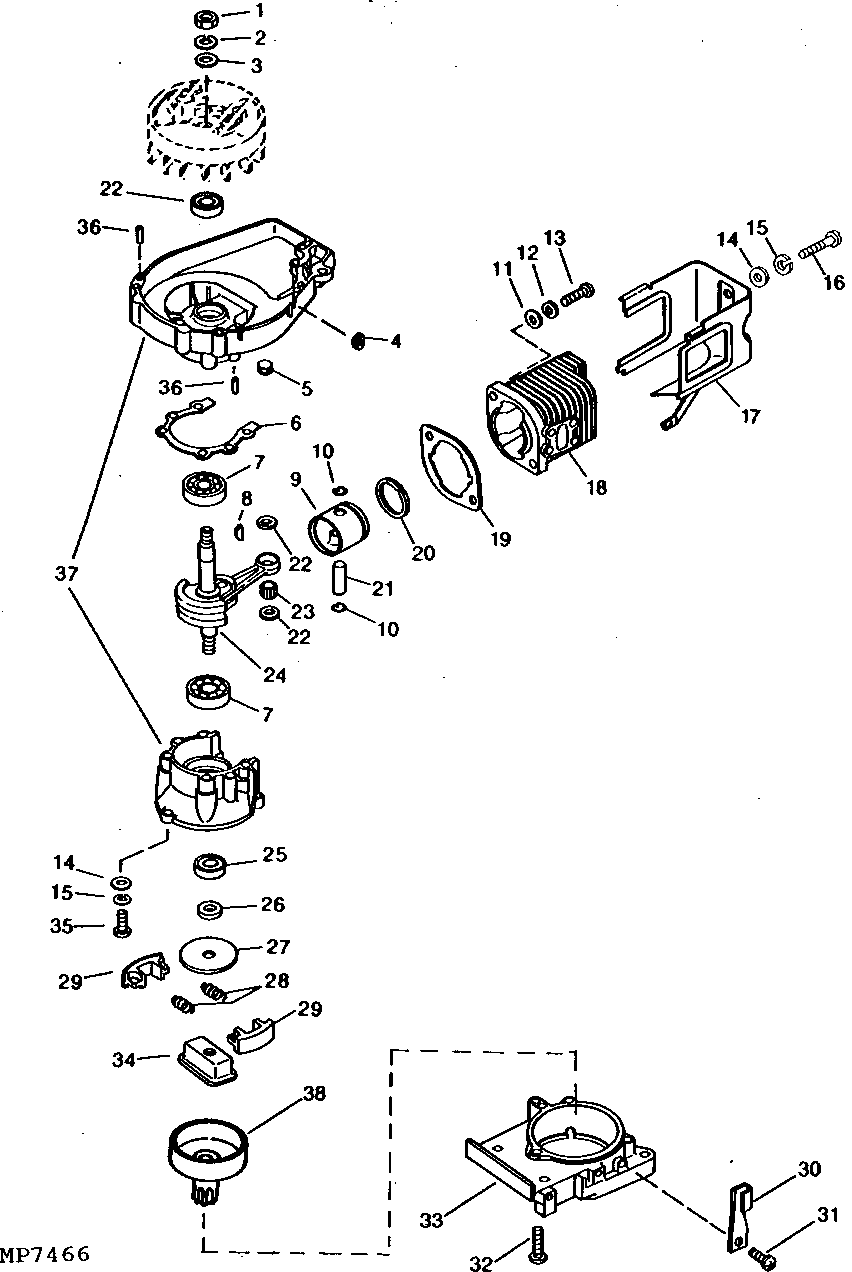

CRANKCASE, CRANKSHAFT, CYLINDER AND PISTON [C02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7145	1	Nut	M8, (SUB FOR PT13308)
2	12M7065	1	Lock Washer	8.100 MM
3	24M7095	1	Washer	8.400 X 15 X 1.600 MM
4	PT13235	1	GROMMET	-
5	PT13182	1	PLUG	-
6	-	1	Part 6	(SUB AM115445 GASKET KIT) (SUB FOR PT6485 AND PT15196)
7	AM54510	2	BALL BEARING	-
8	PT6756	1	SHAFT KEY	-
9	PT6747	1	PISTON	(SUB FOR PT6477)
10	PT2457	2	SNAP RING	-
11	24M7105	1	Washer	6 X 12 X 1.600 MM
12	12M7006	1	Lock Washer	6.100 MM
13	21M7267	1	Screw	M6 X 20
14	24M7027	5	Washer	5.300 X 10 X 1 MM
15	12M7064	5	Lock Washer	5.100 MM
16	21M7278	1	Screw	M5 X 10
17	PT13186	1	COVER	-
18	PT9892	1	CYLINDER	-
19	-	1	Part 19	(SUB AM115445 GASKET KIT) (SUB FOR PT6489 AND PT15196)
20	PT2460	1	PISTON RING	-
21	PT3153	1	PISTON PIN	-
22	PT6479	2	SPACER	-
23	PT6481	1	NEEDLE BEARING	-
24	PT13179	1	CRANKSHAFT	-
25	PT6484	2	SEAL	-
26	PT6754	1	WASHER	-
27	PT6550	1	PLATE	-
28	PT2532	2	SPRING	-
29	AM115400	2	SHOE	(SUB FOR PT2531)
30	PT13236	1	CLIP	-
31	PT9757	1	SCREW, WITH WASHER	-
32	PT13314	3	BOLT	-
33	PT13244	1	HOUSING	-
34	PT13243	1	HUB	-
35	21M7143	4	Screw	M5 X 30
36	M67441	1	DOWEL PIN	-
37	PT13181	1	CRANKCASE	-
38	PT13242	1	DRUM	CLUTCH
..	AM115435	1	GASKET KIT	ENGINE REBUILD (SUB FOR PT15187)

CRANKCASE, CRANKSHAFT, CYLINDER AND PISTON [C02]
