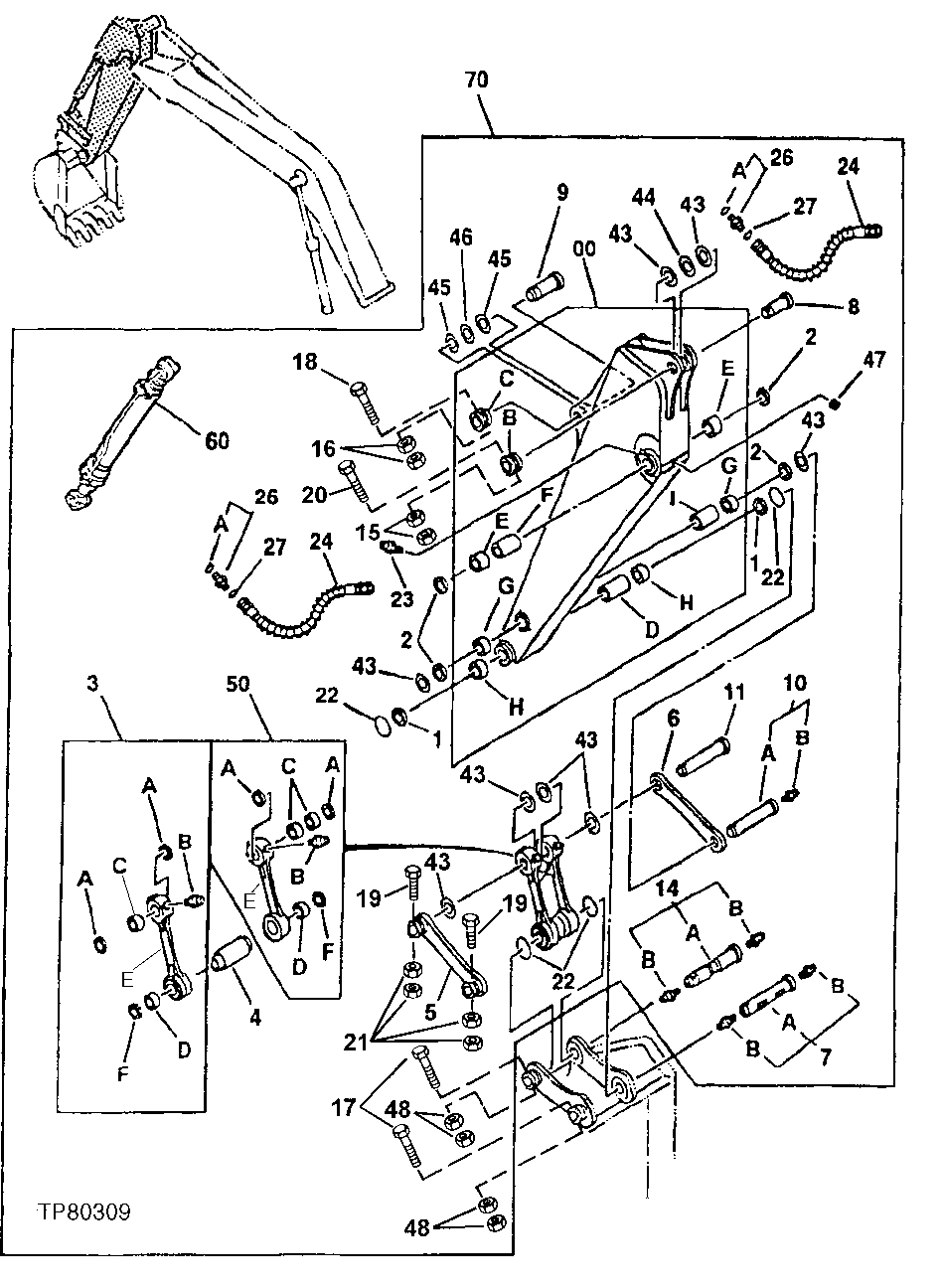

Long Arm Assembly

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AP34757	1	Arm	(SUB FOR AP35216)
1	TH102446	2	Seal	-
2	TH104472	4	Seal	-
3	9726994	1	Link	(SUB FOR AT127210)
4	4154425	1	Spacer	(SUB FOR T104348)
5	AP34756	1	Link	-
6	3076177J	1	Cover	SUB FOR P64846
7	-	1	Part 23	(AT214389 NLA)
8	T144753	1	Pin	70.924 X 228 mm (2.792" X 8.976"), (SUB FOR T104324, FFSB108069)
9	-	1	Part 27	(P64849 NLA)
10	-	1	Part 28	(AT214382 OR 9096918 NLA)
11	-	1	Part 31	(P64850 NLA)
14	AT186164	1	Pin Fastener	(SUB FOR 9140207 ) (ALSO ORDER TH100074)
15	14M7276	2	Nut	M16
16	14M7276	2	Nut	M16
17	19M7954	2	Cap Screw	M16 X 150
18	19M8351	1	Cap Screw	M16 X 125, (SUB FOR 19M7941)
19	19M7907	5	Screw	M20 X 140
20	19M8043	1	Cap Screw	M16 X 140
21	14M7277	10	Nut	M20
22	AT349466	4	Seal	Split O-Ring
22	4089028	4	O-Ring	Standard O-Ring
22	T379473	4	V-Ring Seal	V O-Ring
23	TH100074	2	Lubrication Fitting	-
24	4296269	2	Hydraulic Hose	(SUB FOR AP34850)
26	A853166	2	Adapter Fitting	(SUB FOR AT107392 OR 4189619)
27	T77858	2	O-Ring	-
43	4366692R	8	Thrust Washer	(SUB FOR TH105593, 4366692 OR AT214030)
44	4367410R	1	Thrust Washer	(SUB FOR TH105592, 4367410 OR AT214040)
45	4075357	2	Washer	66 X 120 X 1 mm (2.598" X 4.724" X 0.039"), (SUB FOR TH108944)
46	4075358	1	Washer	66 X 120 X 2 mm (2.598" X 4.724" X 0.079"), (SUB FOR TH108955)
47	4367410R	1	Thrust Washer	(SUB FOR TH105592, AT214040 OR 4367410)
48	14M7276	4	Nut	M16
50	9726946	1	Link	(SUB FOR AT127209)
60	-	1	Part 64	Bucket See Separate Page For Detail
70	AP35217	1	Arm	Includes Long Arm, Bucket Cylinder, Hoses and Linkage, WHOLE GOODS
0A	-	1	Part 2	-
0B	T104251	1	Bushing	-
0C	P60783	1	Bushing	-
0D	4123815	1	Spacer	(SUB FOR TH104461)
0E	3079346	2	Bushing	(SUB FOR P64823)
0F	P64845	1	Spacer	-
0G	T104249	2	Bushing	-
0H	T139507	2	Bushing	-
0I	T104250	1	Spacer	-
3A	TH104472	2	Seal	-
3B	TH100074	1	Lubrication Fitting	-
3C	AT126136	2	Bushing	(SUB FOR AT213966)
3D	T139496	1	Bushing	(SUB FOR AT213842, AT126188 OR T104344)
3E	-	1	Part 18	-
3F	TH102446	1	Seal	-
7A	AT186163	1	Pin Fastener	(SUB FOR AT213760)
7B	TH100074	2	Lubrication Fitting	-
10A	T144755	1	Pin	-
10B	TH100074	1	Lubrication Fitting	-
14A	AT186164	1	Pin Fastener	(SUB FOR AT213761)
14A	AT186164	1	Pin Fastener	(SUB FOR AT213761)(USE UNTIL EXHAUSTED)
14B	TH100074	2	Lubrication Fitting	-
26A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
50A	TH104472	2	Seal	-
50B	TH100074	1	Lubrication Fitting	-
50C	AT126136	2	Bushing	(SUB FOR AT213966)
50D	T139496	1	Bushing	(SUB FOR AT213842, AT126188 OR T104344)
50E	9726946	1	Link	(SUB FOR AT126075 AND AT127209)
50F	TH102446	1	Seal	-
